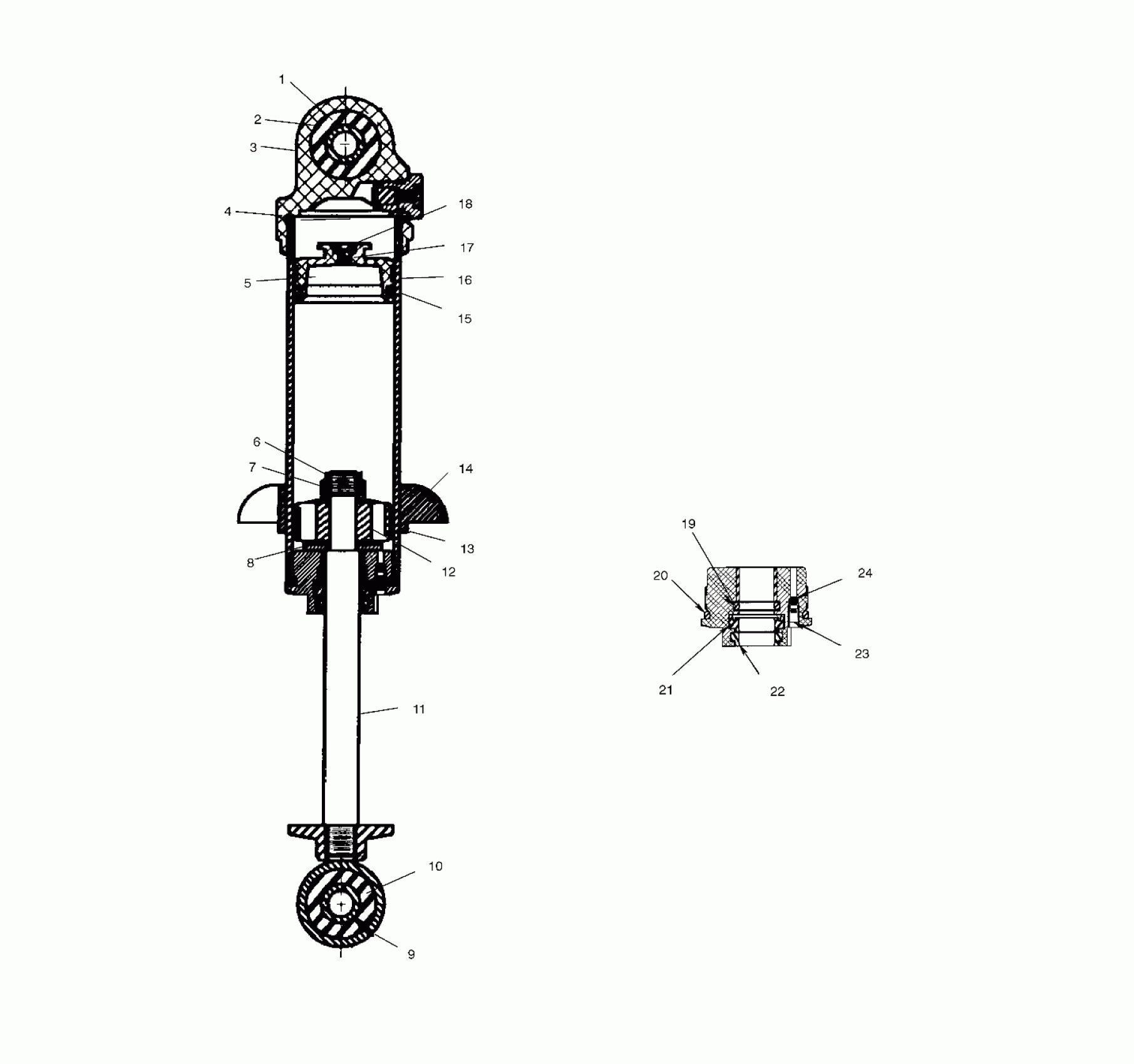

Polaris 440 XCR - 099SX4CS FOX SHOCK - FRONT TRACK - 099SX4CS (4948444844c002) Diagram

#

Description
Price

-

SHOCK,FR.TRACK

7041706

Unavailable

1

BUSHING-EYELET.35X.575X.595FOX

1500182

Unavailable

2

BUSHING, (1.24)

5020640

Unavailable

3

BODY-CAP,LOW PROFILE,FOX

1500183

Unavailable

4

O-RING,.103W-1.549ID

1500108

$10.99

5

PISTON

1500011

$59.99

6

NUT,LOCK

1500016

$12.79

7

BUSHING,BACKUP

1500015

$6.76

8

PLATE,TOP OUT

1500017

$20.22

9

EYELET,BASE

1500164

$93.08

10

BUSHING-EYELET.35X.575X.595FOX

1500184

Unavailable

11

SHAFT

1500153

$51.99

12

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

13

DAMPER,PISTONRING,FOX

1500002

$31.99

14

RETAINER,SPRING

1500156

Unavailable

15

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

16

RING,PISTON,FLOATING,FOX

1500006

$19.99

17

O-RING,DRUM OUTER

1500022

Unavailable

18

Screw

1500018

$5.56

19

O-RING INNER (10)

1500021

$10.99

20

O-RING,(10).103W-1.299ID

1500020

$10.63

21

WIPER INNER Substituted by 1500266

1500025

$24.27

22

WIPER,CLR,OUTER

1500024

Unavailable

23

Screw

1500070

$6.39

24

BALL, (FOX)

1500071

$6.76
