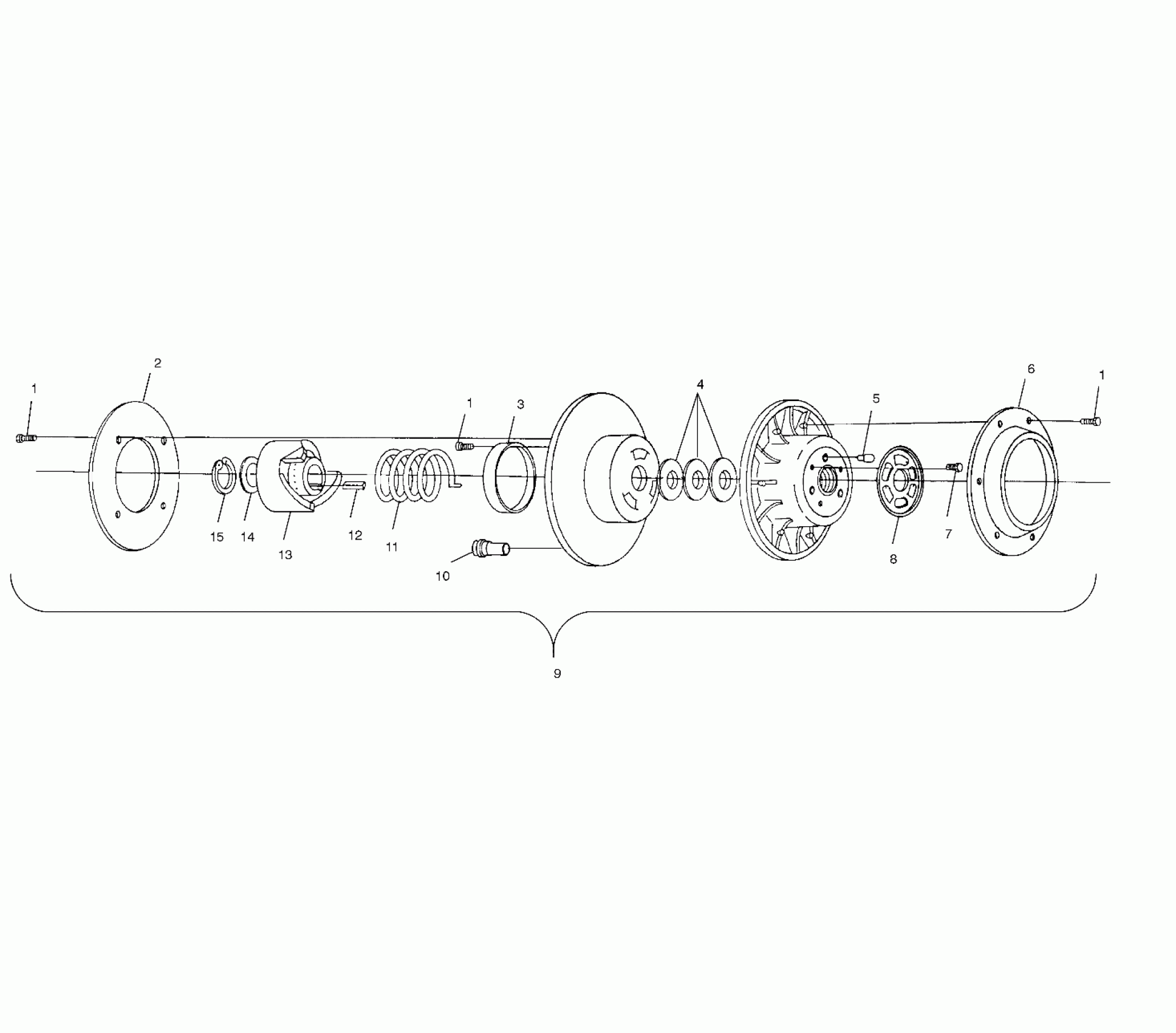

Polaris 440 XCR - 099SX4CS DRIVEN CLUTCH - 099SX4CS (4948444844b014) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE

5210749

$30.99

3

BUSHING,D.U.

3569803

Unavailable

4

WASHER(10) (.03)

7556804

Unavailable

4

WASHER(10) (.02)

7555898

Unavailable

4

WASHER(10) (.025)

7556076

Unavailable

4

WASHER,DRIVE CLUTCH(10) (.075)

7555865

Unavailable

5

PIN, CLUTCH

5020653

$34.99

6

CAP DRIVEN

5230101

Unavailable

7

SCREW(10)

7515133

$3.99

8

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

9

CLUTCH,DRVN,R8,SVR/BLU 1.438 Substituted by 1321941 (Incl. 1-15)

1322207

Unavailable

10

BUTTON-RAMP,(10)

5430466

$6.46

11

SPRING,CLUTCH,SVR/BLUE

7041646

$69.99

12

KEY SQUARE(10)

7721103

$5.65

13

DESC NOT_AVAILABLE

5630854

Unavailable

14

WASHER(10)

7556804

$1.49

15

RING,RETAINING(10)

7714804

$9.59
