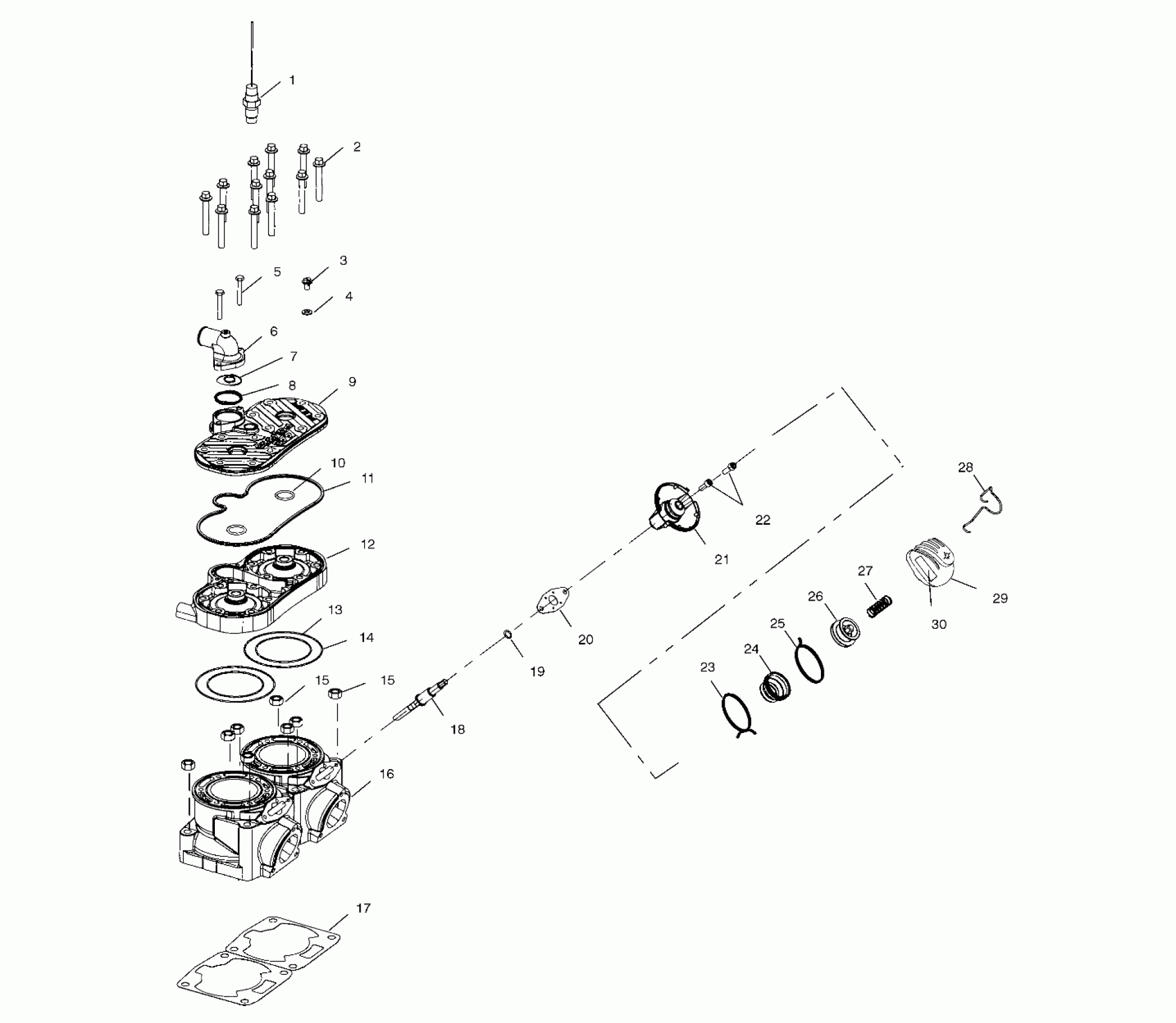

Polaris 440 XCR - 099SX4CS CYLINDER - 099SX4CS (4948444844c008) Diagram

#

Description
Price

1

SENSOR,TEMP,93 DEG.C.

4110254

Unavailable

2

SCREW(10)

7517281

$8.99

3

SCREW,(10) Substituted by 7517565

7517266

$15.99

4

WASHER,FLAT,(10)

7555998

$1.49

5

SCREW

7516818

$5.59

6

COVER,THERMOSTAT Substituted by 5630910

5630857

Unavailable

7

WASHER,FLAT,SS.,(10)

7556050

Unavailable

8

O-RING

5411429

$3.71

9

COVER,HD,66MM,FIRE RED,SNOW Substituted by 5630985-093

5630642-093

Unavailable

10

O-RING

5411411

$1.49

11

SEAL,HD.CVR,MOLDED

5411182

Unavailable

12

HEAD,CYL.66MM.(SNO)

3022033

Unavailable

13

O-Ring

5411199

$10.51

14

O-RING

5411201

Unavailable

15

NUT(10)

7547013

$1.99

15

NUT(10)

7547013

$1.99

16

CYLINDER,66MM.

3022065

$474.99

17

GASKET,CYL.BASE,66MM & 70.5MM

5811599

$34.99

18

VALVE,EXHAUST

5131754

Unavailable

19

O RING

5411432

$4.84

20

GASKET,EXHAUST VALVE

5830143

Unavailable

21

HOUSING ASM,EV,W/BUSHING

1201745

Unavailable

22

SCREW,(10)

7517431

$5.59

23

CLIP,RETAINING

7080720

$7.90

24

BELLOWS,RUBBER,EV,440 BASE

5411407

Unavailable

25

STRAP,CABLETIE(10)

7080692

$1.67

26

PISTON,BELLOWS

5432833

Unavailable

27

SPRING,COMP,EV,BLUE

7041704-01

$34.99

28

CLIP,RETAIN.EXH.VALVE

7080663

$3.83

29

COVER,EXH.VALVE,FIXEDSTYLE

5432697

Unavailable

30

DECAL,"PAT.PENDING"

7074922

Unavailable
