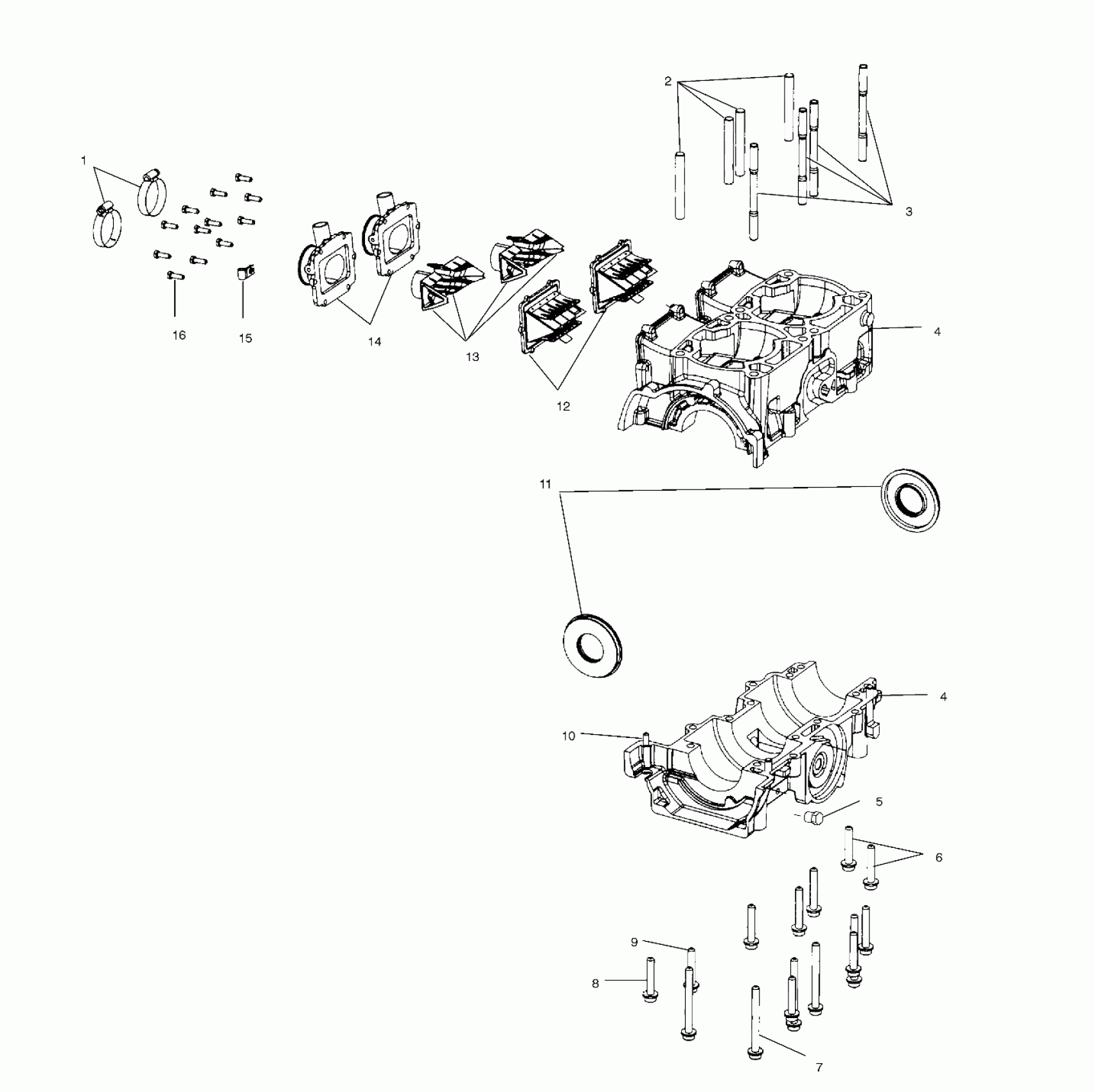

Polaris 440 XCR - 099SX4CS CRANKCASE - 099SX4CS (4948444844c007) Diagram

#

Description
Price

1

CLAMP

7080408

Unavailable

2

STUD,CYL.FLG,81.0MM SPS Substituted by 5132196

5131767

$20.48

3

STUD,CYL.FLG,118.5MM SPS Substituted by 5132197

5131766

$21.27

4

KIT,CRANKCASE (Incl. 2,3,5-10)

2201134

Unavailable

4

KIT,CRANKCASE (Incl. 2,3,5-10)

2201134

Unavailable

5

PLUG Substituted by 7052311

7051529

$15.99

6

SCREW,M8X1.25X55

7517448

$2.39

7

SCREW

7517244

Unavailable

8

SCREW

7516825

$5.59

9

SCREW

7517214

$7.03

10

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

11

SEAL,FLANGED

5411394

$29.99

12

REED VALVE ASM Substituted by 1201843

1201747

Unavailable

13

STUFFER,REED,75.5MM(34MMCARB)

5432681

$3.81

14

ADAPTER,CARB

1253160

Unavailable

15

CLAMP,HOSE(10)

7080683

$2.39

16

SCREW,(10)

7517398

$3.19
