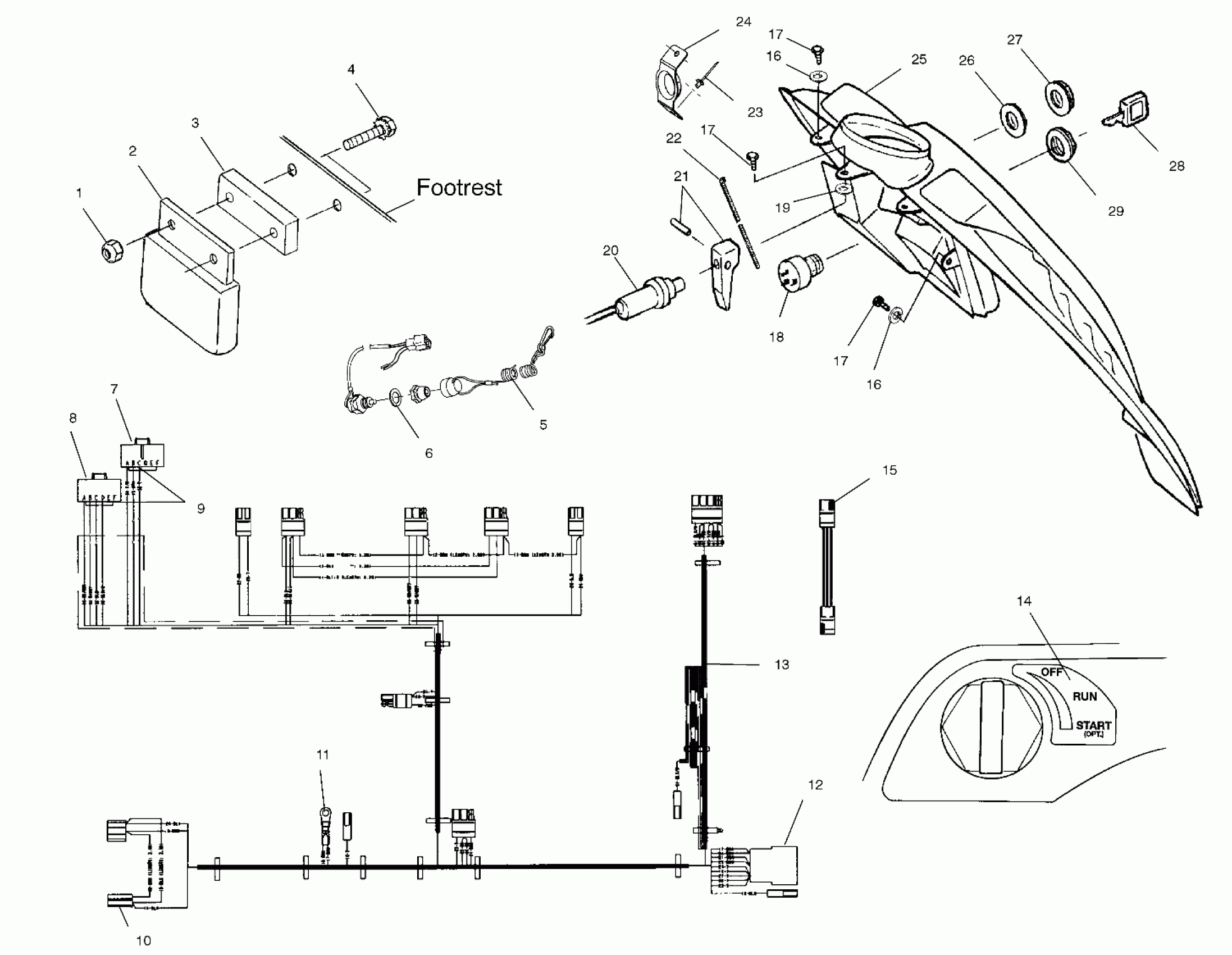

Polaris 440 XCR - 099SX4CS CONSOLE - 099SX4CS (4948444844a013) Diagram

#

Description
Price

1

NUT(10)

7541925

$1.49

2

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

3

SPACER,REGULATOR

5211573

Unavailable

4

BOLT(10)

7512031

$2.23

5

SWITCH-TETHER,HYBRID

4010187

Unavailable

6

BUSHING, MACH.(10)

7558707

$4.79

7

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

8

HOUSING-CONNECTOR,PAC#12064860

4010194

$15.99

9

SOCKET-PACKARD#12047767

4010192

Unavailable

10

HOUSING

4020063

$3.19

11

Terminal, Ring

4020092

Unavailable

12

Housing w/Receptacle

4020057

$3.51

13

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

2460703

$204.76

14

DECAL-CONSOLE,IGNITION,NON ES

7078036

Unavailable

15

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

16

WASHER(10)

7558203

$3.19

16

WASHER(10)

7558203

$3.19

17

SCREW(10)

7517441

$2.39

17

SCREW(10)

7517441

$2.39

17

SCREW(10)

7517441

$2.39

18

KIT,IGN.SWITCH

2200358

$76.89

19

WASHER,NYLON

7555932

$2.39

20

CABLE,CHOKE (Incl. 21,27)

7080760

Unavailable

21

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

22

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

23

RIVET, POP(50)

7621330

$1.49

24

GUIDE-RECOIL

5243049

$9.70

25

CONSOLE,HYB,XCR,BLK Substituted by 5433695

5433069

Unavailable

26

WASHER-LOCK(10)

7571610

$3.99

27

NUT,CHOKE

5432944

$8.79

28

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

29

NUT,IGNITION

7547035

$8.79
