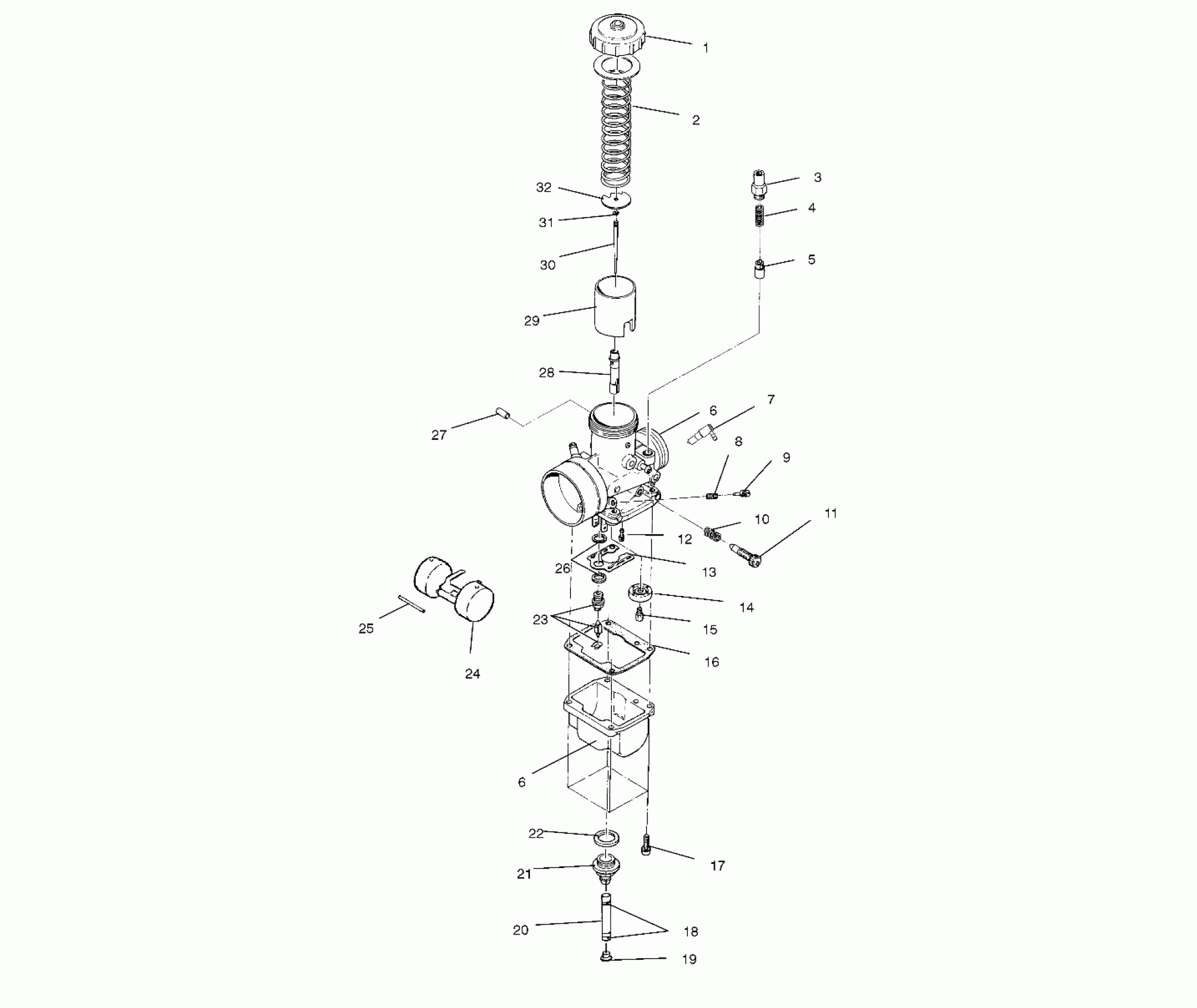

Polaris 440 XCR - 099SX4CS CARBURETOR - 099SX4CS (4948444844c011) Diagram

#

Description
Price

1

TOP ASM (Incl. Gasket)

3130184

$32.37

2

SPRING,THROTTLE

3130444

Unavailable

3

HOLDER,GUIDE

3130199

$28.32

4

SPRING,PLUNGER

3130006

$8.89

5

PLUNGER ASM, STARTER

3130328

$32.37

6

CARBURETOR,34MM,(440XCR ) (Incl. 1-17,21-32)

1253213

Unavailable

6

CARBURETOR,34MM,(440XCR ) (Incl. 1-17,21-32)

1253213

Unavailable

7

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

8

SPRING,AIR ADJUST

3130012

$8.89

9

SCREW,AIR

3130011

$19.99

10

SPRING,THROTTLE ADJ.

3130010

$8.89

11

SCREW,THROTTLE STOP

3130009

$19.99

12

JET,PILOT,#45(10) (#45)

3130068

$8.89

13

PLATE

3130580

Unavailable

14

Ring

3130576

Unavailable

15

JET,MAIN,HX.HD#360(10) (# 360)

3130139

$7.99

16

GASKET,FLOATCHAMBER

3130578

$20.22

17

SCREW

3130056

$3.19

18

CLAMP,HOSE(10)

7080544

Unavailable

19

PLUG,TRAP

5431893

$12.94

20

FUEL LINE, 5 FT.

8450045-153

Unavailable

21

NIPPLE

3130573

$32.37

22

O RING

3130239

Unavailable

23

VALVE ASM,NEEDLE

3130643

$56.65

24

FLOAT ASM.

3130758

Unavailable

25

PIN, FLOAT

3130361

$8.89

26

WASHER,PACKING Substituted by 3130047

3130759

$4.84

27

CAP

3130595

Unavailable

28

JET,NEEDLE(P-4) (286)

3130609

Unavailable

29

VALVE,THROTTLE,(2.0) Substituted by 3130464 (2.0)

3130375

Unavailable

30

JET NEEDLE Substituted by 3130329 (J8-6DH07)

3130158

Unavailable

31

E-RING,(10)

3130508

$6.46

32

PLATE

3130027

$9.70
