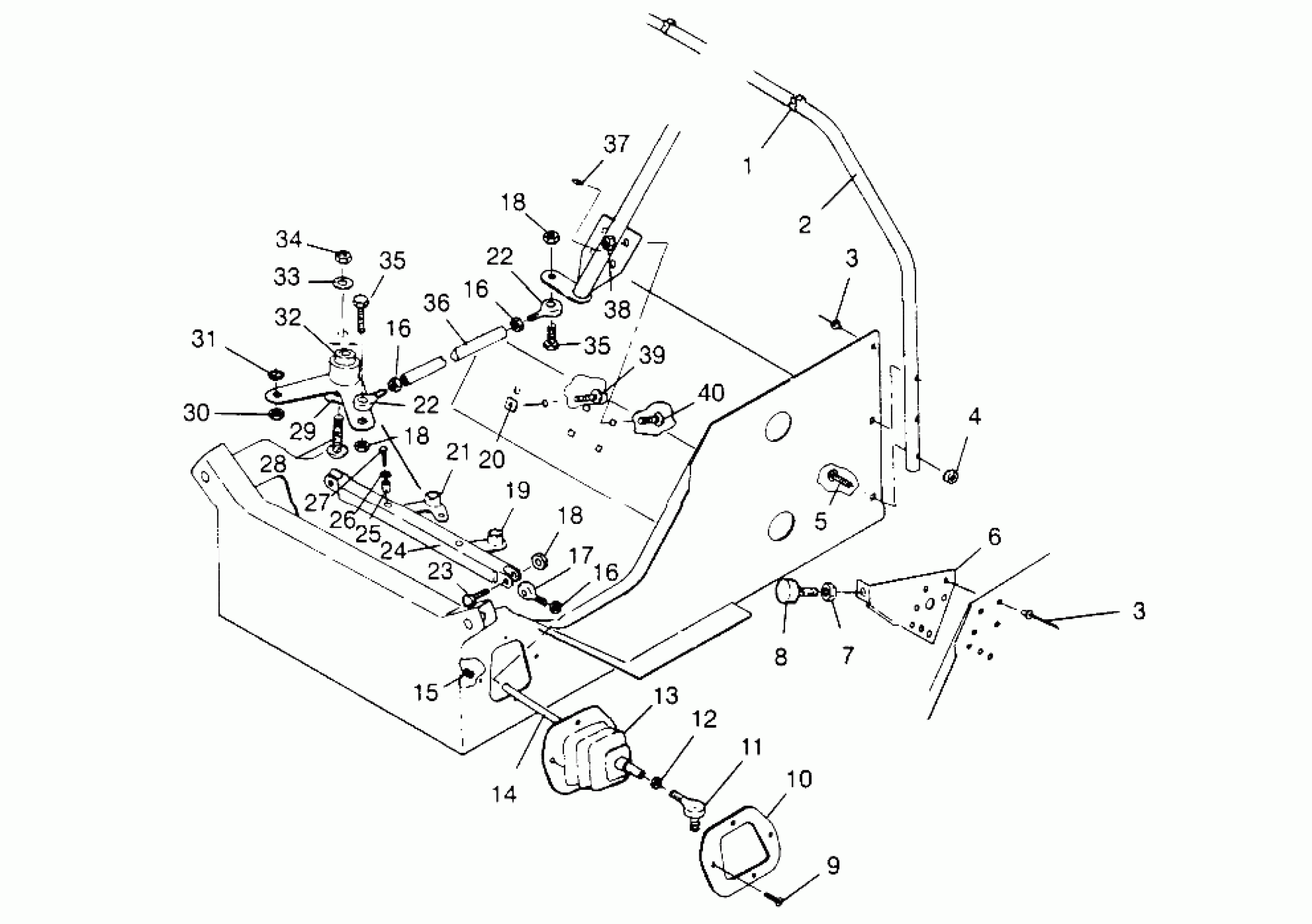

Polaris 440 XCR - 0961660 STEERING 440 XCR 0961660 (4932113211B005) Diagram

#

Description
Price

1

CLIP(10)

7080278

$2.63

2

HOOP,STEERING

1011513-067

Unavailable

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

NUT-LOCK(10)

7542122

$1.49

5

BOLT-CARRIAGE(10)

7512275

$3.99

6

STOP, TORQUE

1012411-067

Unavailable

7

NUT, JAM(10)

7542432

$3.99

8

MT,RUBBER,TORQUE STOP

3110041

Unavailable

9

SCREW(10)

7512082

Unavailable

10

PLATE,BOOT

5211574-067

Unavailable

11

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

12

NUT HEX(10)

7542401

$2.39

13

BOOT,TIE ROD

5410954

Unavailable

14

TIEROD,BLK.

5020794-067

Unavailable

15

INSERT, BRASS(10)

7541932

$3.67

16

NUT

7542424

$1.49

16

NUT

7542424

$1.49

16

NUT

7542424

$1.49

17

ROD END, LH.

7060164

$48.56

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

18

NUT LOCK(10)

7542403

$3.99

19

IDLER ARM ASM.

1822242

$26.38

20

SPEED NUT(10)

7670021

$6.99

21

ARM,PITMAN ASM.

1822241

Unavailable

22

ROD END, RH.

7060165

$48.56

22

ROD END, LH.

7060164

$48.56

22

ROD END, RH.

7060165

$48.56

22

ROD END, LH.

7060164

$48.56

23

BOLT(10)

7515528

$8.79

24

RACK ASM,STRG.

1822245

$74.39

25

SPACER

5010342

$15.43

26

WSHR-.813X.406X.105-Y

7555832

$2.39

27

BOLT(10)

7515415

$1.49

28

BOLT(10)

7512551

Unavailable

29

WASHER,WAVE(10)

7555735

$3.99

30

NUT-LOCK(10)

7542439

$1.49

31

O-RING

5410955

Unavailable

32

SPACER

5010341

Unavailable

33

WASHER(10)

7555883

$3.99

34

NUT, LOCK,(10)

7542503

$10.39

35

BOLT(10)

7512404

$3.99

35

BOLT(10)

7512404

$3.99

36

ROD,DRAG LINK

5333321

Unavailable

37

FITTING,LUB/VEN(10)

7080561

$4.79

38

NUT-5/16-18 NYLOK-Y

7542324

$1.49

39

BOLT-CARRIAGE(10)

7512263

$3.99

40

BOLT(10) Substituted by 7512377

7512394

Unavailable
