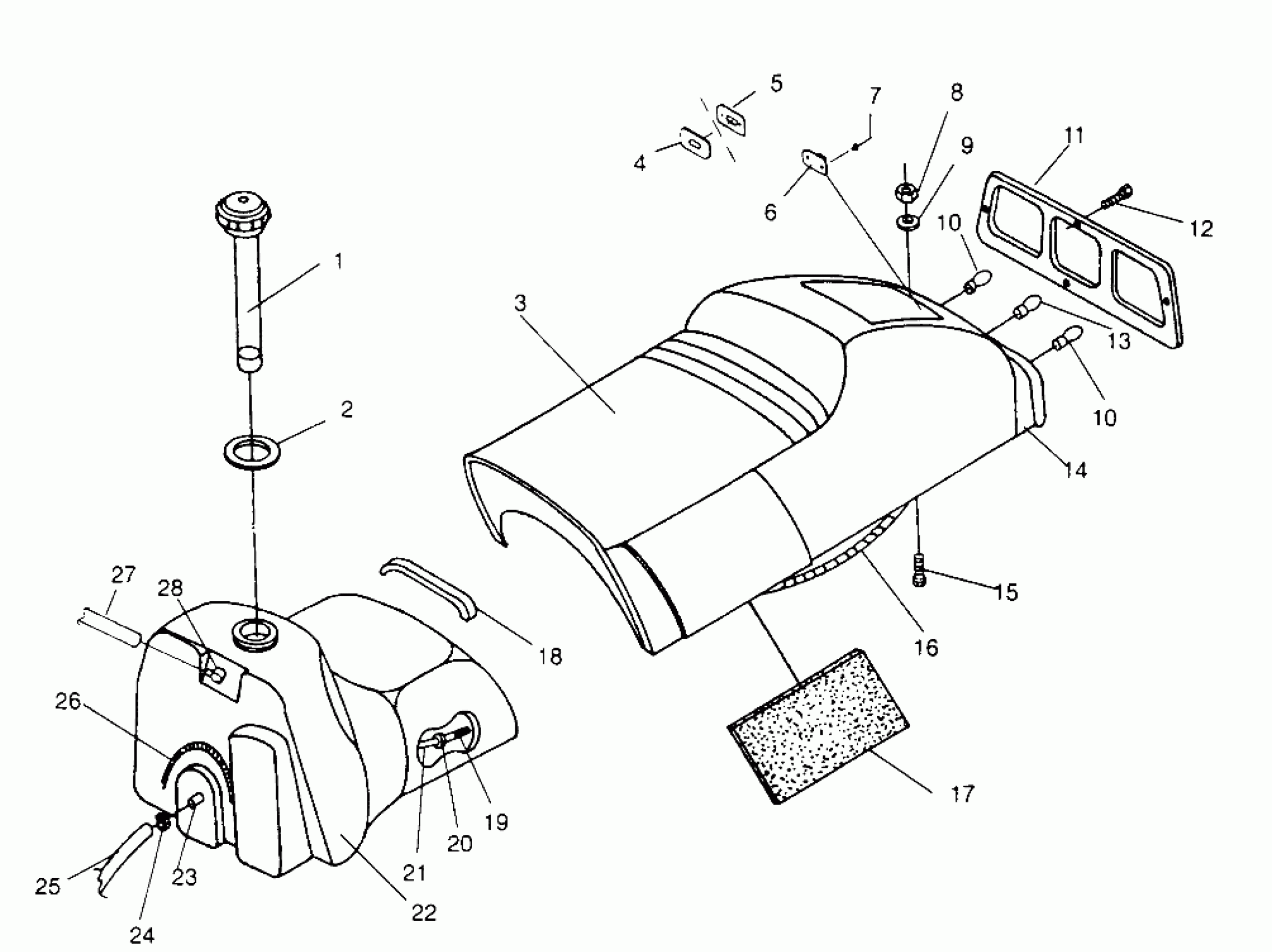

Polaris 440 XCR - 0961660 SEAT and GAS TANK 440 XCR 0961660 (4932113211A007) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE

2511247

Unavailable

2

GASKET, GAS CAP

5810513

$8.89

3

SEAT ASM,(SP) (Incl. 10-14, 16)

2681886

$399.99

3

COVER,SEAT,(SP)

2681887

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

7

RIVET(50)

7621337

$1.49

8

NUT-LOCK(10)

7542122

$1.49

9

WASHER,TOOTHED,DISH(10)

7571630

Unavailable

10

BULB,TAILLIGHT(10)

4030024

$4.84

10

BULB,TAILLIGHT(10)

4030024

$4.84

11

LENS,TAILLIGHT

5430423

Unavailable

12

SCREW(10)

7511840

Unavailable

13

Bulb, Brakelight

4030045

Unavailable

14

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

15

BOLT(10)

7512193

$2.39

16

Harness, Taillight

2460399

Unavailable

17

FOAM,SEAT PAD

5431981

Unavailable

18

CUSHION,TANK H.D.

5420126

Unavailable

19

FUELPICKUP,W/STRAINER

7052037

$12.94

20

RING, COMPRESSION(10)

7080402

$1.60

21

DESC NOT_AVAILABLE

8360109-600

Unavailable

22

KIT,FUELTANK,BLK.(SP) NOTE: PN 2200765 includes a unique gas cap. DO NOT order Ref. 1 (PN 2511247) if ordering Ref. 22 (PN 2200765).

2200765

Unavailable

23

FITTING - OUTLET(10)

7052023

$24.99

24

HOSE CLAMP, RED (Red)

7080003

$1.49

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

26

SPRING,TANK,(10)

7042020

$13.75

27

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

28

FITTING,90 DEG,1/8,(10)

7052095

$4.79
