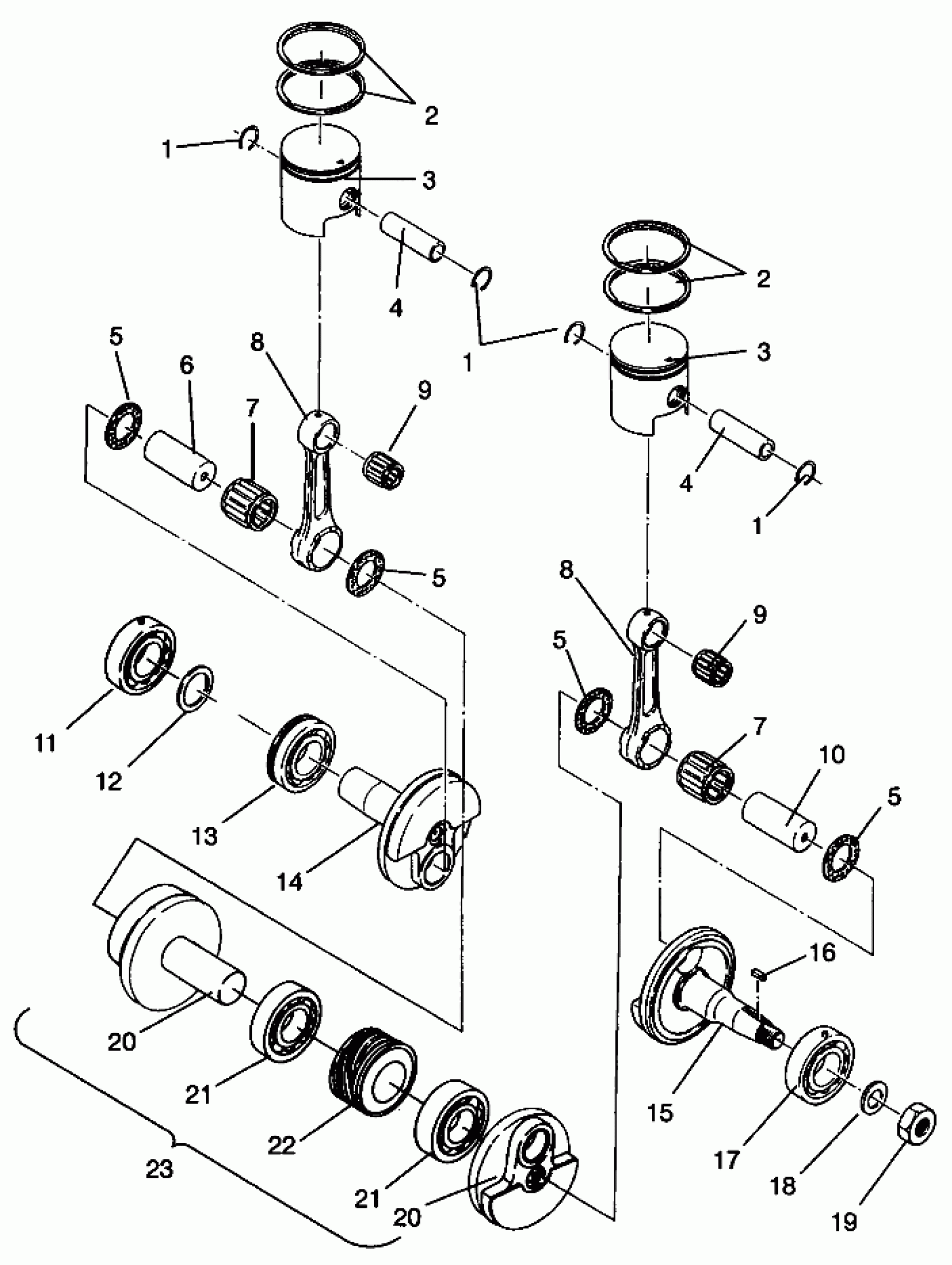

Polaris 440 XCR - 0961660 PISTON and CRANKSHAFT 440 XCR 0961660 (4932113211C012) Diagram

#

Description
Price

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

2

RING,PISTON (Standard)

3085046

Unavailable

2

RING,PISTON (Standard)

3085046

Unavailable

3

PISTON (Standard)

3085045

Unavailable

3

PISTON (Standard)

3085045

Unavailable

4

PIN, PISTON

3083858

$23.99

4

PIN, PISTON

3083858

$23.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

Pin, Crank, 2

3083456

Unavailable

7

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

7

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK

3083233

$36.41

11

BALL BEARING

3085205

Unavailable

12

Spacer

3085203

$6.39

13

BALL BEARING

3085204

Unavailable

14

CRANKSHAFT 3 (PTO Side)

3085202

Unavailable

15

CRANKSHAFT #1 (Mag Side)

3084702

Unavailable

16

KEY Substituted by 3081543

3080130

Unavailable

17

BEARING, BALL

3084598

Unavailable

18

WASHER Substituted by 3084457

3084704

Unavailable

19

NUT

3083093

$19.99

20

CRANKSHAFT 2 (Center) (Incl. 6, 10)

3083713

$583.49

20

CRANKSHAFT 2 (Center) (Incl. 6, 10)

3083713

$583.49

21

BEARING, BALL

3084586

$44.99

21

BEARING, BALL

3084586

$44.99

22

GEAR,DRIVE,OIL PUMP

3083782

$102.13

23

CRANKSHAFT ASM. (Incl. 5-8, 10-15, 17, 20, 21)

3085211

Unavailable
