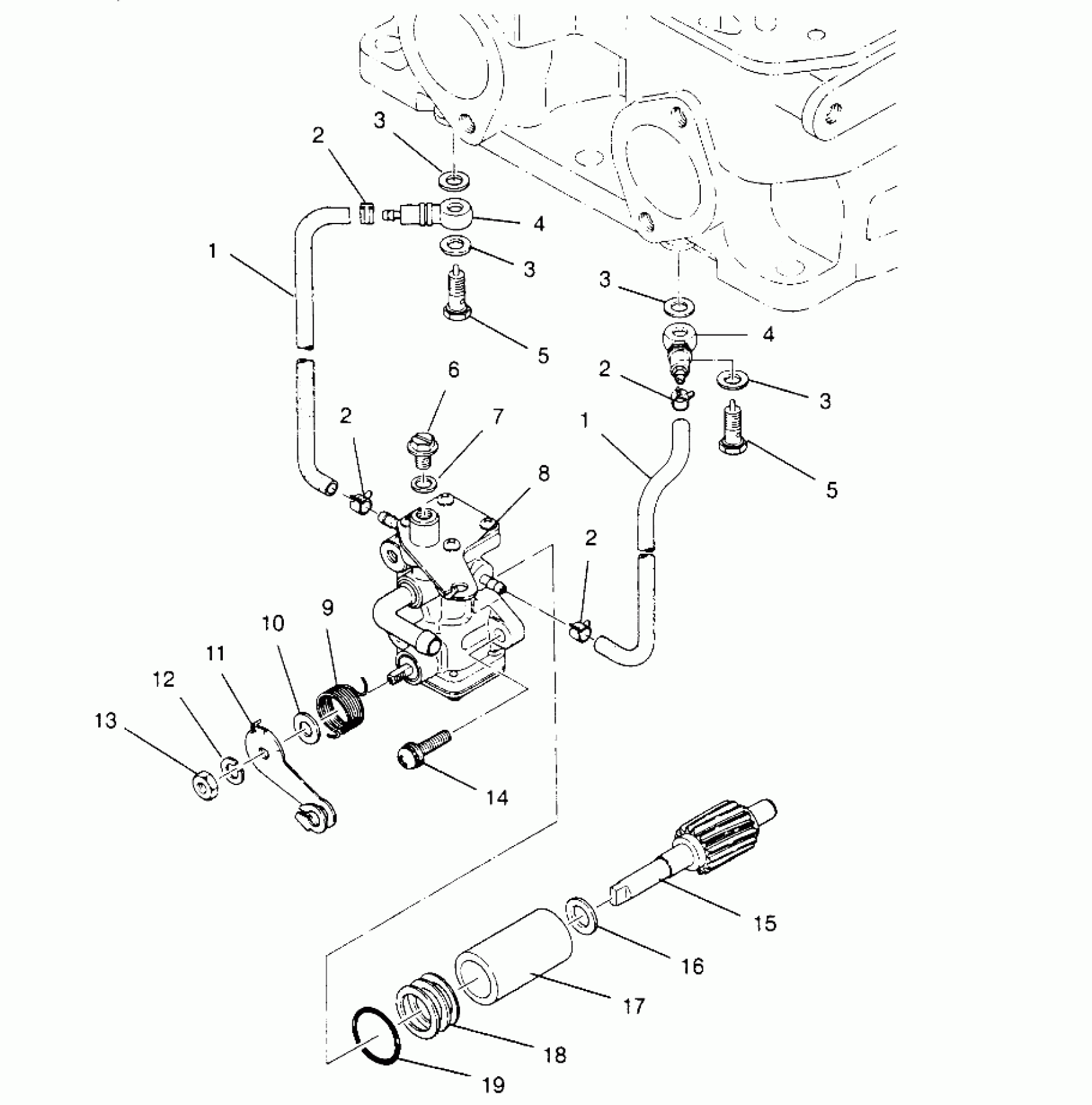

Polaris 440 XCR - 0961660 OIL PUMP 440 XCR 0961660 (4932113211D001) Diagram

#

Description
Price

1

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

1

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

2

CLAMP-HOSE,(10)

3083141

$1.49

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

WASHER(10) Substituted by 7555998

3083138

Unavailable

4

VALVE, CHECK

3083894

Unavailable

4

VALVE, CHECK

3083894

Unavailable

5

BOLT-BANJO

3083137

Unavailable

5

BOLT-BANJO

3083137

Unavailable

6

SCREW-AIR VENT

3083125

Unavailable

7

PACKING(10)

3083126

$4.03

8

PUMP, OIL (Incl. 6-13, 19)

3085047

Unavailable

9

SPRING-RETURN

3083123

Unavailable

10

COLLAR, CAMSHAFT(10)

3083445

$2.39

11

LEVER,CONTROL

3085048

Unavailable

12

WASHER-SPRING(10)

3083121

$299.99

13

NUT(10)

3083120

$3.19

14

SCREW&WASHER,(10)

3083783

$2.39

15

GEAR,SMALL,OIL PUMP

3083131

$89.99

16

SPACER

3083130

$1.59

17

BUSHING(OIL PUMP)

3083353

$31.99

18

SPACER #3

3083673

Unavailable

18

SPACER #2

3083672

Unavailable

18

SPACER #1

3083671

Unavailable

19

O RING

3083127

Unavailable
