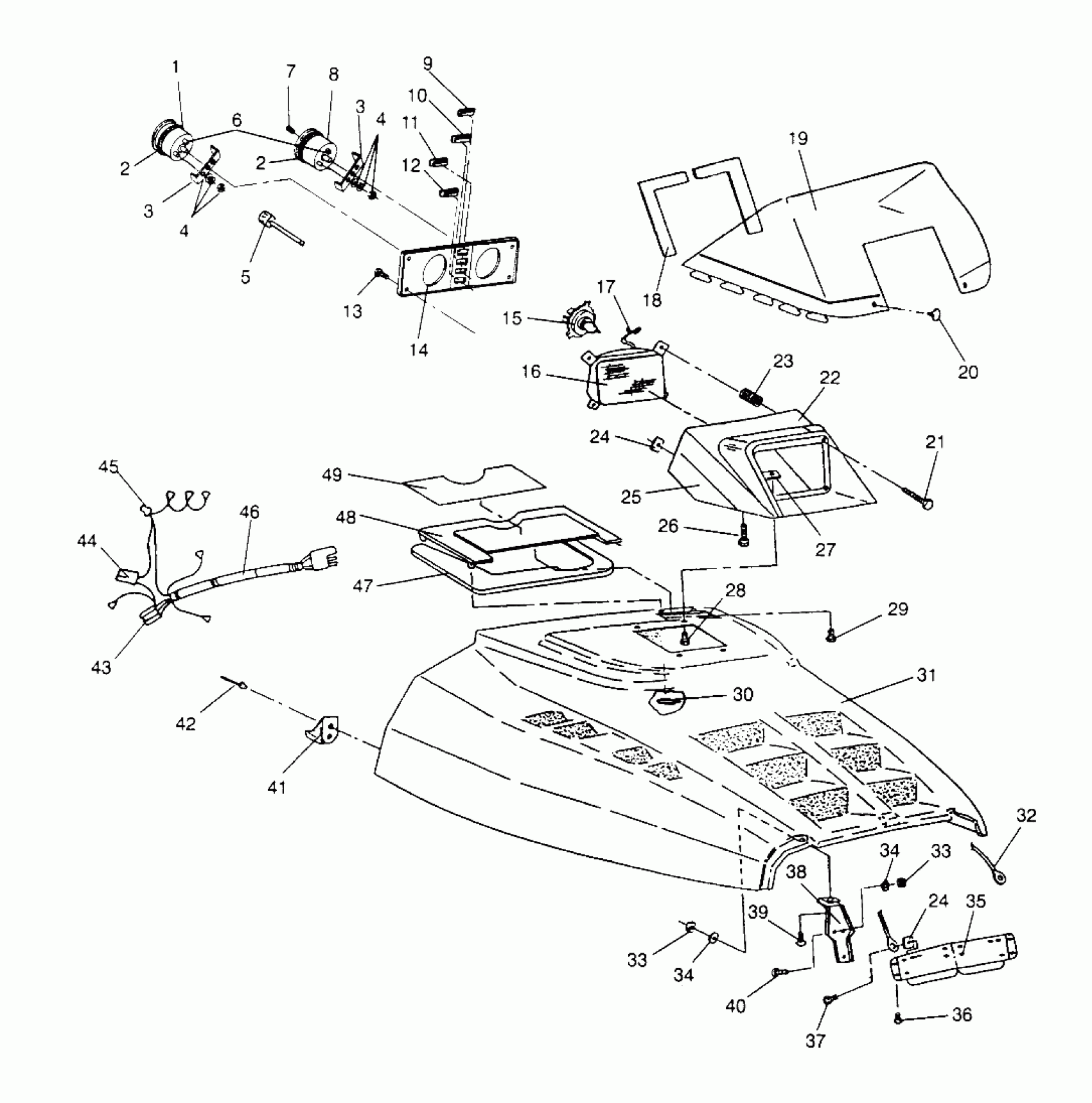

Polaris 440 XCR - 0961660 HOOD 440 XCR 0961660 (4932113211A010) Diagram

#

Description
Price

1

BULB TAILLIGHT(10)

4030015

$4.03

1

TACHOMETER,BACKLIT(2P) (Incl. 3, 4)

3280149

Unavailable

2

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

2

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

3

BRKT,SPEEDO/TACH

3280153

Unavailable

3

BRKT,SPEEDO/TACH

3280153

Unavailable

4

WASHER,FLAT,(10)

3280157

$2.39

4

Nut

3280158

Unavailable

4

WASHER,SPLIT LOCK

3280156

$1.49

4

WASHER,FLAT,(10)

3280157

$2.39

4

Nut

3280158

Unavailable

4

WASHER,SPLIT LOCK

3280156

$1.49

5

CABLE,SPEEDO.

3280094

$60.70

6

BULB,TAILLIGHT(10)

4030024

$4.84

7

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

8

SPEEDOMETER,BACKLIT (Incl. 3, 4)

3280148

Unavailable

9

INDICATOR'TEMP'WARN.

4040011

$32.37

10

INDICATOR'OIL/BRK'WARN.

4040034

$12.17

11

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

12

INDICATOR,'ACC'WARN.

4040014

Unavailable

13

SCREW,SCKT.HD.CAP(10)

7512008

Unavailable

14

BEZEL, INST.

5430924

Unavailable

15

BULB,QUARTZ.H/L,INDY

2870448

$24.99

16

HEADLIGHT ASM.

4032040

Unavailable

17

RETAINER,H/L BULB

4032063

Unavailable

18

PAD, W/S, LH

5810414

Unavailable

18

PAD, W/S

5810415

Unavailable

19

WINDSHIELD,LOW,WHITE

5431712

Unavailable

20

RIVET,(PLASTIC LOK)(50) Substituted by 7621509

7621505

$1.19

21

SCREW, ADJ.(10)

4032003

Unavailable

22

HSG,INST.TOP,WHITE

5430923-133

Unavailable

23

SPRING-ADJ

4032002

Unavailable

24

NUT, SPEED(10)

7670056

Unavailable

24

NUT, SPEED(10)

7670056

Unavailable

25

HSG,INST.BOTT,WHITE

5430922-133

Unavailable

26

SCREW(10)

7512009

Unavailable

27

NUT, SPEED(10)

7670057

$1.49

28

SCREW, SEMS(10)

7512283

$3.99

29

SCREW(10)

7511840

Unavailable

30

RETAINER,WINDSHIELD,(10)

5410970

$1.49

31

HOOD,ASM(XCR 440) (Incl. Foil, Foam)

2631731-133

$599.99

32

CABLE,HD.RETAINER

7080360

$24.27

33

NUT-LOCK(10)

7542122

$1.49

33

NUT-LOCK(10)

7542122

$1.49

34

WASHER,WROUGHT(10)

7558302

$1.59

34

WASHER,WROUGHT(10)

7558302

$1.59

35

PLATE,RE-INF.,(HD.)

5222105

$49.51

36

SCREW(10)

7511861

Unavailable

37

SCREW(10)

7511989

Unavailable

38

HINGE ASM,HD,WHITE

2635005-133

$15.70

39

BOLT-CARRIAGE(10)

7512263

$3.99

40

BOLT(10)

7512193

$2.39

41

CUP, HOOD LATCH,(10)

5430733

$4.84

42

RIVET(50)

7621334

$1.49

43

HOUSING

4020052

Unavailable

44

Housing

4020115

$1.59

45

HOUSING

4020114

Unavailable

46

HARNESS,HEADLIGHT

2460382

Unavailable

47

SEAL, INTAKE

5810597

Unavailable

48

PANEL ASM,INTAKE,WHITE (Incl. 49)

2620091-133

Unavailable

49

DECAL,DASH WARN,PARKBRAKE

7075364

Unavailable
