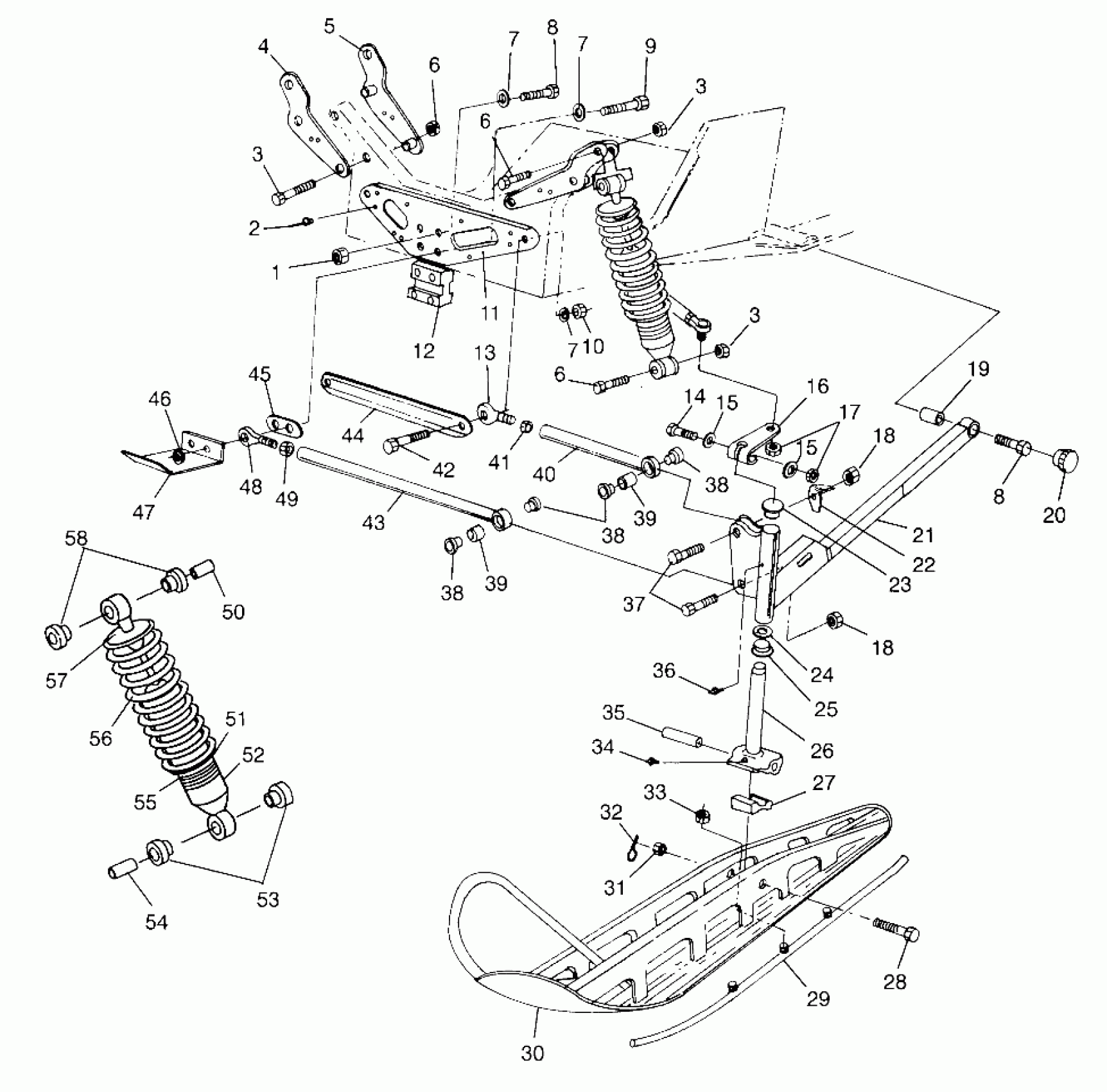

Polaris 440 XCR - 0961660 FRONT SUSPENSION and SKI 440 XCR 0961660 (4932113211B002) Diagram

#

Description
Price

1

NUT, NYLOCK(10)

7542525

$4.79

2

RIVET-3/16-.090-.290

7661637

$1.49

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

3

BOLT(10) Substituted by 7515415

7515515

Unavailable

4

MT,RH,SHOCK EXT.BLK.

1012053-067

Unavailable

4

MT,LH,SHOCK EXT.BLK.

1012052-067

Unavailable

5

PLATE,SHOCK MT.EXT,BLK.

5211449-067

Unavailable

6

NUT, NYLOC(10)

7542453

Unavailable

6

NUT, NYLOC(10)

7542453

Unavailable

6

NUT, NYLOC(10)

7542453

Unavailable

7

WASHER THRUST(10)

7558702

$1.59

7

WASHER THRUST(10)

7558702

$1.59

7

WASHER THRUST(10)

7558702

$1.59

8

BOLT(10) Substituted by 7512515

7512545

Unavailable

8

BOLT(10) Substituted by 7512515

7512545

Unavailable

9

BOLT(10)

7512678

$19.99

10

NUT, LOCK,(10)

7542503

$10.39

11

BRACE,LOW.RAD.ROD

5240936-067

$74.59

12

BLOCK,RADIUS ROD

5131141

$25.86

13

ROD END,7/16 RH,HD.

7061003

Unavailable

14

BOLT(10) Substituted by 7517583

7515491

Unavailable

15

WASHER(10) Substituted by 7555832

7555851

Unavailable

15

WASHER(10) Substituted by 7555832

7555851

Unavailable

16

ARM,STRG,BLK.

5131242

Unavailable

17

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

18

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

18

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

19

SPACER

5010347

Unavailable

20

PLUG,CAP(10)

7080616

Unavailable

21

ARM,TRLG,LH

1822268

Unavailable

21

ARM,TRLG,RH

1822269

Unavailable

22

STOP,LH,STEERING

5241207-067

Unavailable

22

STOP,RH,STEERING

5241208-067

Unavailable

23

BUSHING-FLANGE

3573909

$2.39

24

WASHER SPECIAL(10)

7556509

$1.59

25

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

26

SPINDLE,BLK,HARDENED

6230075-067

Unavailable

27

STOP, RUBBER

5521276

Unavailable

28

BOLT(10)

7515462

$8.79

29

SKAG,PR.,CARBIDE

2870693

$69.99

30

SKI WELD, BLK

1820332-067

Unavailable

31

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

32

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

33

NUT-5/16-18 NYLOK-Y

7542324

$1.49

34

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

35

BUSHING,PIVOT,(10)

5010158

$19.99

36

ZERK,FITTING,THREADED(10)

7080433

$1.49

37

BOLT(10) Substituted by 7515540

7515492

$4.62

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

38

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

39

BUSHING-RADIUS ROD,(10)

5010127

$7.99

39

BUSHING-RADIUS ROD,(10)

5010127

$7.99

40

ROD,RAD,UPPER

1822320-067

Unavailable

41

NUT JAM(10)

7542520

$2.39

42

BOLT(10)

7512551

Unavailable

43

ROD,RAD,LOW.

1822321-067

Unavailable

44

BRACE,UP.RAD.ROD,BLK

5241705-067

$27.70

45

STRAP,SPACER BOTTOM

5211345

$12.99

46

NUT FLEX,(10)

7542703

Unavailable

47

BRACE,LOW.PAN,BLK.

5241031-067

Unavailable

48

ROD END,1/2 RH,HD.

7061004

Unavailable

49

NUT-JAM(10)

7542711

$2.39

50

BUSHING, (1.16 IN.)

5020613

Unavailable

51

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

52

SHOCK,IFS,FOX

7041401

Unavailable

53

BUSHING,SHOCK (.295)

5431727

Unavailable

54

BUSHING, (1.34 IN.)

5020612

Unavailable

55

RING, RETAINING(10)

7710424

$0.63

56

SPRING,COMP,.BLK.

7041396-067

Unavailable

57

RETAINER,SPRING,SLOTTED

5020618

$24.99

58

BUSHING,SHOCK,.220 Substituted by 1500137 NOTE: For Fox Shock replacement parts see pages C6-C8.

5431540

$24.99
