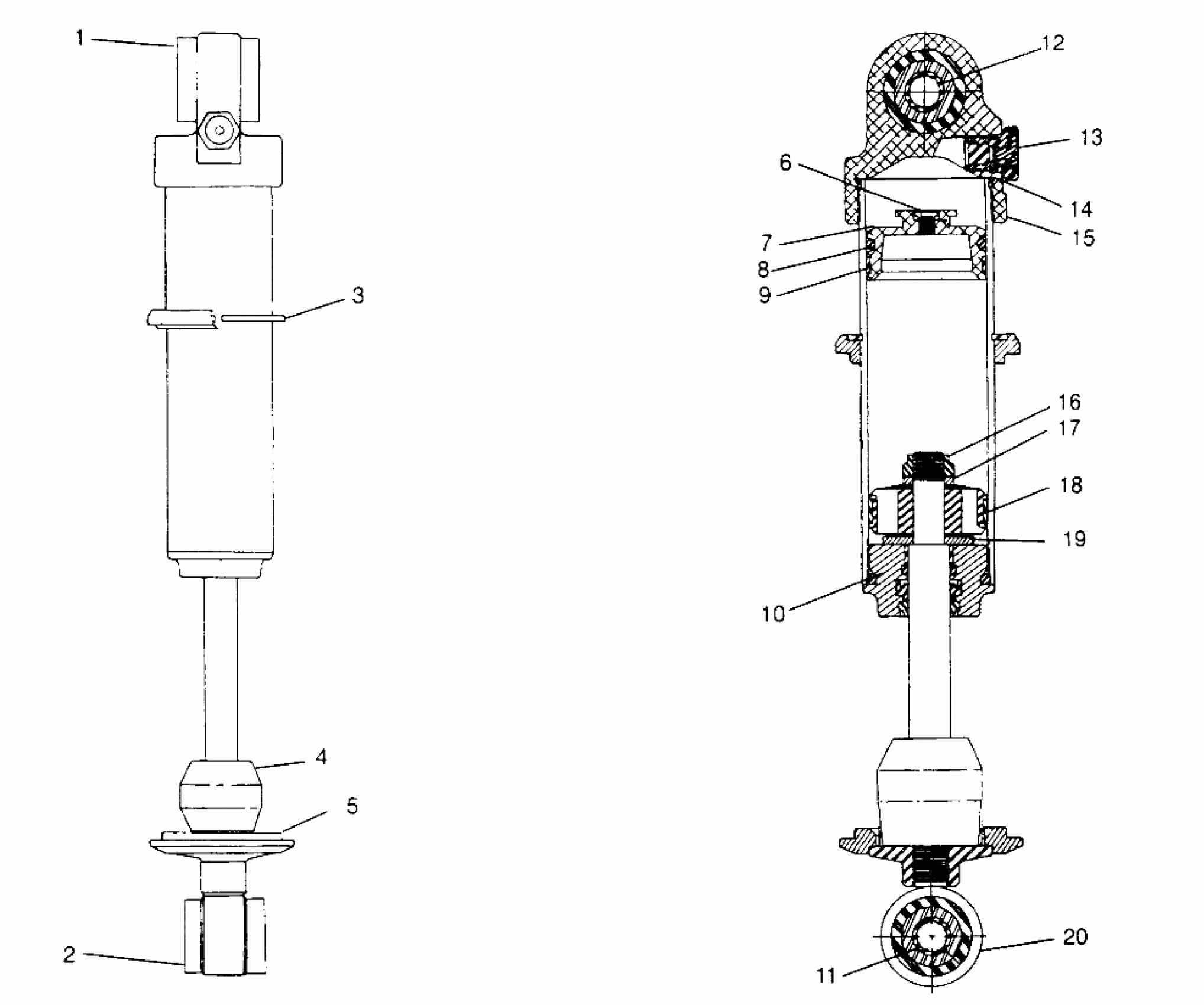

Polaris 440 XCR - 0961660 FOX SHOCK - IFS 440 XCR 0961660 (4932113211C006) Diagram

#

Description
Price

-

SHOCK,IFS,FOX

7041401

Unavailable

1

BUSHING,SHOCK (.295)

5431727

Unavailable

2

BUSHING,SHOCK,.220 Substituted by 1500137 (.220)

5431540

$24.99

3

RING, RETAINING(10)

7710424

$0.63

4

BUMPER,JOUNCE

5410855

$39.19

5

RETAINER,SPRING,SLOTTED

5020618

$24.99

6

Screw

1500018

$5.56

6

O-RING,DRUM OUTER

1500022

Unavailable

7

PISTON

1500011

$59.99

8

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

9

RING,PISTON,FLOATING,FOX

1500006

$19.99

10

O-RING,(10).103W-1.299ID

1500020

$10.63

10

O-RING INNER (10)

1500021

$10.99

10

Screw

1500070

$6.39

10

BALL, (FOX)

1500071

$6.76

10

WIPER INNER Substituted by 1500266

1500025

$24.27

10

WIPER,CLR,OUTER

1500024

Unavailable

10

BEARING ASM,(.900 W/BLEED)

1500090

Unavailable

11

BUSHING, (1.16 IN.)

5020613

Unavailable

12

BUSHING, (1.34 IN.)

5020612

Unavailable

13

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

13

VALVE ASM,AIR

1500014

$69.99

13

Screw

1500019

$6.39

13

O-RING,OUTER

1500023

$2.84

14

O-RING,.103W-1.549ID

1500108

$10.99

15

CAP, BODY

1500073

Unavailable

16

NUT,LOCK

1500016

$12.79

17

BUSHING,BACKUP

1500015

$6.76

18

DAMPER,PISTONRING,FOX

1500002

$31.99

19

PLATE,TOP OUT

1500017

$20.22

20

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

20

EYELET Substituted by 1500164

1500089

Unavailable
