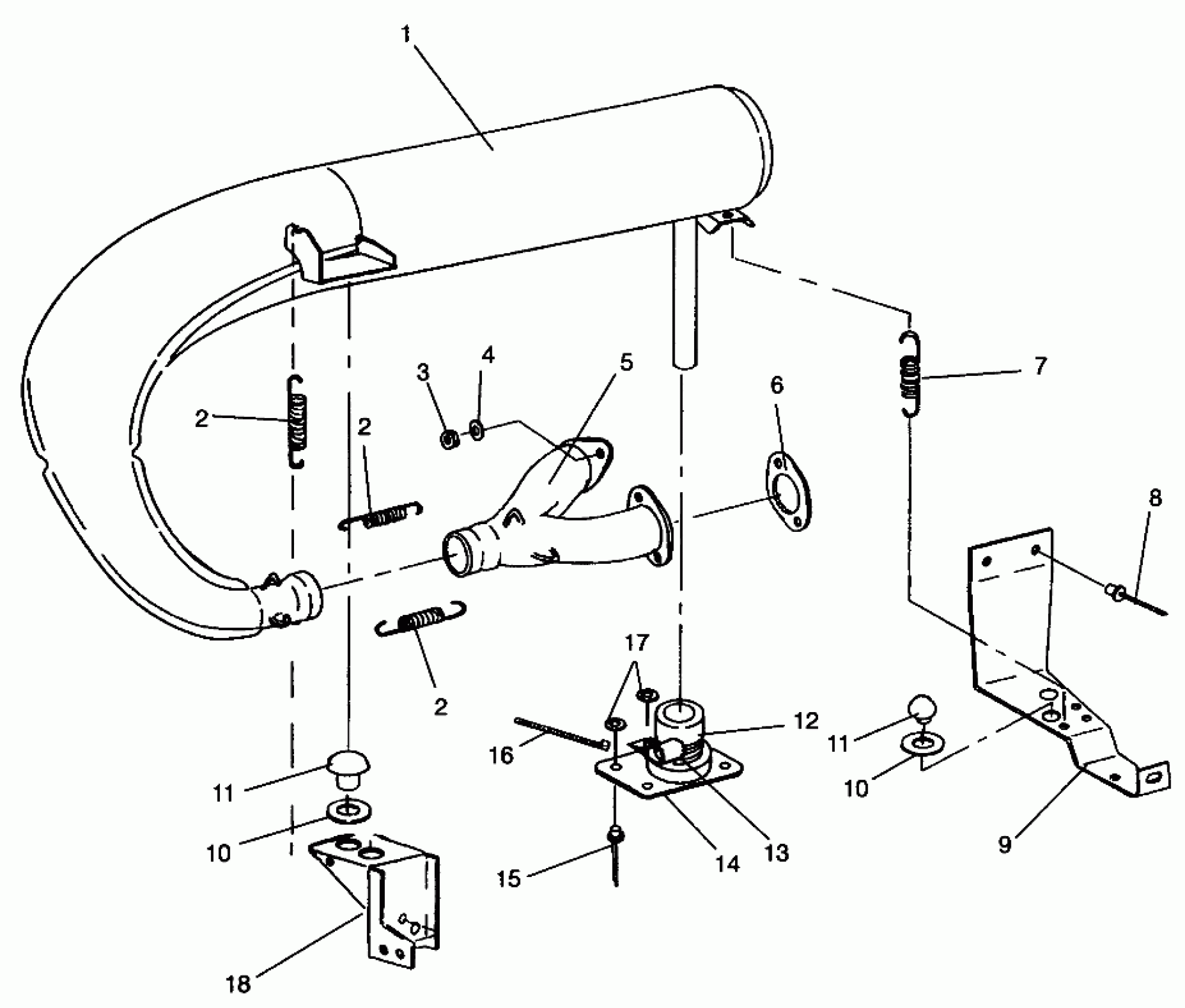

Polaris 440 XCR - 0961660 EXHAUST SYSTEM 440 XCR 0961660 (4932113211C004) Diagram

MUFFLER,BLK,(440 SP)

1260713-029

$236.99

SPRING, EXHAUST(10)

7042031

$5.65

SPRING, EXHAUST(10)

7042031

$5.65

SPRING, EXHAUST(10)

7042031

$5.65

NUT(10)

3080285

Unavailable

WASHER LOCK ,(10)

3080530

$3.19

MANIFOLD WELD,BLK.

1260665-029

Unavailable

Gasket, Exhaust Non-Asbestos (See Pg., Ref.)

-------

Unavailable

SPRING-EXHAUST(10)

7042029

$4.84

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

BRKT,R.MUFFLER, BLK Substituted by 5243853-067

5224701-067

Unavailable

WASHER, THRUST(10)

7555788

Unavailable

WASHER, THRUST(10)

7555788

Unavailable

DAMPNER, VIB.

5410467

$8.79

DAMPNER, VIB.

5410467

$8.79

Boot, Exhaust

5410502

$24.27

CLAMP, CABLE(10)

7080499

$5.59

HAT, EXHAUST Substituted by 5432465

5431058

Unavailable

POP RIVET(50)

7621418

$1.49

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

SUPPORT,MUFFLER,BLK.

1012233-067

Unavailable
