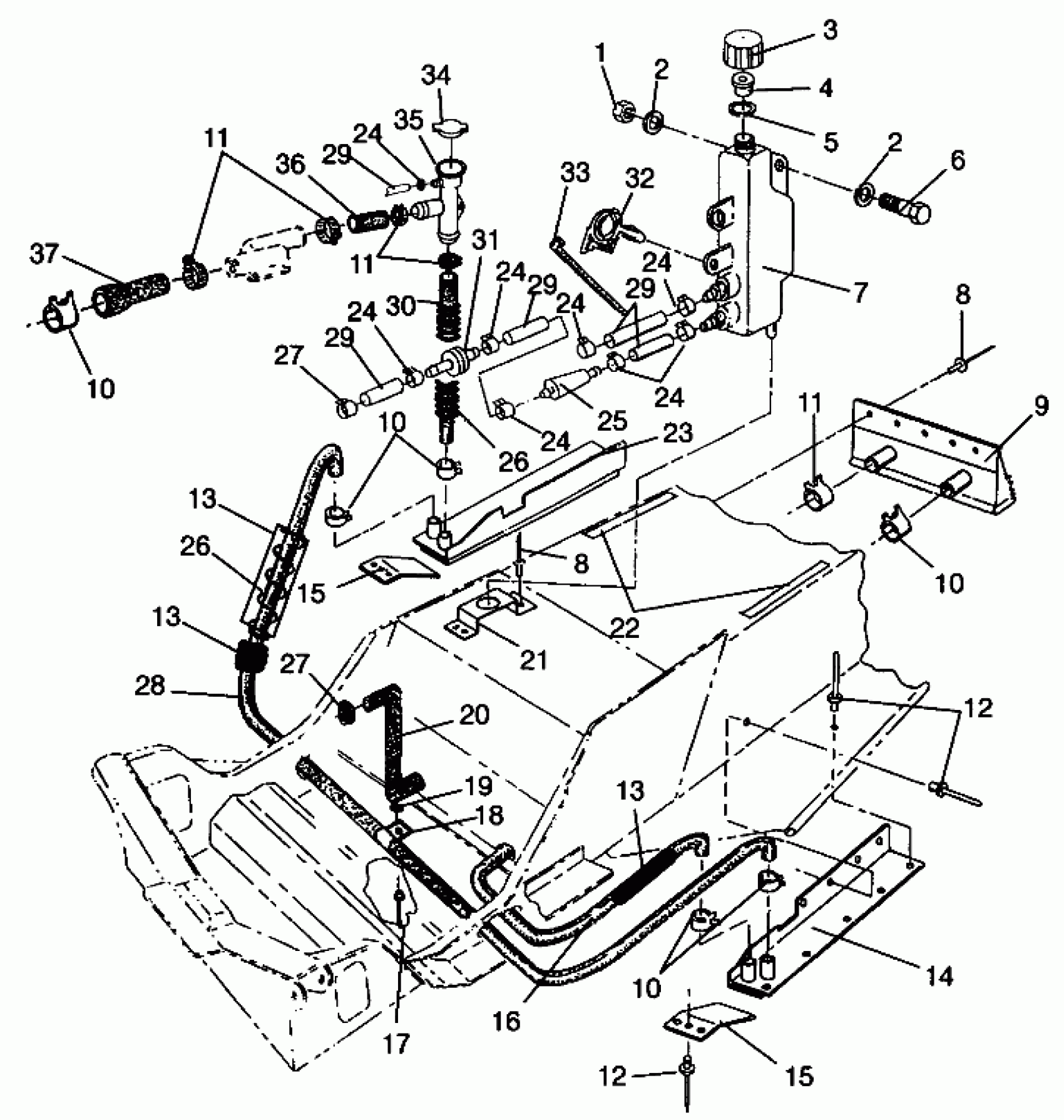

Polaris 440 XCR - 0961660 COOLING SYSTEM 440 XCR 0961660 (4932113211B006) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.49

2

WASHER,WROUGHT(10)

7558302

$1.59

2

WASHER,WROUGHT(10)

7558302

$1.59

3

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

4

PLUG, OVERFLOW,(10)

5431096

$2.02

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

BOLT(10)

7512240

$3.99

7

BOTTLE,O'FLOW,W/FITTING

5431733

$36.41

8

RIVET-3/16-.090-.290

7661637

$1.49

8

RIVET-3/16-.090-.290

7661637

$1.49

9

EXCHANGER,COOL.CTR.

2511239

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

10

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

11

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

11

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

11

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

RIVET,INTERLOCK,B(50)

7661638

$1.49

13

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

13

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

13

TUBING,CONVOL,1"X2.5"

5521242

Unavailable

14

COOLER,LH,SIDE(XTRA 10) Substituted by 1240059

2511257

$144.99

15

GUARD, COOL.EXT.

5222863

$32.99

15

GUARD, COOL.EXT.

5222863

$32.99

16

HOSE-CROSSOVER (Short)

5410350

Unavailable

17

RIVET(50)

7621456

Unavailable

18

CLAMP, 1"HOSE(10)

7080585

$3.99

19

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

20

HOSE,PUMP/CLOSE-OFF EXT.

5410979

Unavailable

21

BRACKET

5223985

Unavailable

22

PAD-GAS TANK

5810063

$4.95

23

COOLER,RH,SIDE(XTRA 10)

2511258

$227.99

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

FILTER,WATER LINE Substituted by 2530024

2530010

Unavailable

26

SPRING,HOSE RETAINER

7041079

$4.95

26

SPRING,HOSE RETAINER

7041079

$4.95

27

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842

7080563

Unavailable

27

CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842

7080563

Unavailable

28

HOSE-CROSSOVER

5410324

Unavailable

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

29

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

30

HOSE,3/4 TO 1,FILLNECK/COOLER

5410959

Unavailable

31

VALVE, CHECK

7052038

$10.51

32

CLIP, PLASTIC(10)

4020139

$4.79

33

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CAP,PRESS.(19-21 LB.)

2511256

Unavailable

35

FILLER,REMOTE COOLANT Substituted by 5433364

5431931

Unavailable

36

HOSE, 1"I.D.

5410958

Unavailable

37

HOSE,BRAKE COOLING

5410884

Unavailable
