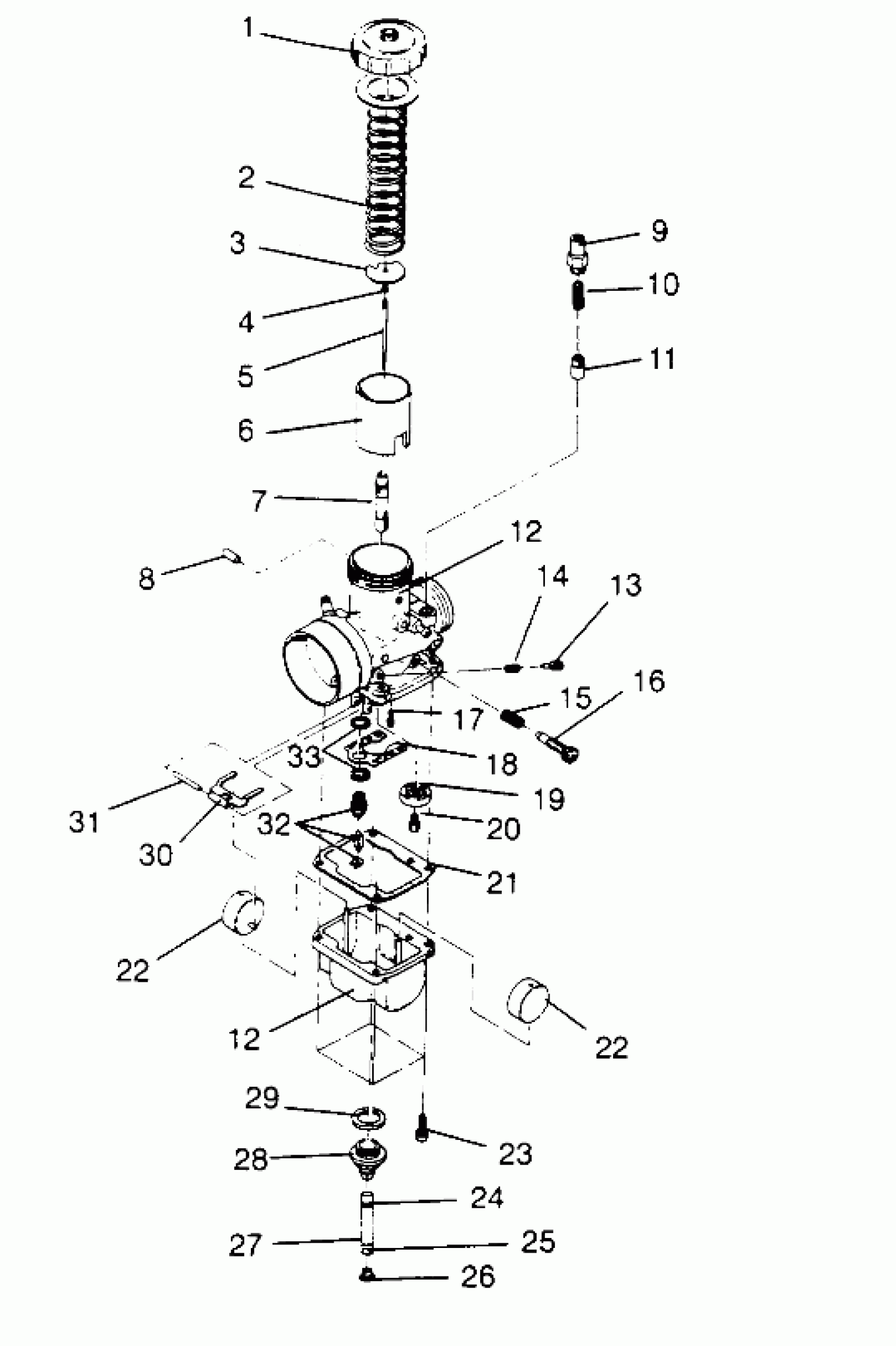

Polaris 440 XCR - 0961660 CARBURETOR 440 XCR 0961660 (4932113211C013) Diagram

#

Description
Price

1

TOP (Incl. Gasket)

3130061

Unavailable

2

SPRING,THROTTLE

3130444

Unavailable

3

PLATE

3130027

$9.70

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET NEEDLE,(6DH3-3) (6DH3-3)

3130470

Unavailable

6

VALVE,THROTTLE,2.0 (2.0)

3130464

Unavailable

7

NEEDLE JET(0-4)286 (255)

3130635

Unavailable

8

CAP

3130595

Unavailable

9

HOLDER,GUIDE

3130199

$28.32

10

SPRING,PLUNGER

3130006

$8.89

11

PLUNGER ASM, STARTER

3130328

$32.37

12

CARBURETOR (Incl. 1-16, 17-23, 29-33)

3130584

Unavailable

12

CARBURETOR (Incl. 1-16, 17-23, 29-33)

3130584

Unavailable

13

SCREW,AIR

3130011

$19.99

14

SPRING,AIR ADJUST (Air Adjuster)

3130012

$8.89

15

SPRING,THROTTLE ADJ.

3130010

$8.89

16

SCREW,THROTTLE STOP

3130009

$19.99

17

JET,PILOT,#50(10) (#50)

3130629

$7.27

18

PLATE

3130580

Unavailable

19

Ring

3130576

Unavailable

20

JET,MAIN,HX.HD#260(10) (#260)

3130129

$7.27

21

GASKET,FLOATCHAMBER

3130578

$20.22

22

FLOAT ASM.

3130581

$19.68

22

FLOAT ASM.

3130581

$19.68

23

SCREW

3130056

$3.19

24

CLAMP,SPRING,(10)

7080534

$1.59

25

CLAMP,HOSE(10)

7080544

Unavailable

26

PLUG,TRAP

5431893

$12.94

27

FUEL LINE, 5 FT.

8450045-153

Unavailable

28

NIPPLE

3130573

$32.37

29

O RING

3130239

Unavailable

30

ARM, FLOAT

3130577

$12.39

31

PIN, FLOAT

3130361

$8.89

32

VALVE ASM,NEEDLE Substituted by 3130643 (1.5)

3130046

$56.65

33

WASHER(10)

3130047

$4.84
