Description

Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

THROTLE,LEVER,35.5MM

5432970

$29.03

3

LEVER ASM,HTR,HI/LO 35.5MM

2010171

$84.98

4

BLOCK,THROTTLE/BRAKE

5431592

$49.99

5

GRIP,H'BAR,SNOW

5432634

$24.27

5

GRIP,H'BAR,SNOW

5432634

$24.27

6

PLUG, OVERFLOW,(10)

5431096

$2.02

6

PLUG, OVERFLOW,(10)

5431096

$2.02

7

ADAPTER-BLOCK,THROTTLE

5433345

$15.99

8

HANDLE BAR,BLK

1820854-067

Unavailable

9

SCREW,(10)

7517238

$4.79

10

KIT,DECAL APPLIC.,VINYL

2200891

Unavailable

10

DECAL"POLARIS",VINYL

7076468

Unavailable

11

COVER,HANDLE-BAR

2682624

Unavailable

12

PAD,HANDLEBAR,2 PLY

5812064

$31.99

13

Asm., Control, LH (See Brake Pg. A14, Ref. 11)

-------

Unavailable

14

BLOCK,HANDLEBAR

5630187-067

$44.99

14

BLOCK,HANDLEBAR

5630187-067

$44.99

15

WELD-STEERING POST,BLK

1823187-067

Unavailable

16

NUT-LOCK(10)

7542122

$1.49

17

SHIM,LWR.STRG POST,UPPER

5132447

Unavailable

18

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

19

HEATER,GRIP,LO/MED/HI

2460677

$60.70

20

STEERING HOOP,BLK Substituted by 1013602-067

1013068-067

$69.84

21

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

21

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

21

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

22

BOLT,(10)

7517428

$2.39

23

BOLT,CARRIAGE(10)

7515383

Unavailable

24

RIVET-3/16-.090-.290

7661637

$1.49

25

PLATE,TIE ROD BOOT

5244470

Unavailable

26

BOOT,TIE ROD,L.H.

5433532

Unavailable

26

BOOT,TIE ROD,R.H.

5433533

Unavailable

27

SHIM,LWR.STRG POST,LOWER

5132448

$16.47

28

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

29

FITTING-LUBRICATION 1/4-28

7080424

$4.79

30

BRKT,STEER.POST

5131841

Unavailable

30

BRKT,STEER.POST

5131841

Unavailable

31

BUSHING,STEER.POST

5432785

$6.39

31

BUSHING,STEER.POST

5432785

$6.39

32

SCREW-SEMS(10)

7511848

$3.99

32

SCREW-SEMS(10)

7511848

$3.99

33

HOLDER-WIRE

5432261

$24.27

34

RING-RETAINING EXTERNAL

7710401

$3.99

35

SCREW(10)

7512465

$3.99

36

RIVET BURR(50)

7555727

$1.49

37

SWITCH,AUX.SHUT-OFF

4110106

$94.99

38

WASHER(10)

7555730

$3.99

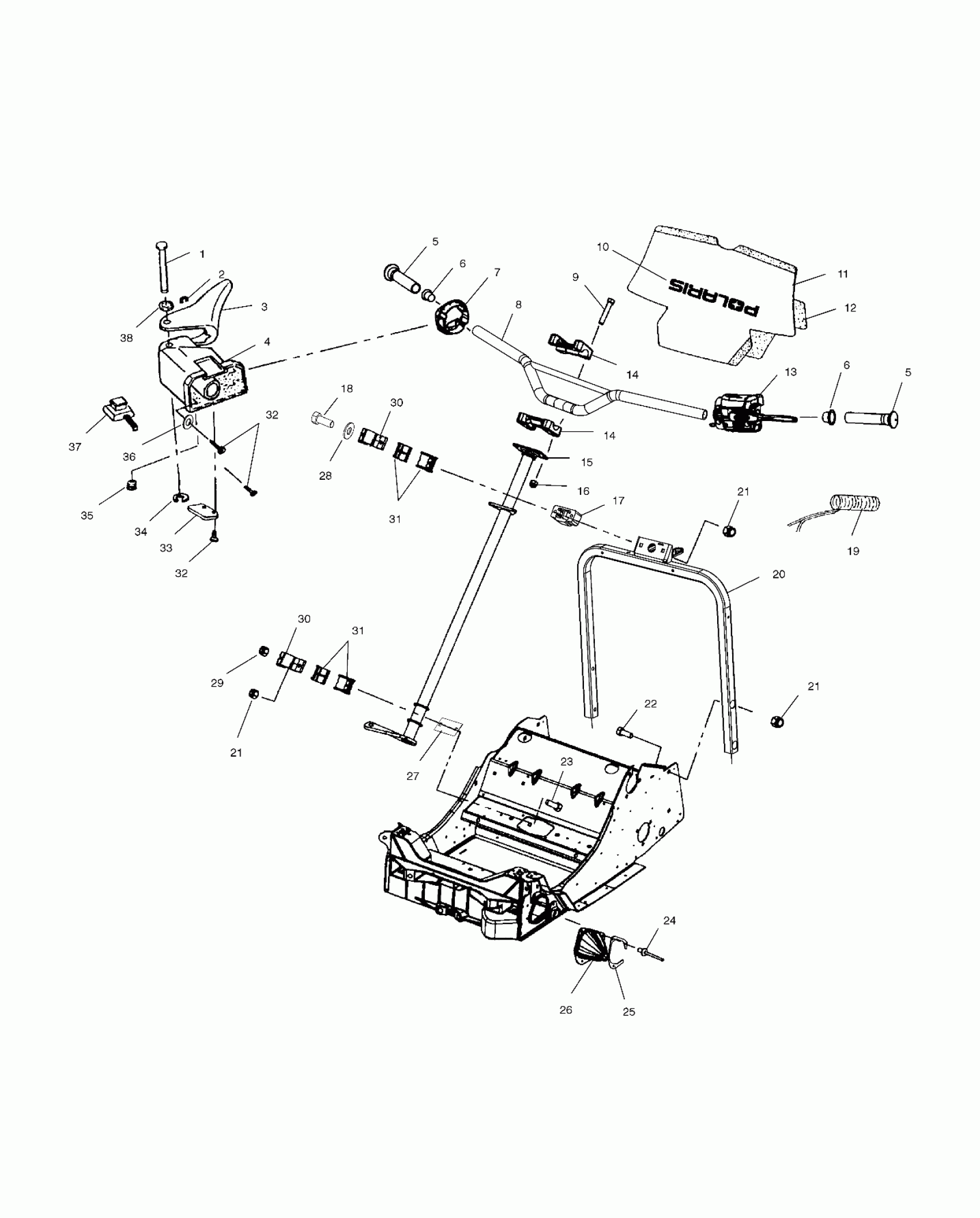

Polaris 440 XC SP - S00NX4CS STEERING - HANDLEBAR - S00NX4CS (4954025402B005) Diagram

PIN-RETAINING .186X1.780-AL

RET.RING-INDUSTRIAL(2000-25)-Z

THROTLE,LEVER,35.5MM

LEVER ASM,HTR,HI/LO 35.5MM

BLOCK,THROTTLE/BRAKE

GRIP,H'BAR,SNOW

GRIP,H'BAR,SNOW

PLUG, OVERFLOW,(10)

PLUG, OVERFLOW,(10)

ADAPTER-BLOCK,THROTTLE

HANDLE BAR,BLK

SCREW,(10)

KIT,DECAL APPLIC.,VINYL

DECAL"POLARIS",VINYL

COVER,HANDLE-BAR

PAD,HANDLEBAR,2 PLY

Asm., Control, LH (See Brake Pg. A14, Ref. 11)

BLOCK,HANDLEBAR

BLOCK,HANDLEBAR

WELD-STEERING POST,BLK

NUT-LOCK(10)

SHIM,LWR.STRG POST,UPPER

SCR-HH-5/16-18X2.25 GR5 ZY3

HEATER,GRIP,LO/MED/HI

STEERING HOOP,BLK Substituted by 1013602-067

NUT-5/16-18 HX FLG NL-Y

NUT-5/16-18 HX FLG NL-Y

NUT-5/16-18 HX FLG NL-Y

BOLT,(10)

BOLT,CARRIAGE(10)

RIVET-3/16-.090-.290

PLATE,TIE ROD BOOT

BOOT,TIE ROD,L.H.

BOOT,TIE ROD,R.H.

SHIM,LWR.STRG POST,LOWER

WASHER-.344X.688X.063 FL-Y

FITTING-LUBRICATION 1/4-28

BRKT,STEER.POST

BRKT,STEER.POST

BUSHING,STEER.POST

BUSHING,STEER.POST

SCREW-SEMS(10)

SCREW-SEMS(10)

HOLDER-WIRE

RING-RETAINING EXTERNAL

SCREW(10)

RIVET BURR(50)

SWITCH,AUX.SHUT-OFF

WASHER(10)
