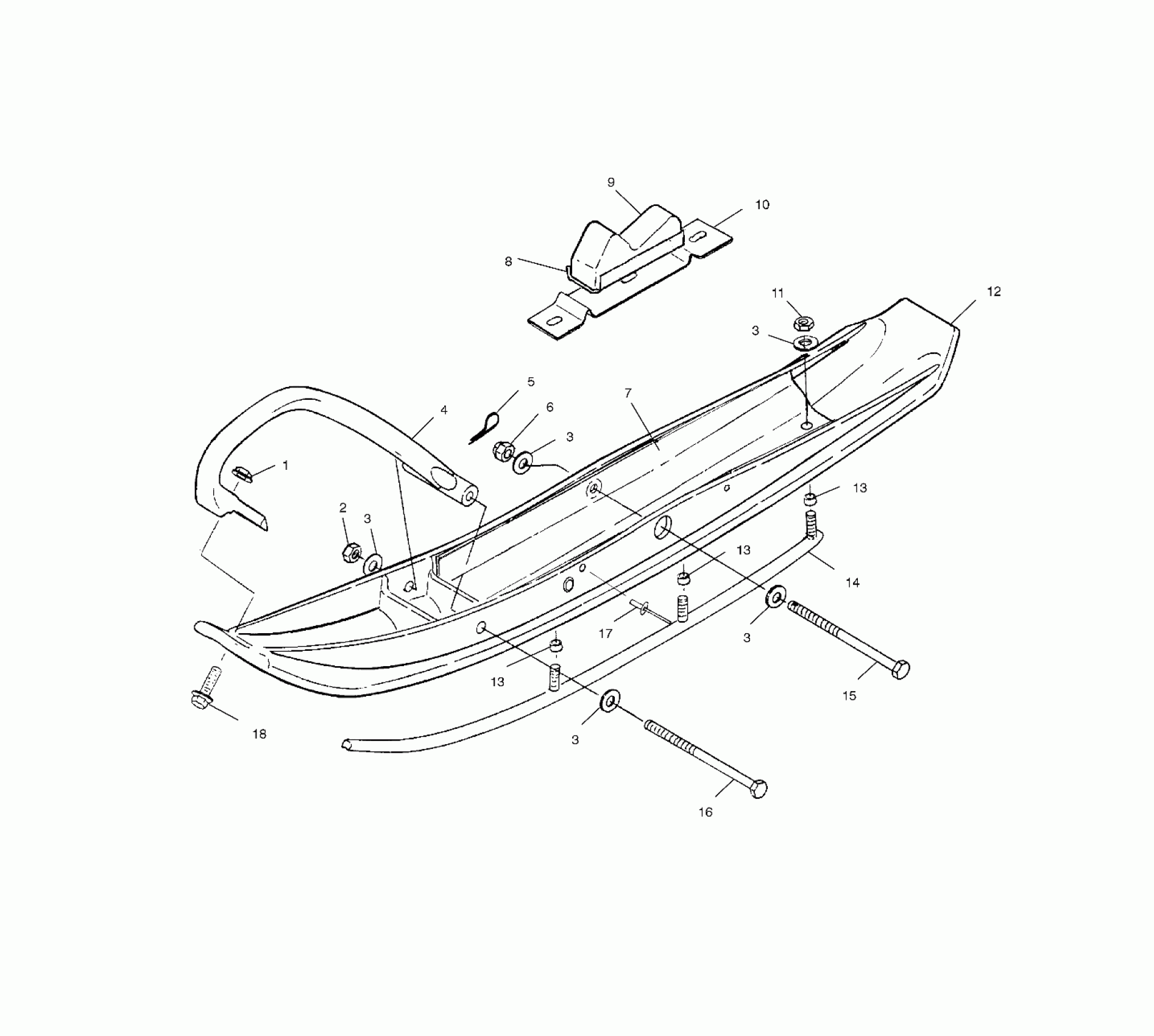

Polaris 440 XC SP - S00NX4CS SKI - S00NX4CS (4954025402B003) Diagram

#

Description
Price

1

NUT LOCK(10)

7542321

$1.49

2

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

3

WSHR-.813X.406X.105-Y

7555832

$2.39

4

TOE,PLASTIC SKI,BLK Substituted by 5434165-070

5432209-070

$40.46

5

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

ASM-SADDLE,HI PERF,BLK

1820840-067

$64.76

8

RETAINER-SKI RUBBER

5243824

$27.99

9

STOP,RUBBER

5411094

Unavailable

10

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

11

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

12

SKI-PLASTIC,HIGH PERF,BLACK

5432996-070

Unavailable

13

SPACER-SKAG,.390X.875X.490

5131894

$12.95

13

SPACER-SKAG,.390X.875X.490

5131894

$12.95

13

SPACER-SKAG,.390X.875X.490

5131894

$12.95

14

SKAG,CARBIDE,3IN.120DEG,3/8 STUD

1820483

Unavailable

15

SCREW,(10)

7512596

$19.99

16

BOLT(10)

7515514

$7.19

17

RIVET,(50) Substituted by 7661847

7621514

Unavailable

18

BOLT(10)

7515307

$3.99
