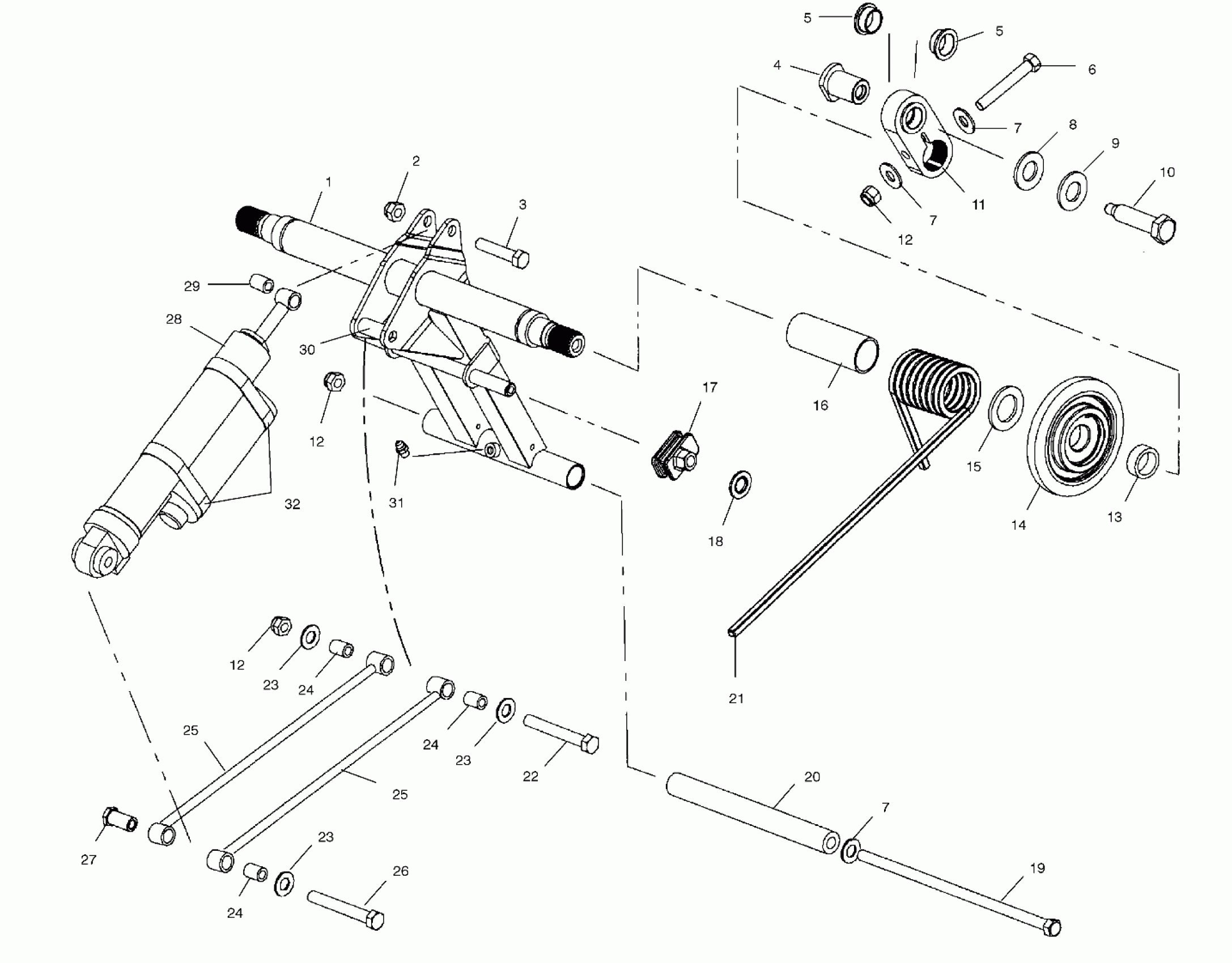

Polaris 440 XC SP - S00NX4CS REAR TORQUE ARM - S00NX4CS (4954025402B013) Diagram

#

Description
Price

1

TORQUE-ARM,REAR,BLK Substituted by 1541561-067

1541433-067

$140.54

2

NUT LOCK(10)

7542411

$3.19

3

BOLT(10) Substituted by 7515492

7512410

Unavailable

4

SHAFT-ARM

5333758

Unavailable

5

BUSHING-ARM

3514331

$19.99

5

BUSHING-ARM

3514331

$19.99

6

BOLT(10)

7515415

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

7

WASHER(10)

7555806

$1.49

8

WASHER(10)

7555893

$1.49

9

WASHER(10)

7552603

$1.49

10

Bolt

7517435

$14.99

11

ARM,ASM,RTA (Incl. 5)

1541461

$119.99

12

NUT-LOCK(10)

7542439

$1.49

12

NUT-LOCK(10)

7542439

$1.49

12

NUT-LOCK(10)

7542439

$1.49

13

SPACER,WHEEL

5132388

Unavailable

14

WHEEL ASM,PLAIN,BLK.

1590278

$48.56

15

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

16

SLEEVE,TORS.SPRING

5433007

Unavailable

17

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

18

CLIP-PUSH ON

7080394

$2.39

19

Screw

7517232

$19.99

20

SHAFT,.740X.390X7.055,6066

5333873

$11.11

21

SPRNG,TRSN.375SQ/90�LH,BLK (Std)

7041895-067

$85.54

21

SPRNG,TRSN.375SQ/90�RH,BLK (Std)

7041896-067

Unavailable

21

SPRNG,TRSN,.347SQ/90�,LH,BLK Substituted by 2900063 (Opt)

7041911-067

Unavailable

21

SPRNG,TRSN,.347SQ/90�,RH,BLK Substituted by 2900063 (Opt)

7041912-067

Unavailable

21

SPRNG,TRSN.359SQ/90�LH,BLK Substituted by 2900064 (Opt)

7041902-067

Unavailable

21

SPRNG,TRSN.359SQ/90�RH,BLK Substituted by 2900064 (Opt)

7041903-067

Unavailable

21

SPRNG,TRSN.405SQ/90�LH,BLK Substituted by 2900066 (Opt)

7041897-067

Unavailable

21

SPRNG,TRSN.405SQ/90�RH,BLK Substituted by 2900066 (Opt)

7041898-067

Unavailable

22

BOLT(10)

7515514

$7.19

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

BUSHING,.378X.616X1.12

5132391

$7.99

24

BUSHING,.378X.616X1.12

5132391

$7.99

24

BUSHING,.378X.616X1.12

5132391

$7.99

25

SHOCK ROD,12.850,BLK

1541479-067

$44.51

25

SHOCK ROD,12.850,BLK

1541479-067

$44.51

26

BOLT(10)

7515538

$6.39

27

BUSHING,NUT.616X1.12X.875

5132390

$23.99

28

SHOCK-REAR-TRACK,FOX

7041906

$498.99

29

BUSHING

5010422

$11.99

30

SPACER,.397X.562X1.250

5333904

Unavailable

31

FITTING-LUBRICATION 1/4-28

7080424

$4.79

32

CLAMP,HOSE,3.21-3.25

1500330

$9.52
