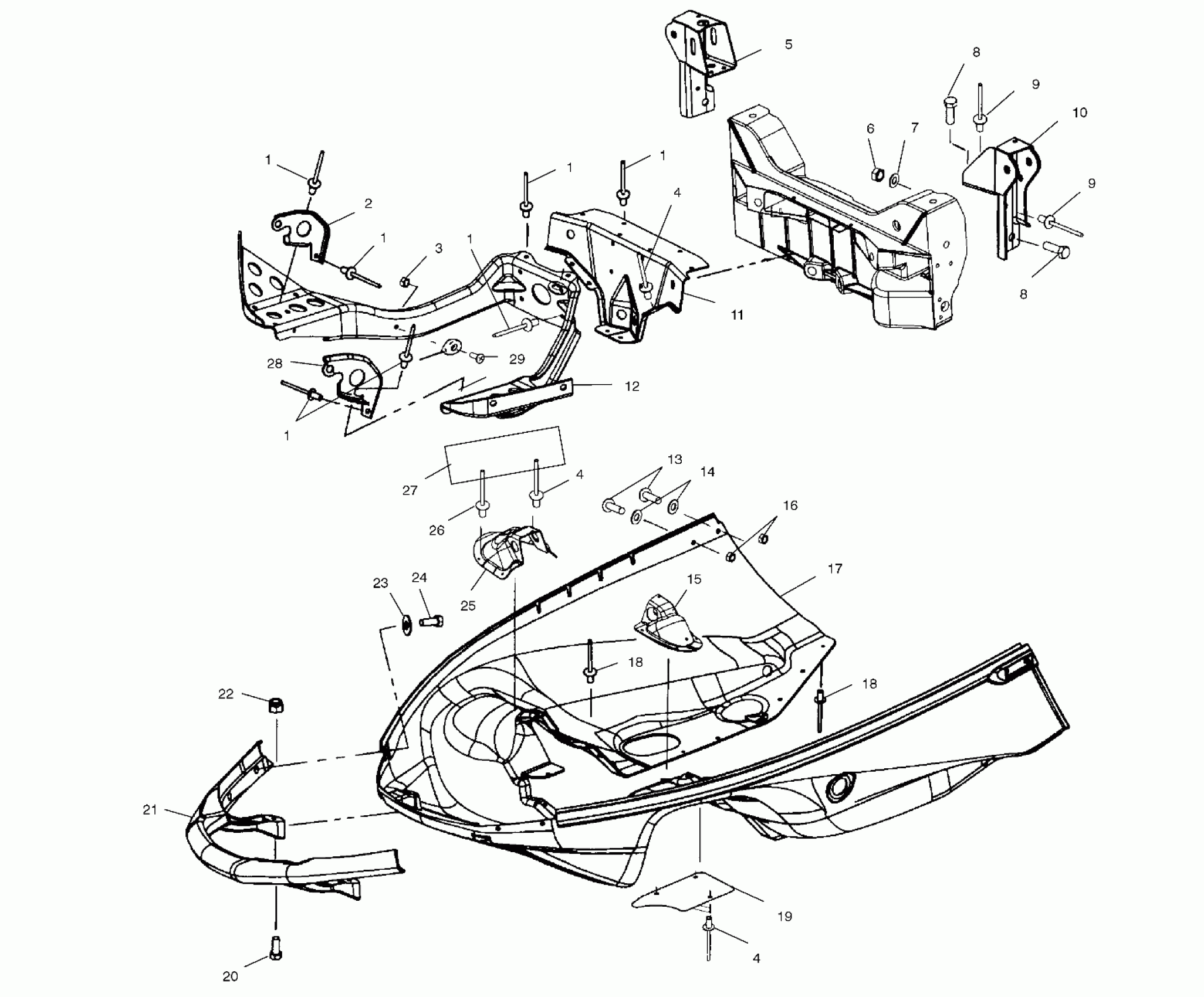

Polaris 440 XC SP - S00NX4CS NOSEPAN - S00NX4CS (4954025402A007) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

HINGE-LOWER PIVOT,RH,BLK

5243992-067

$104.99

3

Nut (See Hood Pg. A10, Ref. 15)

-------

Unavailable

4

RIVET(50)

7621472

$1.49

4

RIVET(50)

7621472

$1.49

4

RIVET(50)

7621472

$1.49

5

WELD-SHOCK TOWER,2.5IN,RH,BLK

1821030-067

Unavailable

6

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

7

WASHER,3/8 FW(10)

7556153

$1.99

8

BOLT(10)

7515440

$3.99

8

BOLT(10)

7515440

$3.99

9

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

9

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

10

WELD-SHOCK TOWER,2.5IN,LH,BLK

1821029-067

$45.59

11

BRKT,RAD.ROD SUPPORT,BLK

5244049-067

Unavailable

12

BRACE,PAN LOWER

5244050

$137.60

13

SCREW(10)

7515166

$3.19

14

WASHER(10)

7555827

$3.99

15

COVER,SHOCK TOWER,LH

5433713

Unavailable

16

NUT-LOCK(10)

7542122

$1.49

17

KIT-NOSEPAN REPLACEMENT,20RACE

2202034

Unavailable

18

RIVET, BLIND(50)

7621467

$1.49

18

RIVET, BLIND(50)

7621467

$1.49

19

SHIELD-HEAT,NOSEPAN Substituted by 5245853

5243849

$11.51

20

SCREW(10)

7512163

$3.99

21

BUMPER,FRONT EDGE,BLK

5433518-070

$64.75

22

NUT(10)

7542153

$1.59

23

LOCK WASHER(10)

7552801

$1.59

24

SCREW(10)

7515159

$4.79

25

COVER,SHOCK TOWER,RH

5433714

$40.72

26

RIVET(50)

7621479

$1.99

27

FOIL,NOSEPAN,8X8

5812041

Unavailable

28

HINGE-LOWER PIVOT,LH,BLK

5243991-067

$104.99

29

Screw (See Hood Pg. A10, Ref. 14)

-------

Unavailable
