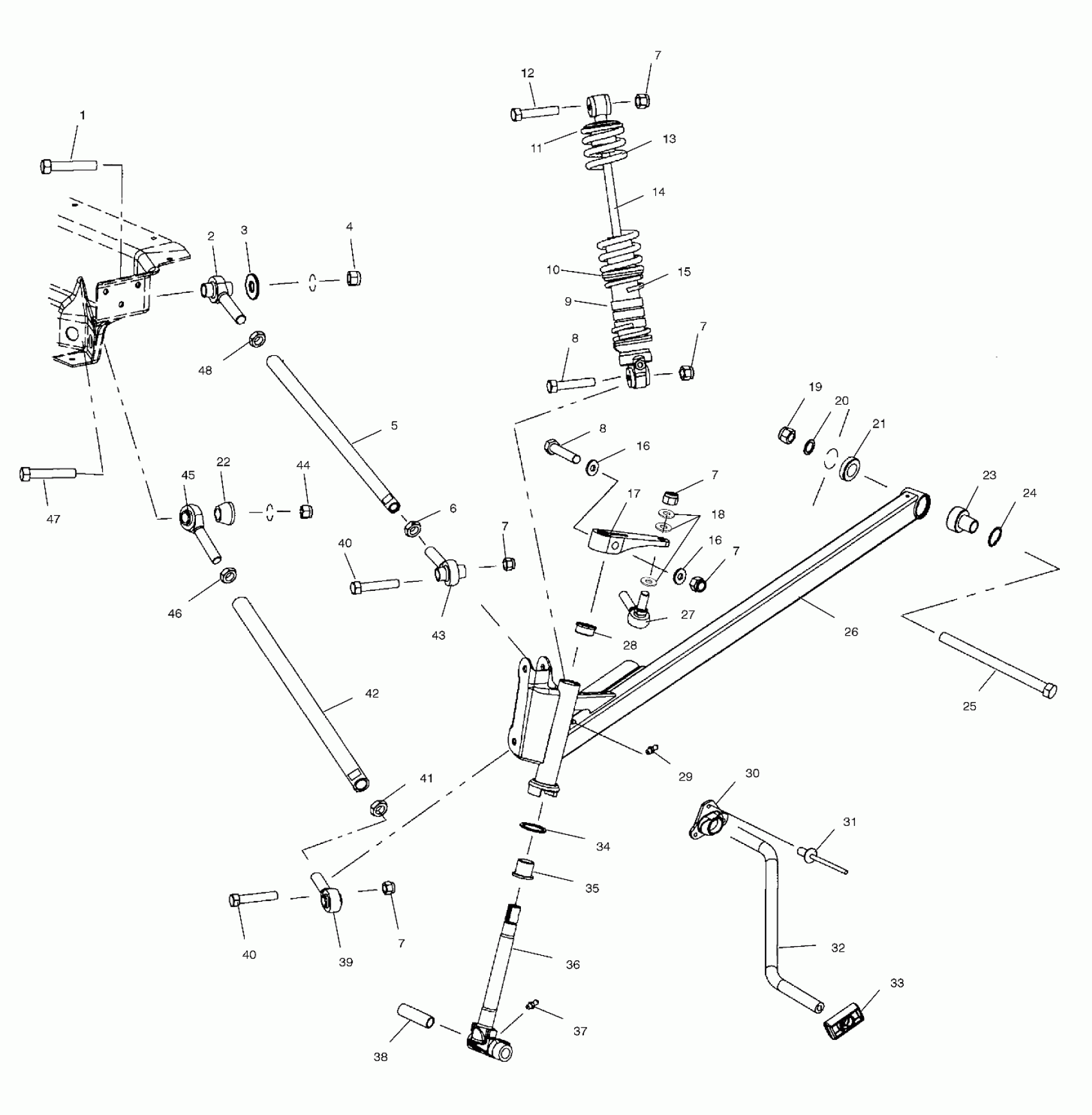

Polaris 440 XC SP - S00NX4CS FRONT SUSPENSION - S00NX4CS (4954025402B001) Diagram

#

Description
Price

1

BOLT-7/16-20X2.75,HXCAP,GR5,Y

7512597

$4.99

2

ROD,END-RADIUS,LH,7/16

7061067

$33.91

3

WASHER, FLAT(10)

7555852

$2.39

4

NUT, LOCK,(10)

7542503

$10.39

5

TUBE,RAD.ROD,UPPER,RED

5333867-293

$38.71

6

NUT JAM(10)

7542520

$2.39

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

BOLT Substituted by 7515491

7515433

$1.59

8

BOLT Substituted by 7515491

7515433

$1.59

9

SPACER,SPRING COLLAR

5131741

Unavailable

10

SPACER,SPRING

5131742

Unavailable

11

RETAINER,SPRING,SLOTTED

5020618

$24.99

12

BOLT(10)

7515415

$1.49

13

SPRING,COMP,BLACK

7041672-067

Unavailable

14

SHOCK-GAS,IFS,IFP,11.02X16

7041838

Unavailable

15

SPRING,COMP.235X400,120#

7041699-067

$45.99

16

WSHR-.813X.406X.105-Y

7555832

$2.39

16

WSHR-.813X.406X.105-Y

7555832

$2.39

17

ARM,STRNG,MACHINED,EDGE

5132427

Unavailable

18

WASHER(10)

7555797

$3.99

19

NUT-7/16-20,NYLOK,Y

7547066

$1.59

20

WASHER(10)

7555820

$3.99

21

CUP,TRAILING ARM MNT

5132364

$20.22

22

BUSHING,SPACER

5132454

Unavailable

23

BEARING-SPHERICAL,7/16,PLASTIC

7061042

$31.99

24

RING,RETAINING(10)

7710437

$3.19

25

BOLT

7512099

$19.99

26

TRAILING ARM,LH RED (Incl. 23,24)

1820940-293

$267.99

26

TRAILING ARM,RH RED (Incl. 23,24)

1820941-293

$236.99

27

RODEND,3/8,PL,75�,1.00,RH

7061068

$28.11

28

BUSHING-FLANGE

3573909

$2.39

29

ZERK,FITTING,THREADED(10)

7080433

$1.49

30

BUSHING-TORSION BAR

5433234

$23.99

31

RIVET,(50)

7621477

$1.19

32

BAR,TRSN,1/2,42.5 EDGE,BLK

5244415-067

Unavailable

33

SLIDE-TORSION BAR

5433329

Unavailable

34

WASHER SPECIAL(10)

7556509

$1.59

35

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

36

SHAFT-SPINDLE,HARDENED,BLK

6230160-067

$134.99

37

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

38

BUSHING,PIVOT,(10)

5010158

$19.99

39

ROD,END-RADIUS,RH,1/2

7061059

$35.51

40

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

40

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

41

NUT-JAM(10)

7542711

$2.39

42

TUBE,RAD.ROD,LOWER,RED

5333868-293

$38.71

43

ROD,END-RADIUS,RH,7/16

7061058

Unavailable

44

NUT FLEX,(10)

7542703

Unavailable

45

ROD,END-RADIUS,LH,1/2

7061066

$30.16

46

NUT,LH,JAM(10)

7547028

$2.39

47

BOLT(10)

7512684

Unavailable

48

NUT(10)

7547117

Unavailable
