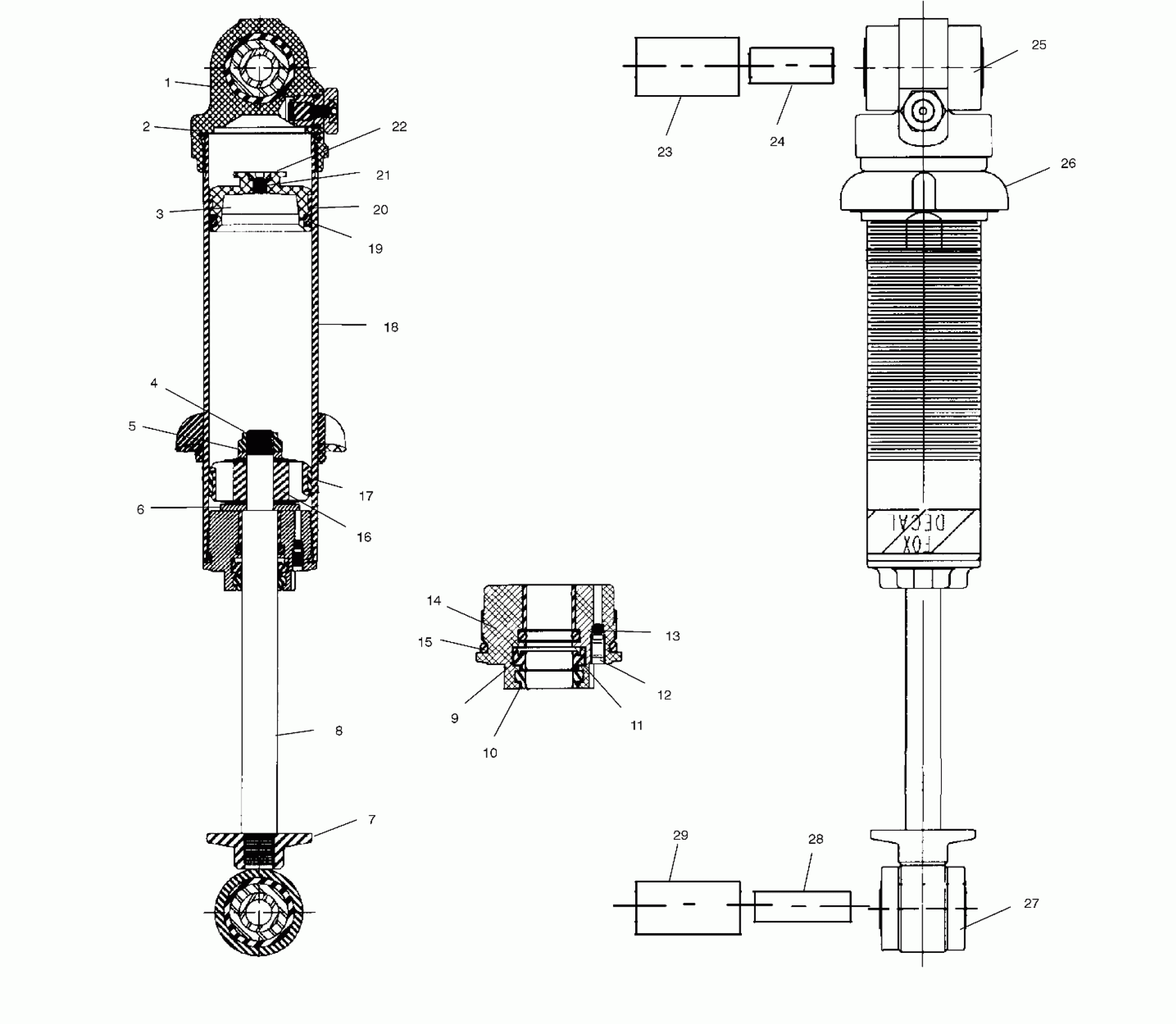

Polaris 440 XC SP - S00NX4CS FOX SHOCK - FRONT TRACK - S00NX4CS (4954025402C003) Diagram

#

Description
Price

-

SHOCK-FRONT-TRACK,FOX

7041907

Unavailable

1

CAP,ASM,BODY

1500315

Unavailable

2

O-RING,.103W-1.549ID

1500108

$10.99

3

PISTON-FLOATING

1500187

$26.98

4

NUT,LOCK

1500016

$12.79

5

BUSHING,BACKUP

1500015

$6.76

6

PLATE,TOP OUT

1500017

$20.22

7

EYELET,BASE

1500164

$93.08

8

SHAFT,.498X6.25 TLG

1500321

$53.59

9

U-CUP-4300 URETH,036-01-006

1500266

$24.27

10

WIPER.-4300 URETH

1500268

Unavailable

11

O-RING INNER (10)

1500021

$10.99

12

Screw

1500070

$6.39

13

BALL, (FOX)

1500071

$6.76

14

BEARING-ASSEMBLY

1500186

Unavailable

15

O-RING,(10).103W-1.299ID

1500020

$10.63

16

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

17

DAMPER,PISTONRING,FOX

1500002

$31.99

18

BODY,6.15 TLG,4.7 THD

1500318

$62.39

19

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

20

RING,PISTON,FLOATING,FOX

1500006

$19.99

21

O-RING,DRUM OUTER

1500022

Unavailable

22

Screw

1500018

$5.56

23

SLEEVE,.56X.81X1.68

1500312

$23.99

24

SLEEVE,.385X.560X1.72

5333906

$15.99

25

BUSHING,.35ILG,.82TLG

1500308

$6.63

26

RING,PRELOAD,AL. 1.8 FLG

1500323

$53.59

27

BUSHING,.35ILG,.595TLG

1500309

Unavailable

28

SLEEVE,.385X.560X1.24

5333905

$15.99

29

SLEEVE,.56X.81X1.2

1500310

$23.99
