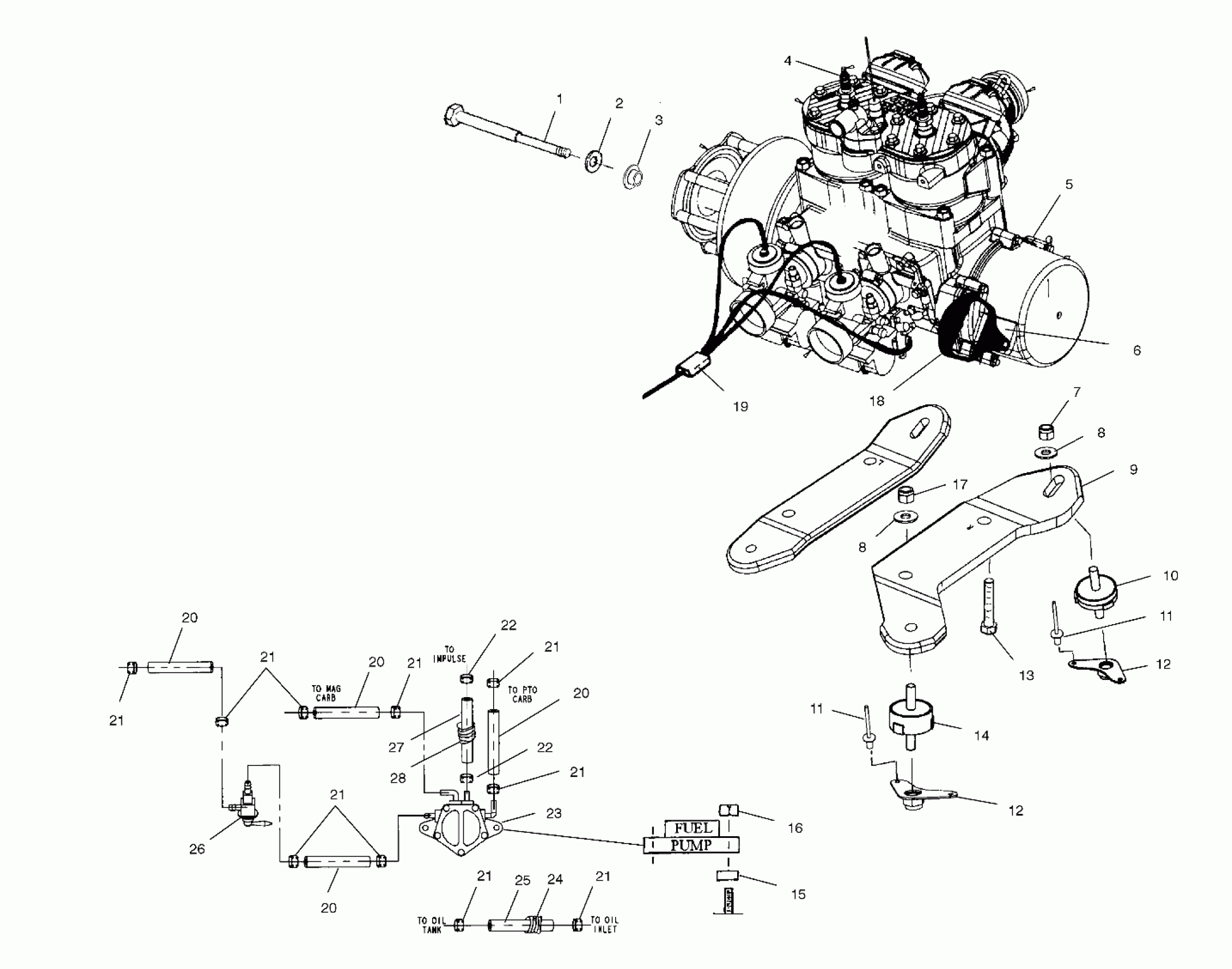

Polaris 440 XC SP - S00NX4CS ENGINE MOUNTING - S00NX4CS (4954025402C006) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

SPARKPLUG-RN57YC(3) Substituted by 3070190

30-701-84

Unavailable

5

KIT,SB,SN-44-40-00 [No Longer Available] (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior

2201632

Unavailable

6

DECAL-FUEL SHUT OFF

7078317

Unavailable

7

NUT FLEX LOC,(10)

7542402

$6.39

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

9

STRAP-ENGINE MOUNT 440 BASE,LH

5243414

Unavailable

9

STRAP-ENGINE MOUNT 440 BASE,RH

5243415

Unavailable

10

MOUNT-ENGINE,3/8-16,3-TAB

3021101

Unavailable

11

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

11

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

12

NUT,PLATE,SUPPORT

1012680

Unavailable

12

NUT,PLATE,SUPPORT

1012680

Unavailable

13

Screw

7517399

$8.99

14

MOUNT-ENGINE,3/8-16,3-TAB

3021097

Unavailable

15

WASHER,NYLON

7555932

$2.39

16

NUT-LOCK(10)

7542122

$1.49

17

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

18

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

19

CABLE,THROTTLE,TWIN,LONG

7080917

Unavailable

20

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

20

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

20

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

20

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

PUMP,FUEL,2 OUTLET

2520134

Unavailable

24

SPRING,PROTECT VENTHOSE

7041643

$3.51

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

26

VALVE-FUEL,PLASTIC 90�,1/4HOSE

7052249

$24.27

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

28

CONDUIT,CONVOL(26 CM) Substituted by 4010051-30

4010051-26

Unavailable
