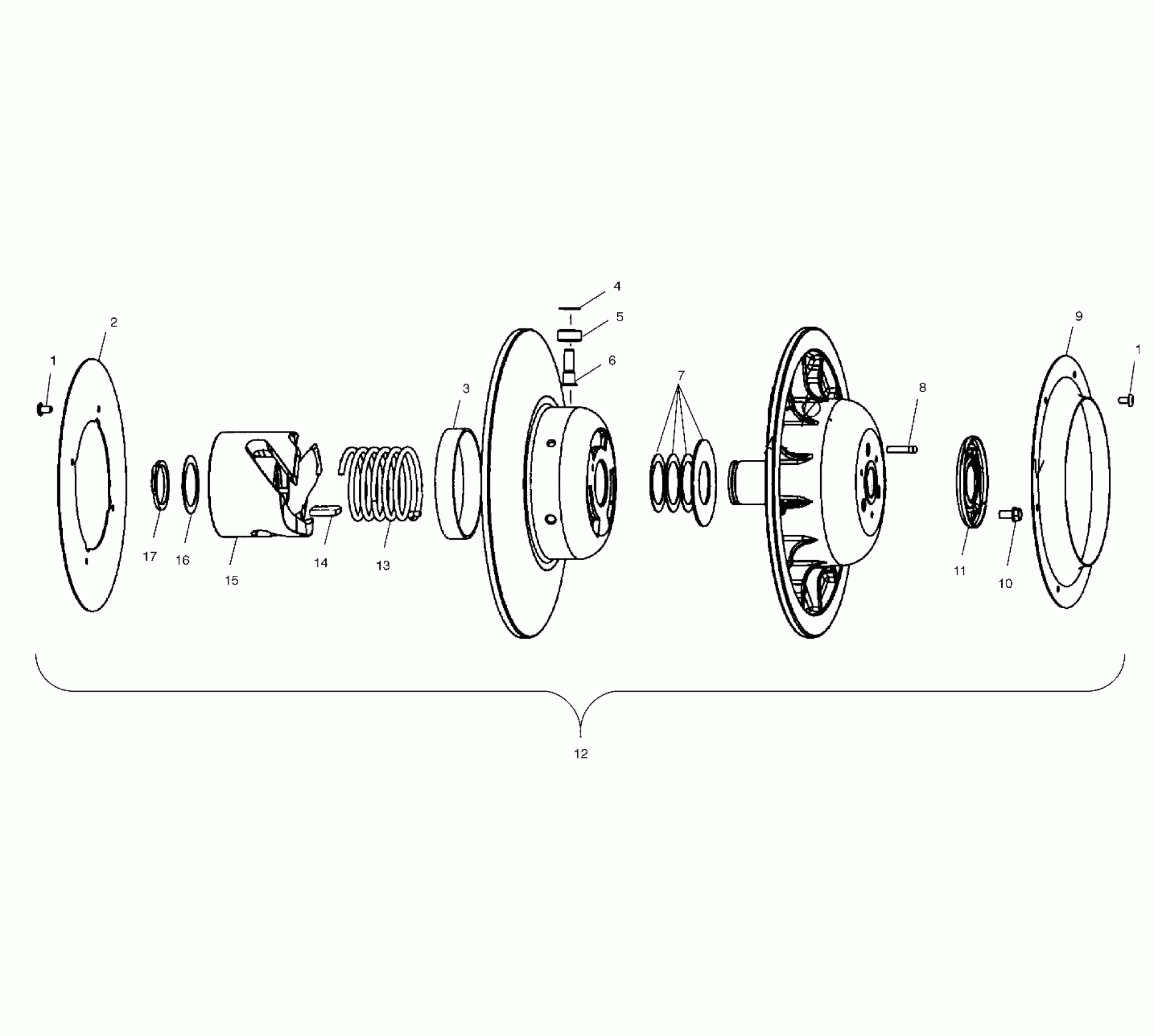

Polaris 440 XC SP - S00NX4CS DRIVEN CLUTCH - S00NX4CS (4954025402C001) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE-DRIVEN,VENTED

5243158

$131.99

3

BUSHING,D.U.

3569803

Unavailable

4

SHIM

7556145

$7.27

5

ROLLER,DRIVEN

5631061

Unavailable

6

PIN,ROLLER DRIVEN Substituted by 7661133

7661091

Unavailable

7

WASHER(10) (.03)

7556804

Unavailable

7

WASHER(10) (.02)

7555898

Unavailable

7

WASHER(10) (.025)

7556076

Unavailable

7

WASHER,DRIVE CLUTCH(10) (.075)

7555865

Unavailable

8

PIN, CLUTCH

5020653

$34.99

9

CAP-DRIVEN,VENTED

5243157

Unavailable

10

SCREW(10)

7515133

$3.99

11

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

12

DRVN CLUTCH,BASIC 200W/B Substituted by 2900050 (Incl. 1-12,14,16,17)

1321889

Unavailable

13

SPRING,CLUTCH,SVR/BLUE

7041646

$69.99

14

KEY SQUARE(10)

7721103

$5.65

15

RAMP,DRIVEN,ROLLER,R8 Substituted by 2900174

2900057

Unavailable

16

WASHER(10)

7556804

$1.49

17

RING,RETAINING(10)

7714804

$9.59
