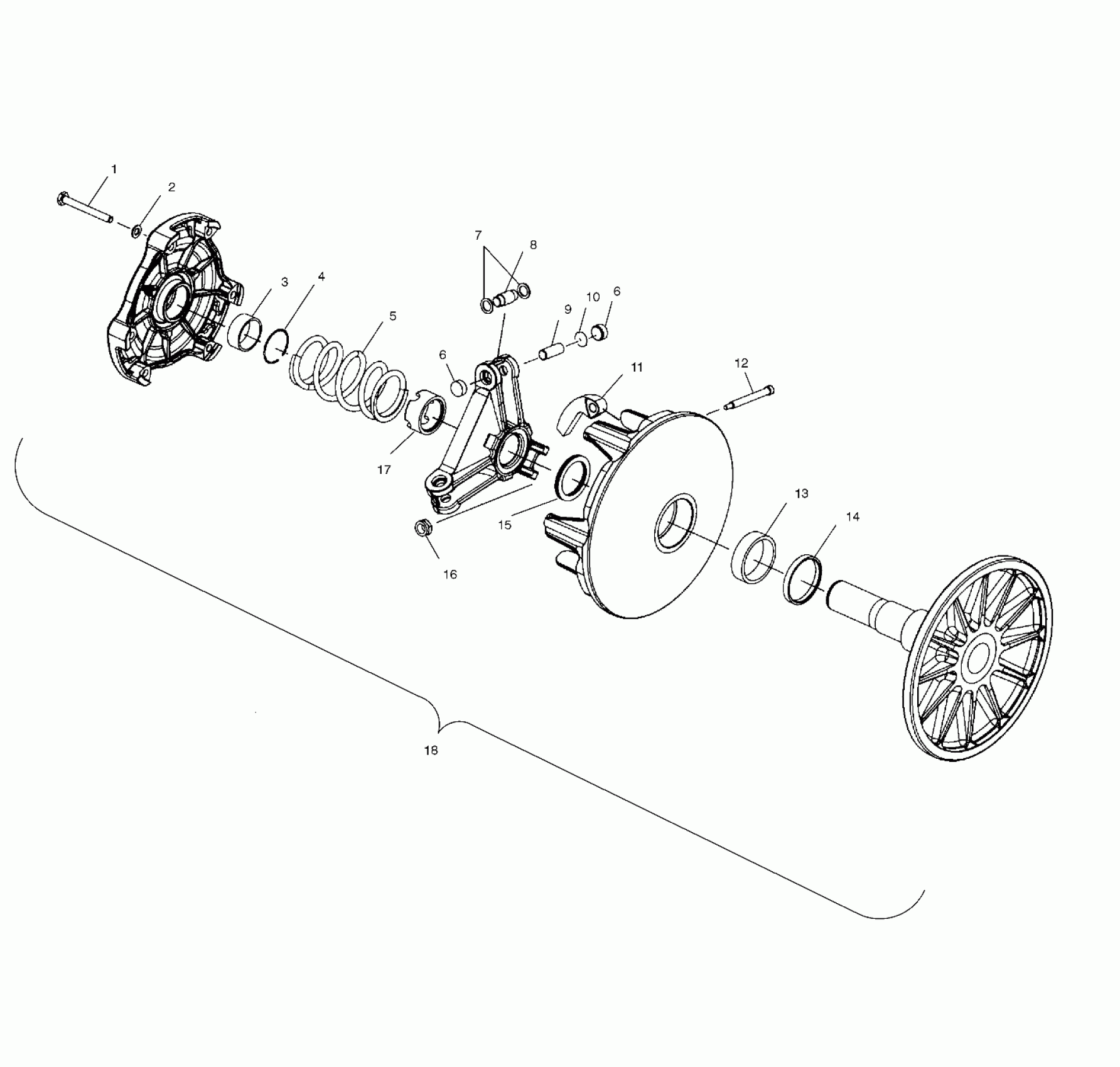

Polaris 440 XC SP - S00NX4CS DRIVE CLUTCH - S00NX4CS (4954025402B014) Diagram

#

Description
Price

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-(ALMOND/BLACK)

7041816

Unavailable

6

BUTTON, GUIDE,(10)

5430445

$6.39

6

BUTTON, GUIDE,(10)

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

PIN-ROLLER

5020422

$2.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

WT/BUSH.ASM,10M-B(3)

1321529

$44.99

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

SLEEVE, BEARING

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

SPACER(10) (.050mm)

5210754

Unavailable

15

SPACER(10) (.025mm)

5242981

Unavailable

15

SPACER(10) (.020mm)

5210752

Unavailable

15

SPACER(10) (.032mm)

5210753

Unavailable

16

NUT FLEX LOC(10)

7541906

$3.19

17

NUT-JAM

5020425

$23.99

18

CLUTCH,BASIC#101(DRIVE) (Incl. All Less 5,11)

1321792

Unavailable
