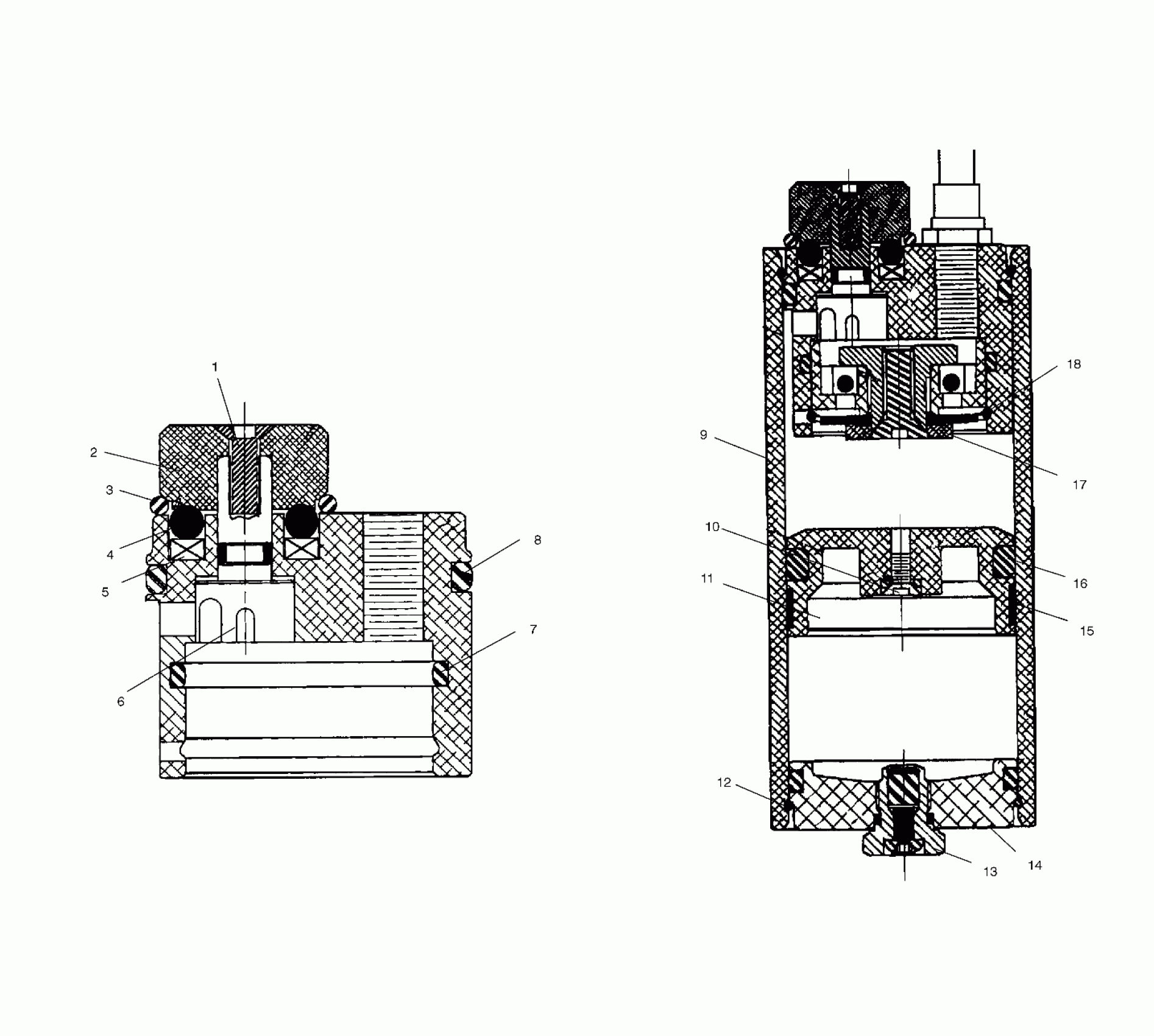

Polaris 440 XC SP - S00NX4CS COMPRESSION DAMPING RESERVOIR - 099NX4CS (4954025402C005) Diagram

#

Description
Price

-

HOUSING (Incl. 1-8)

1500263

$103.19

-

RESERVOIR,ASM,W/GROOVE [No Longer Available] (Incl. 1-18)

1500329

Unavailable

1

Screw

1500223

$2.23

2

KNOB-DAMP ADJUST

1500224

$30.95

3

O-Ring

1500253

$1.49

4

BALL-AIR VALVE

1500226

$1.75

5

SPRING-AIR VALVE

1500225

$3.32

6

DRUM COMP.

1500254

$40.79

7

O-Ring

1500227

$1.49

8

SEAL,O-RING

1500228

Unavailable

9

RESERVOIR,W/GROOVE [No Longer Available]

1500325

Unavailable

10

SCREW/O-RING ASM.

1500161

Unavailable

11

PISTON,FLOAT,ASM.

1500235

$49.59

12

RING,RETAINING

1500236

$9.59

13

SCREW Substituted by 1500019

1500232

Unavailable

14

RES.END CAP ASM.

1500231

Unavailable

15

BEARING,EXTERNAL

1500230

$31.99

16

SEAL,O-RING

1500229

$4.92

17

PLATE,DAMPING,4-HOLE

1500324

$50.00

18

RING,RETAINING

1500233

$3.75
