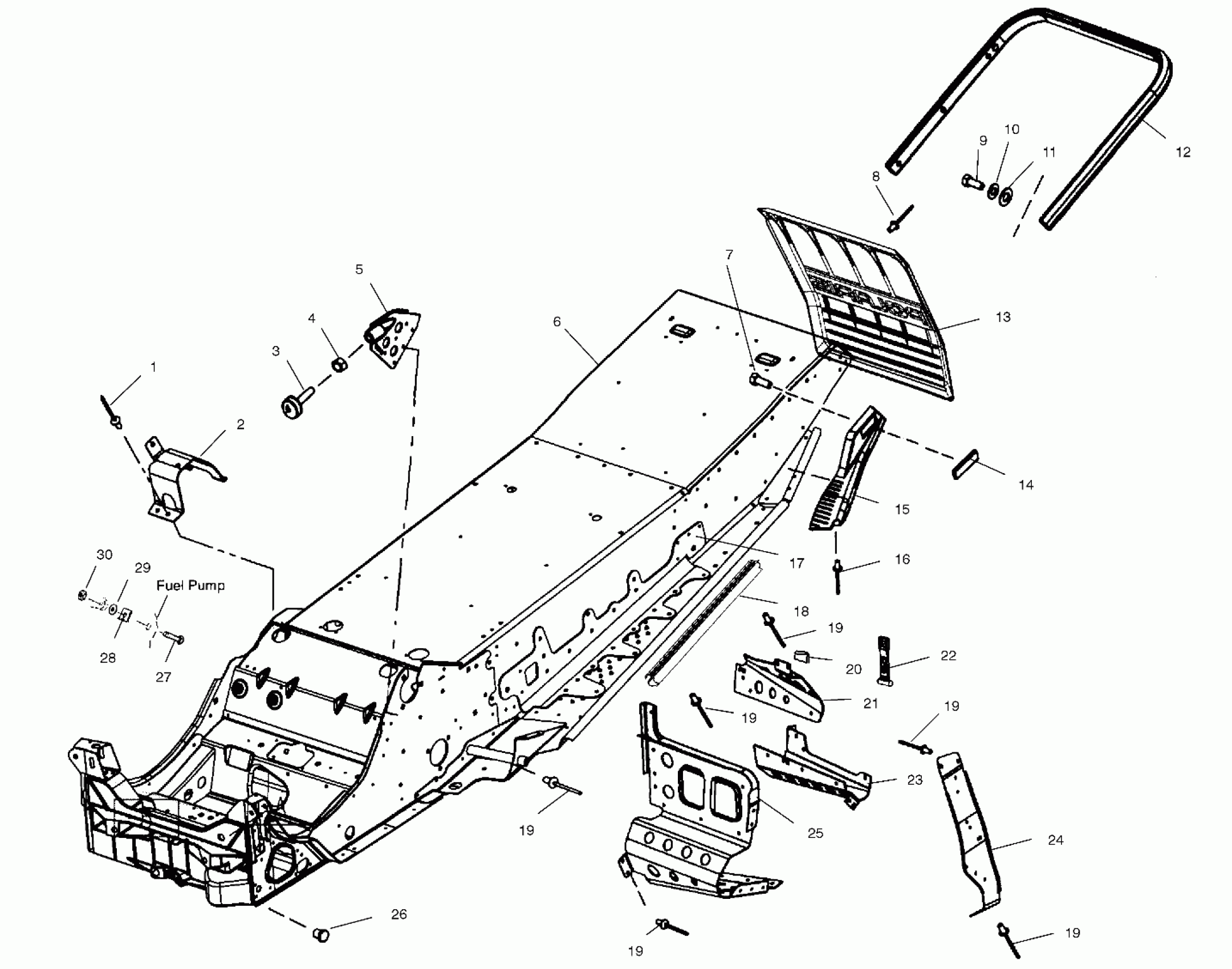

Polaris 440 XC SP - S00NX4CS CHASSIS - S00NX4CS (4954025402A005) Diagram

#

Description
Price

1

RIVET(50)

7621453

$3.19

2

BRKT,JACKSHAFT SHIELD Substituted by 5245003

5243061

$13.10

3

STOP,TORQUE COURSE 3/8-16

3021104

$20.22

4

NUT(10)

7542404

$1.59

5

WELD-TORQUE STOP

1013067

Unavailable

6

CHASSIS,ASM,440 W/BLKHD Substituted by 2201841 (Incl. 17)

1013131

Unavailable

7

SCREW(10)

7512068

$2.39

8

POP RIVET(50)

7621418

$1.49

9

BOLT(10)

7512240

$3.99

10

LOCK WASHER(10)

7552801

$1.59

11

WASHER(10)

7558301

$1.49

12

BUMPER,REAR Substituted by 2632165-309

2632165

Unavailable

13

FLAP,SNOW,EDGE,BLK W/CHROME

5433521-1106

Unavailable

14

REFLECTOR ASM,RED

2670133

$5.75

15

SKIRT,SNOW,EDGE,LH Substituted by 5433519-070

5433519

$36.83

15

SKIRT,SNOW,EDGE,RH Substituted by 5433520-070

5433520

$55.56

16

RIVET(50)

7621472

$1.49

17

BRACE-TUNNEL,CORNER,FSHBONE,LH

5244060

$58.39

17

BRACE-TUNNEL,CORNER,FSHBONE,RH

5244061

$58.39

18

GRIP,TUNNEL ROLL

5244351

$37.91

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

19

RIVET-3/16-.090-.290

7661637

$1.49

20

EXTRUSION,CLUTCHGUARD

5521238

$6.46

21

MOUNT-CONSOLE,LH

5243939

$20.48

21

MOUNT-CONSOLE,RH

5243940

$21.43

22

STRAP-AIRBOX TOP

5433150

$24.27

23

FOOTREST UPPER-TOE CLIP,LH

5243153

$33.91

23

FOOTREST UPPER-TOE CLIP,RH

5243154

$38.71

24

SUPPORT-FOOTREST,LH

5242741

$19.68

24

SUPPORT-FOOTREST,RH

5242742

$32.37

25

Footrest, RH

5242740

Unavailable

25

FOOTREST, LH Substituted by 5245288

5242739

Unavailable

26

PLUG, HOLE(10)

7080416

$5.65

27

BOLT-CARRIAGE(10)

7512275

$3.99

28

SPEED NUT(10)

7670021

$6.99

29

WASHER,NYLON

7555932

$2.39

30

NUT-LOCK(10)

7542122

$1.49
