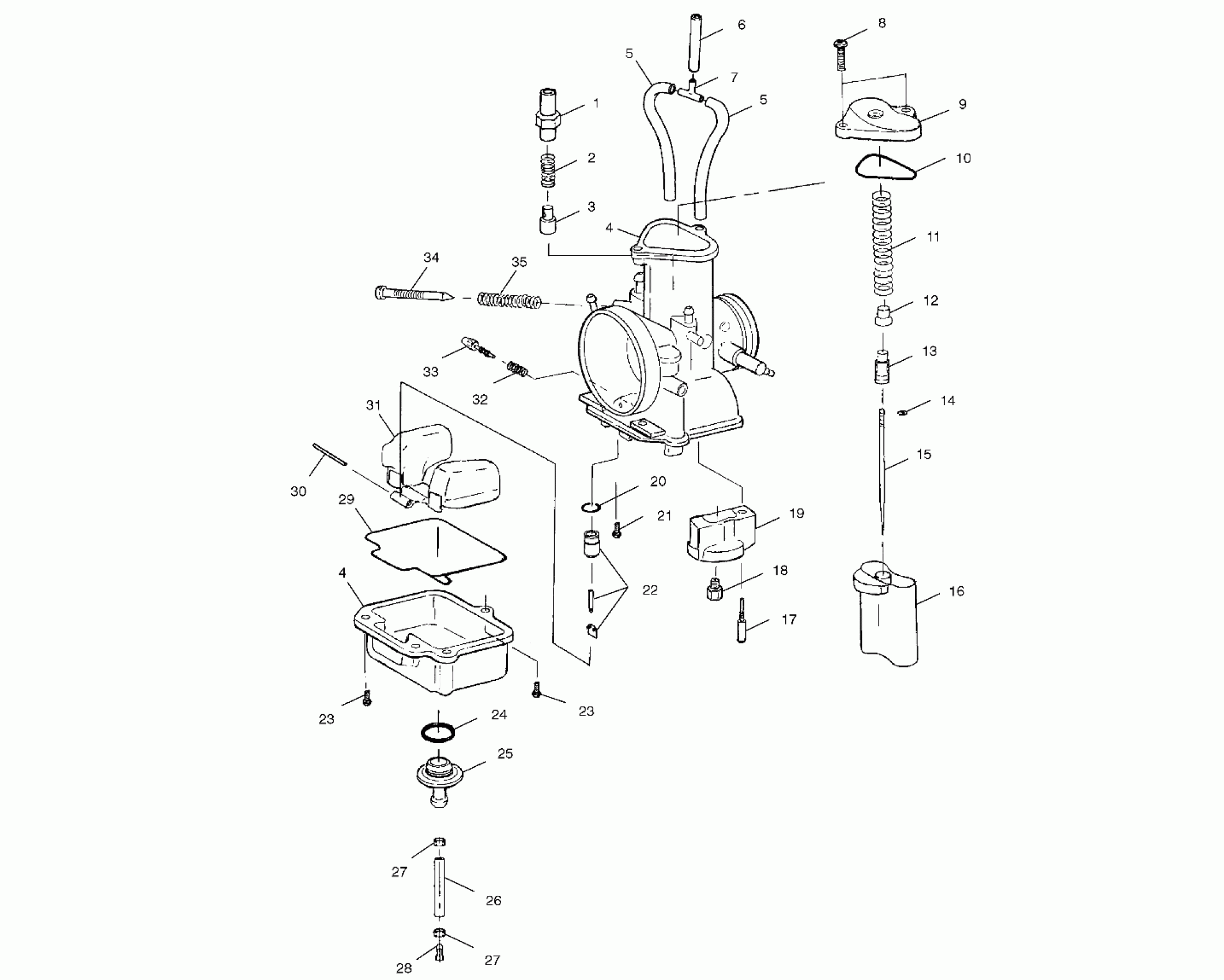

Polaris 440 XC SP - S00NX4CS CARBURETOR - S00NX4CS (4954025402C014) Diagram

#

Description
Price

1

HOLDER,GUIDE

3131086

$15.87

2

SPRING,STARTER

3130829

$12.94

3

Plunger

3131100

Unavailable

4

CARB,ASM,34MM,'00 440XCR (Incl. 1-3,8-25,29-35)

1253299

Unavailable

4

CARB,ASM,34MM,'00 440XCR (Incl. 1-3,8-25,29-35)

1253299

Unavailable

5

HOSE,VM36/106

3131235

Unavailable

5

HOSE,VM36/106

3131235

Unavailable

6

HOSE

3130994

Unavailable

7

T-FITTING,792-23040

3131237

$9.91

8

Screw

3131066

Unavailable

9

CAP,MIXING CHAMBER TOP

3131136

$63.79

10

O-Ring

3131138

$18.99

11

Spring

3131106

Unavailable

12

SPRING,PV,RING

3131054

$6.35

13

Guide Holder

3131053

$25.59

14

E-Ring

3130868

$8.89

15

NEEDLE,JET 6FEY02-60 (6FEY02-60)

3131241

$15.67

16

PISTON VALVE CUTAWAY,2.0

3131042

$103.19

17

JET,PILOT,#22.5 (#22.5)

3131096

Unavailable

18

JET,MAIN HX.HD#280(10) (#280)

3130131

$7.27

19

Holder

3131056

$38.71

20

Washer

3130949

$3.99

21

Screw

3131089

Unavailable

22

NEEDLE VALVE ASM.

3131062

$60.70

23

SCREW

3130933

$2.39

23

SCREW

3130933

$2.39

24

O RING

3130239

Unavailable

25

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

26

FUEL,LINE,ETHER,RED,5/16" [Item NotAvailable]

8350017

Unavailable

27

HOSE CLAMP, RED

7080003

$1.49

27

HOSE CLAMP, RED

7080003

$1.49

28

PLUG,TRAP

5431893

$12.94

29

O-Ring

3131105

$16.17

30

FLOAT PIN

3131060

$4.15

31

Float

3131102

$78.57

32

SPRING,AIR ADJUSTER

3130407

Unavailable

33

SCREW,AIR

3131063

$6.75

34

Adjuster

3131088

$12.39

35

Spring

3131087

$3.97
