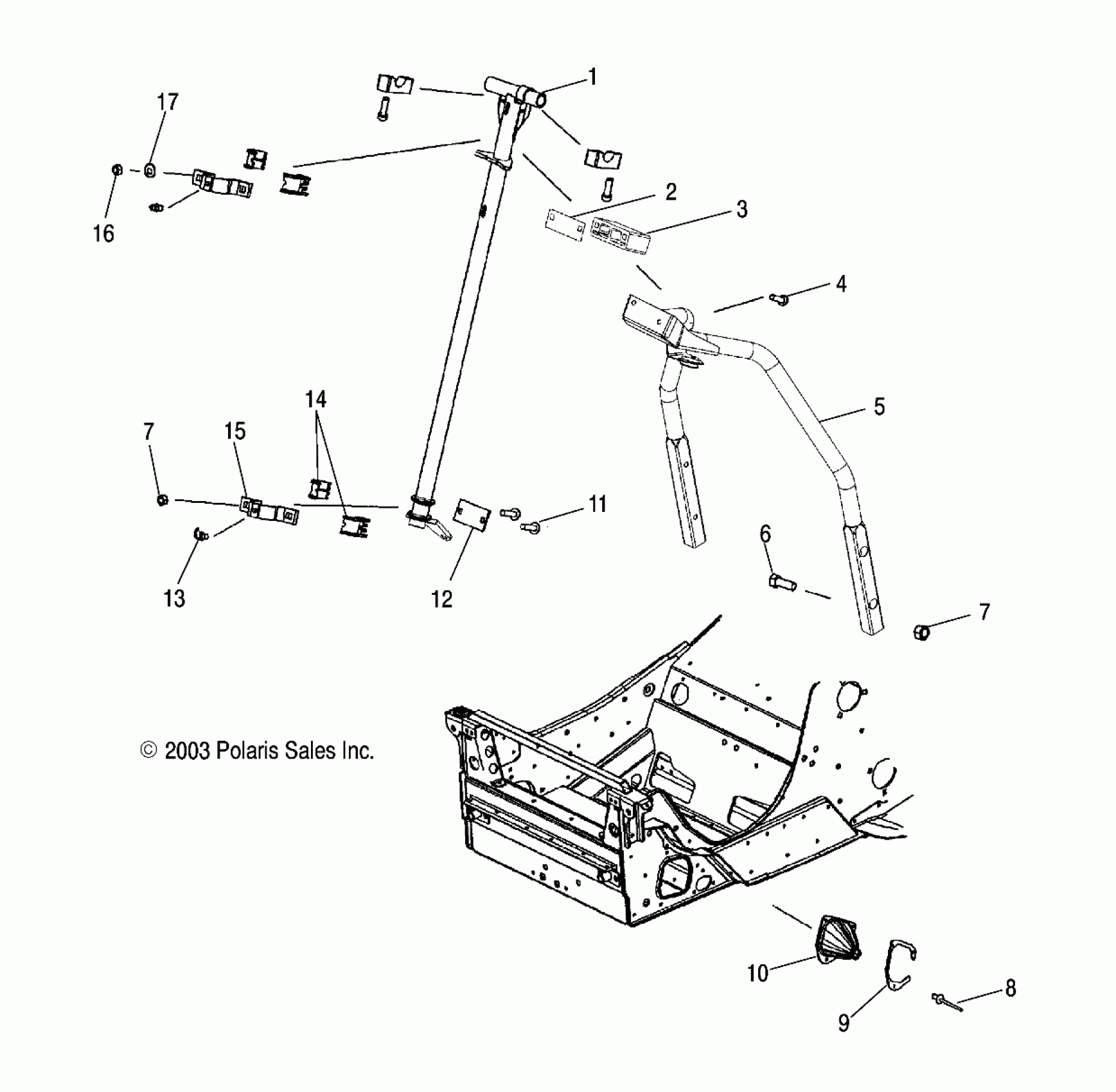

Polaris 440 PRO XR - S04NX4CS STEERING POST MOUNTING - S04NX4CS/CE (4988778877B04) Diagram

#

Description
Price

1

Post, Steering

1821501-067

Unavailable

2

Plate, Steering Hoop

5246698

$10.71

3

Block, Steering

5134454

$19.83

4

Screw

7517346

Unavailable

5

Hoop, Steering

1014561-067

Unavailable

6

Bolt, Carriage

7512377

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

Rivet

7621433

$1.49

9

Plate, Tie Rod Boot

5244470

Unavailable

10

Boot, Tie Rod, LH

5433532

Unavailable

10

Boot, Tie Rod, RH

5433533

Unavailable

11

Bolt, Carriage

7515383

Unavailable

12

Support, Steering Bushing

5247857

Unavailable

13

Fitting, 90 Degree

7080510

$5.59

14

Bushing, Steering Post

5434775

$6.39

15

BRACKET, STEERING POST

5132967

$36.41

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

WASHER-.344X.688X.063 FL-Y

7558402

$1.49
