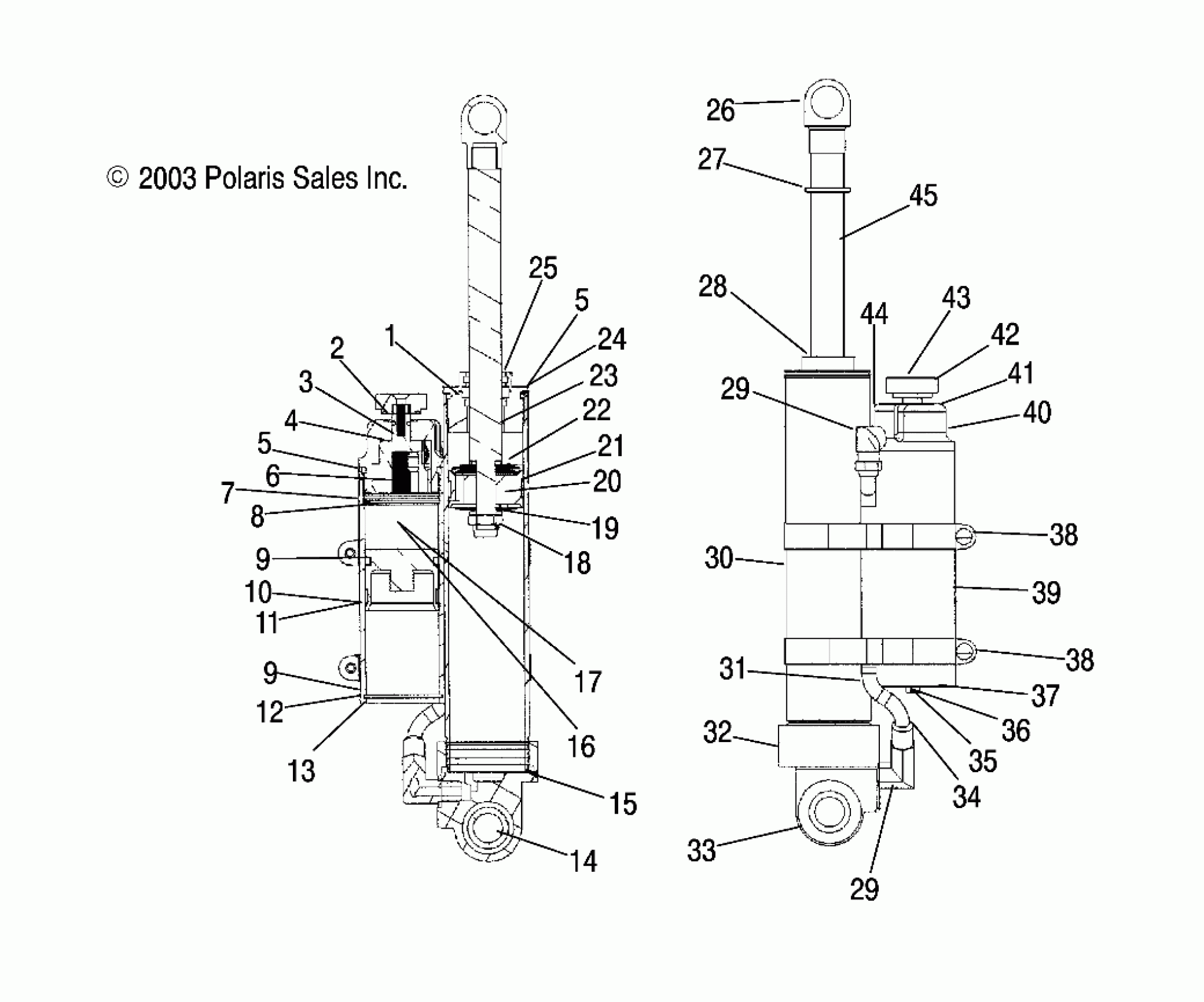

Polaris 440 PRO XR - S04NX4CS SHOCK, REAR TRACK - S04NX4CS/CE (4988778877C04) Diagram

#

Description
Price

-

Shock, Rear Track

7042295

Unavailable

1

Seal, Shaft

1800207

$49.59

2

O-Ring

1800129

Unavailable

3

O-Ring

1800094

$1.49

4

Valve, Shim

1800052

Unavailable

5

O-Ring Body

1800027

$2.02

5

O-Ring Body

1800027

$2.02

6

Drum

1800202

$91.99

7

Valve, Shim

1800091

$4.95

8

WASHER

1800204

$3.99

9

Reservoir, O-Ring

1800028

$1.60

9

Reservoir, O-Ring

1800028

$1.60

10

Band, Wear

1800029

Unavailable

11

Piston, Reservoir w/Bleed Screw

1800189

$45.59

11

Bleed Screw w/O-Ring

1800190

$1.67

12

RING, SNAP, RESERVOIR

1800019

$6.46

13

End, Cap

1800106

Unavailable

14

SLEEVE

1800032

$19.99

15

O-RING BODY LOOP

1800030

$2.02

16

Bolt, Ball Check

1800124

$9.51

17

Ball, Check

1800125

$0.95

18

Nut

1800031

$3.99

19

WASHER

1800050

$3.99

20

Asm., Piston w/Band

1800200

$103.19

21

Band, Wear

1800026

Unavailable

22

Washer

1800118

$3.59

23

BUSHING, SHAFT

1800038

$12.79

24

O-Ring Shaft Seal Head

1800037

$1.60

25

WIPER, D-TYPE

1800034

$31.99

26

Shaft, Eyelet

1800096

$101.17

27

O-RING

1800095

$1.49

28

Asm., Shaft Seal Housing

1800131

Unavailable

29

Elbow

1800113

$29.99

29

Elbow

1800113

$29.99

30

Body

1800101

$102.38

31

Hose

1800212

Unavailable

32

Loop, Body

1800097

$107.19

33

BUSHING

1800036

Unavailable

34

Fitting

1800115

$38.63

35

Screw

1800109

$3.19

36

Valve, Needle

1800107

$16.35

37

O-Ring

1800108

$1.49

38

CLAMP, HOSE

1800022

$12.79

38

CLAMP, HOSE

1800022

$12.79

39

Reservoir, Body

1800213

$74.39

40

Housing, Adjustor

1800126

$91.19

41

BALL, D-TENT

1800127

$6.39

42

Knob

1800123

Unavailable

43

SCREW

1800196

$3.99

44

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

45

Shaft

1800010

$99.21
