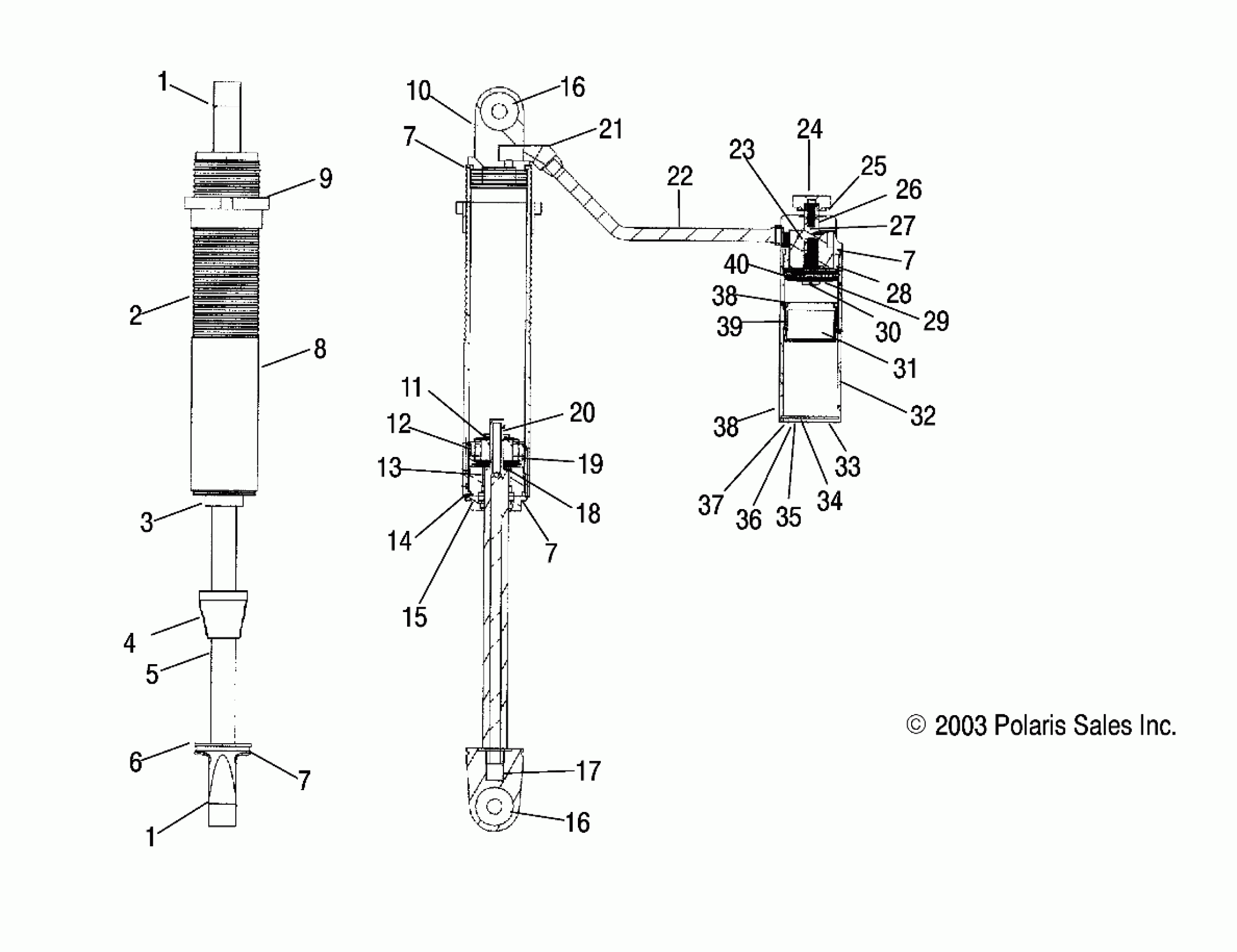

Polaris 440 PRO XR - S04NX4CS SHOCK, IFS - S04NX4CS/CE (4988778877C02) Diagram

#

Description
Price

-

Shock, IFS

7042293

$669.99

1

RING, SNAP, END BEARING

1800041

$7.27

1

RING, SNAP, END BEARING

1800041

$7.27

2

Body, Threaded, IFS

1800100

$87.30

3

Asm., Shaft Seal Housing

1800208

$119.99

4

BUMPER

1800201

Unavailable

5

Shaft

1800102

Unavailable

6

SPRING, RETAINING RING

1800116

$60.70

7

O-Ring Body

1800027

$2.02

7

O-Ring Body

1800027

$2.02

7

O-Ring Body

1800027

$2.02

7

O-Ring Body

1800027

$2.02

8

Sleeve, Wear

1800191

Unavailable

9

RETAINER, SPRING

1800046

$36.41

10

Body, Loop

1800098

Unavailable

11

WASHER

1800050

$3.99

12

Asm., Piston w/Band

1800197

$82.39

13

BUSHING, SHAFT

1800038

$12.79

14

Seal, Shaft

1800207

$49.59

15

WIPER, D-TYPE

1800034

$31.99

16

BEARING, END

1800040

$94.99

16

BEARING, END

1800040

$94.99

17

Eyelet, Shaft

1800103

Unavailable

18

WASHER

1800204

$3.99

19

Band, Wear

1800026

Unavailable

20

Nut

1800031

$3.99

21

FITTING, 90 DEGREE

1800205

$55.99

22

Hose, 9 Inch

1800206

$74.39

23

Drum

1800202

$91.99

24

Screw

1800203

$2.39

24

Knob

1800123

Unavailable

25

BALL, D-TENT

1800127

$6.39

25

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

25

Housing, Adjustor

1800126

$91.19

25

O-Ring

1800129

Unavailable

26

O-Ring

1800094

$1.49

27

Valve, Shim

1800052

Unavailable

28

Ball, Check

1800125

$0.95

29

Valve, Shim

1800091

$4.95

30

Bolt, Ball Check

1800124

$9.51

31

Band, Wear

1800029

Unavailable

32

Body, Reservoir

1800120

$89.03

33

RING, SNAP, RESERVOIR

1800019

$6.46

34

Valve, Needle

1800107

$16.35

35

O-Ring

1800108

$1.49

36

Screw

1800109

$3.19

37

End, Cap

1800106

Unavailable

38

Reservoir, O-Ring

1800028

$1.60

38

Reservoir, O-Ring

1800028

$1.60

39

Piston, Reservoir w/Bleed Screw

1800189

$45.59

39

Bleed Screw, w/O-Ring

1800190

$1.67

40

Washer

1800118

$3.59
