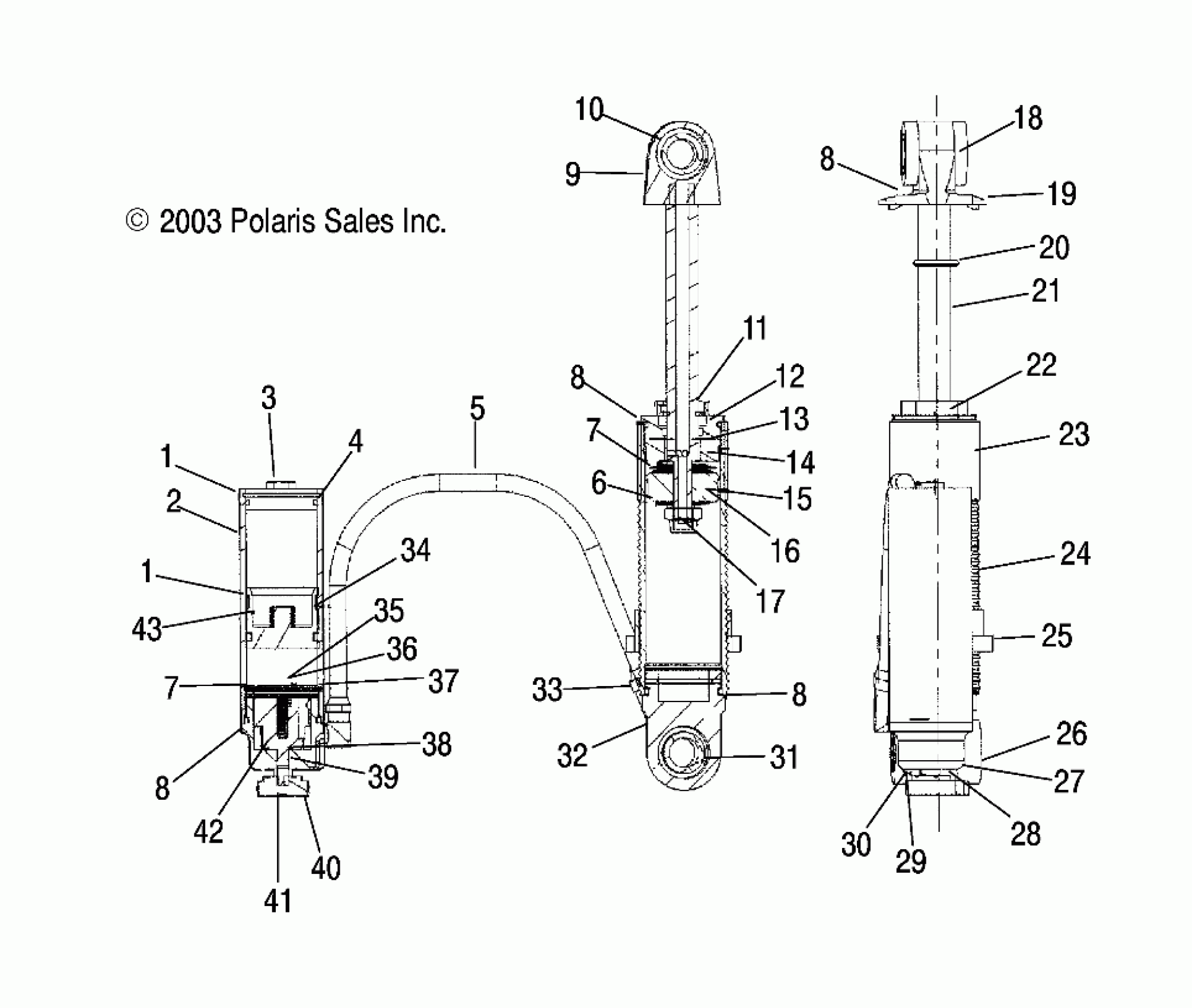

Polaris 440 PRO XR - S04NX4CS SHOCK, FRONT TRACK - S04NX4CS/CE (4988778877C03) Diagram

#

Description
Price

-

Shock, Front Track

7042294

$474.99

1

Reservoir, O-Ring

1800028

$1.60

1

Reservoir, O-Ring

1800028

$1.60

2

Body, Reservoir

1800120

$89.03

3

O-Ring

1800108

$1.49

3

Screw

1800109

$3.19

3

Valve, Needle

1800107

$16.35

3

End, Cap

1800106

Unavailable

4

RING, SNAP, RESERVOIR

1800019

$6.46

5

Asm., Hose

1800111

$119.05

6

WASHER

1800050

$3.99

7

Washer

1800118

$3.59

7

Washer

1800118

$3.59

8

O-Ring Body

1800027

$2.02

8

O-Ring Body

1800027

$2.02

8

O-Ring Body

1800027

$2.02

8

O-Ring Body

1800027

$2.02

9

Shaft, Eyelet

1800104

Unavailable

10

SLEEVE

1800032

$19.99

11

WIPER, D-TYPE

1800034

$31.99

12

Seal, Shaft

1800207

$49.59

13

O-Ring Shaft Seal Head

1800037

$1.60

14

BUSHING, SHAFT

1800038

$12.79

15

Band, Wear

1800026

Unavailable

16

Asm., Piston w/Band

1800200

$103.19

17

Nut

1800031

$3.99

18

BUSHING

1800036

Unavailable

19

SPRING, RETAINING RING

1800116

$60.70

20

O-RING

1800095

$1.49

21

Shaft

1800015

$71.43

22

Asm., Shaft Seal Housing

1800131

Unavailable

23

Sleeve, Wear

1800047

$36.41

24

Body, Threaded

1800105

$91.27

25

RETAINER, SPRING

1800046

$36.41

26

BUSHING

1800033

$19.99

27

Housing, Adjustor

1800126

$91.19

28

BALL, D-TENT

1800127

$6.39

29

SPRING-COMP .025X.3, 40.5#

1800128

$10.39

30

O-Ring

1800129

Unavailable

31

Sleeve

1800039

$15.99

32

Body, Loop

1800099

Unavailable

33

FITTING, 90 DEGREE

1800205

$55.99

34

Band, Wear

1800029

Unavailable

35

Ball, Check

1800125

$0.95

36

Bolt, Ball Check

1800124

$9.51

37

Valve, Shim

1800091

$4.95

38

Valve, Shim

1800052

Unavailable

39

O-Ring

1800094

$1.49

40

Knob

1800123

Unavailable

41

Screw

1800203

$2.39

42

Drum

1800202

$91.99

43

O-Ring Bleed Screw

1800210

$1.59

43

Screw, Bleed

1800211

$2.23

43

Piston, Reservoir w/Bleed Screw

1800209

$38.71
