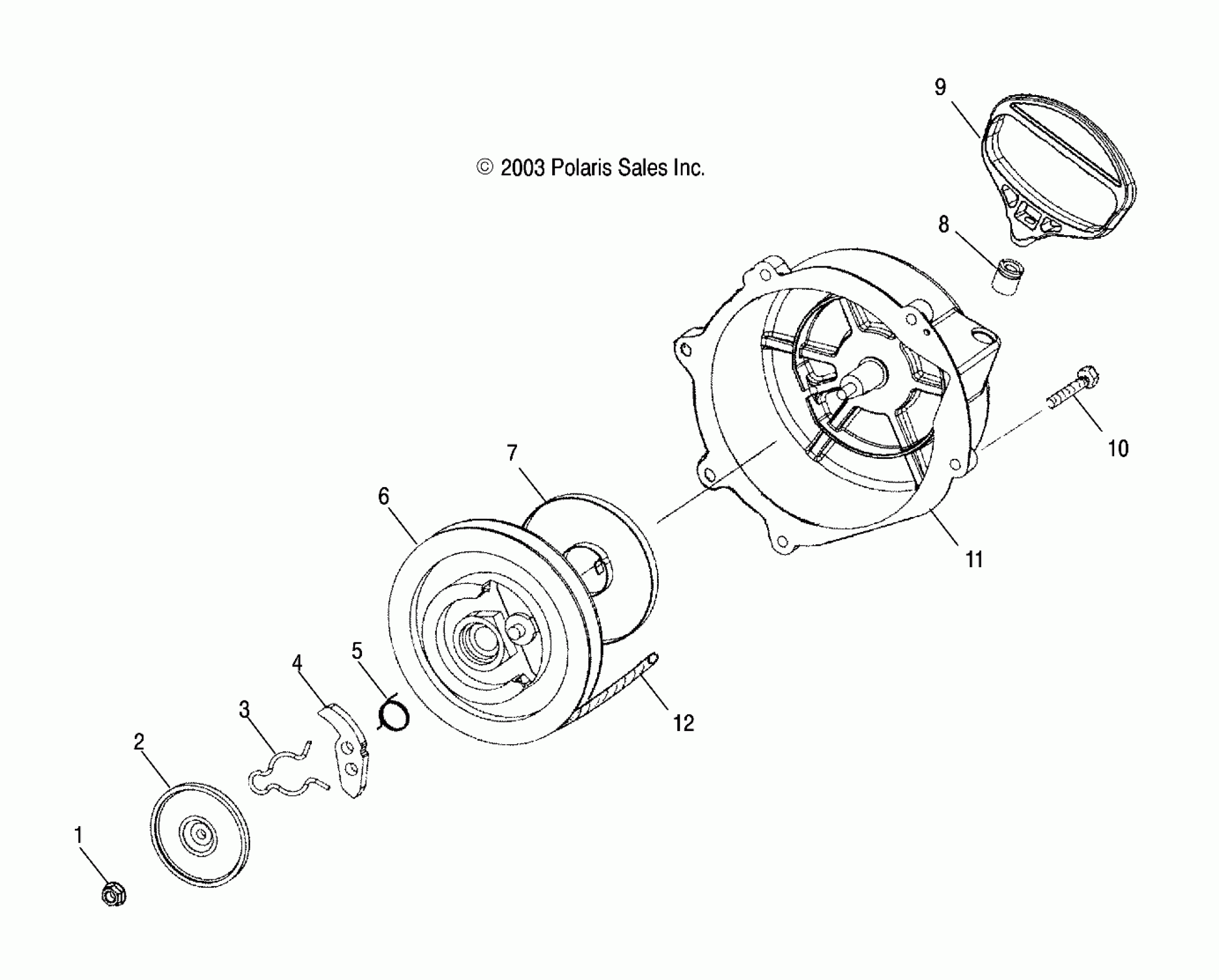

Polaris 440 PRO XR - S04NX4CS RECOIL STARTER - S04NX4CS/CE (4988778877D01) Diagram

#

Description
Price

-

Asm., Recoil [Incl. 1-7,11,12]

1202382

$119.99

1

Nut

3040163

Unavailable

2

Plate, Friction

3040164

Unavailable

3

Spring, Friction

3040167

Unavailable

4

Ratchet

3040165

Unavailable

5

Spring, Return

3040166

Unavailable

6

Reel

3040168

$44.51

7

Spring, Spiral

3040170

Unavailable

8

BUSHING,ROPE SLIDE

3040171

$3.48

9

Recoil, Handle

5431499-070

$15.48

10

SCREW

7516827

$6.39

11

Housing, Recoil Starter

5630645

Unavailable

12

ROPE, STARTER

3040169

Unavailable
