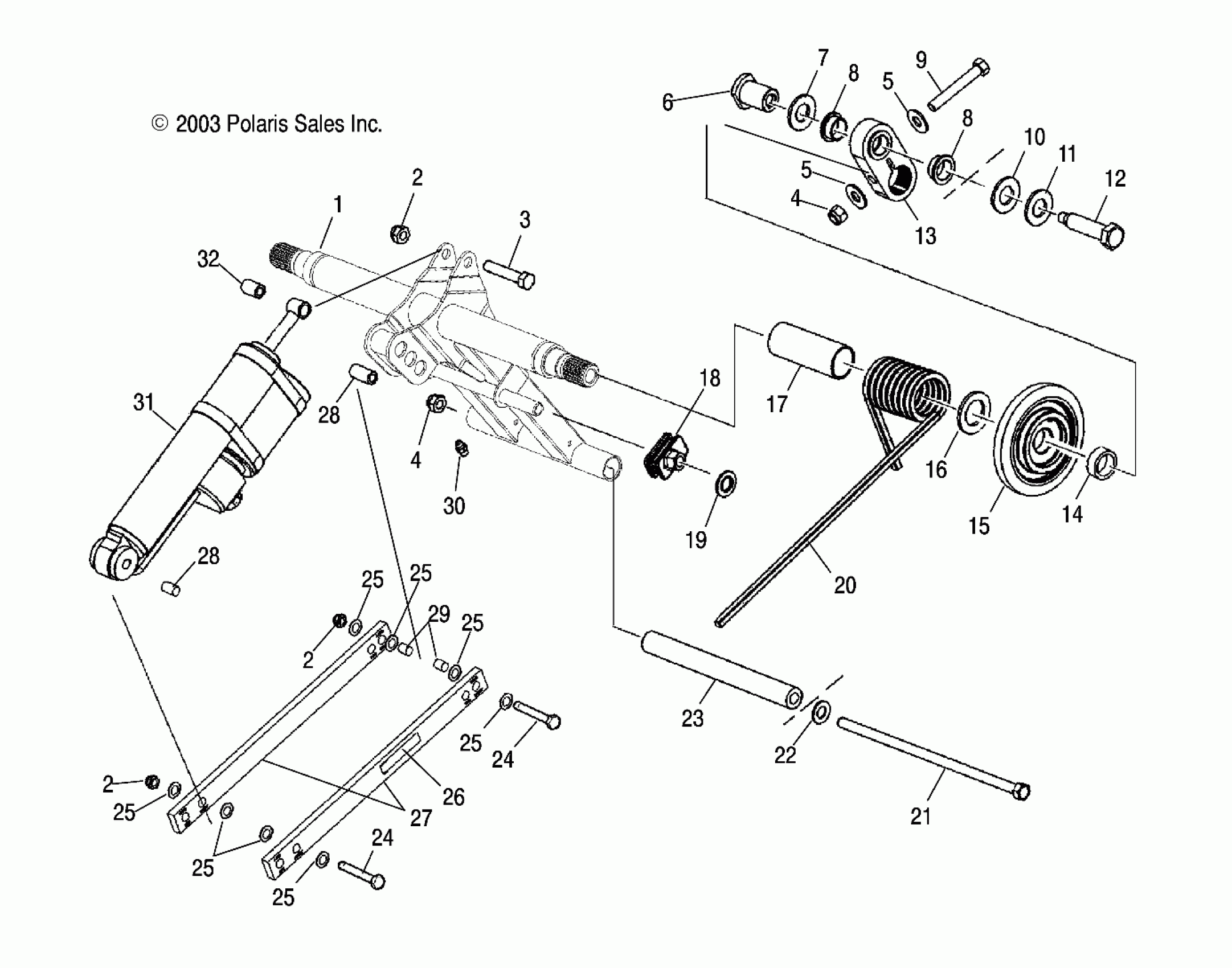

Polaris 440 PRO XR - S04NX4CS REAR TORQUE ARM - S04NX4CS/CE (4988778877B13) Diagram

#

Description
Price

1

Arm, Torque, Rear

1542017-067

$263.99

2

Nut, FLEXLOC

7542411

$3.19

2

Nut, FLEXLOC

7542411

$3.19

2

Nut, FLEXLOC

7542411

$3.19

3

SCREW

7512410

Unavailable

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

WASHER, FLAT

7556188

$3.19

5

WASHER, FLAT

7556188

$3.19

6

Shaft, Arm

5132972

Unavailable

7

Washer

7555945

$7.99

8

Bushing, Arm

3514331

$19.99

8

Bushing, Arm

3514331

$19.99

9

Screw

7515415

$1.49

10

Washer

7555984

$2.39

11

WASHER-LOCK, 7/16-B

7552614

$1.59

12

Screw

7517917

Unavailable

13

Asm., Arm [Incl. 8]

1541974

Unavailable

14

Spacer, Wheel

5132388

Unavailable

15

ASM., CARRIER WHEEL

1590343

$72.84

16

WASHER, THRUST

7555787

Unavailable

17

Sleeve, Torsion

5434502

$5.83

18

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

19

CLIP-PUSH ON

7080394

$2.39

20

Spring, Torsion, .347/77, RH

7042102-067

Unavailable

20

Spring, Torsion, .347/77, LH

7042101-067

$113.32

21

Screw

7517232

$19.99

22

Washer, Flat

7555806

$1.49

23

Shaft

5334025

$48.56

24

Screw

7517851

$6.39

24

Screw

7517851

$6.39

25

Washer, Flat

7555797

$3.99

25

Washer, Flat

7555797

$3.99

25

Washer, Flat

7555797

$3.99

25

Washer, Flat

7555797

$3.99

25

Washer, Flat

7555797

$3.99

25

Washer, Flat

7555797

$3.99

25

Washer, Flat

7555797

$3.99

26

Decal, Shock Rod Adjustment

7172209

Unavailable

27

Rod, Shock

5247841

$13.99

28

Sleeve

5334475

$19.99

28

Sleeve

5334475

$19.99

29

Spacer

5334482

$3.99

30

FITTING-LUBRICATION 1/4-28

7080424

$4.79

31

Shock, Rear Track

7042295

Unavailable

32

BUSHING

5010422

$11.99
