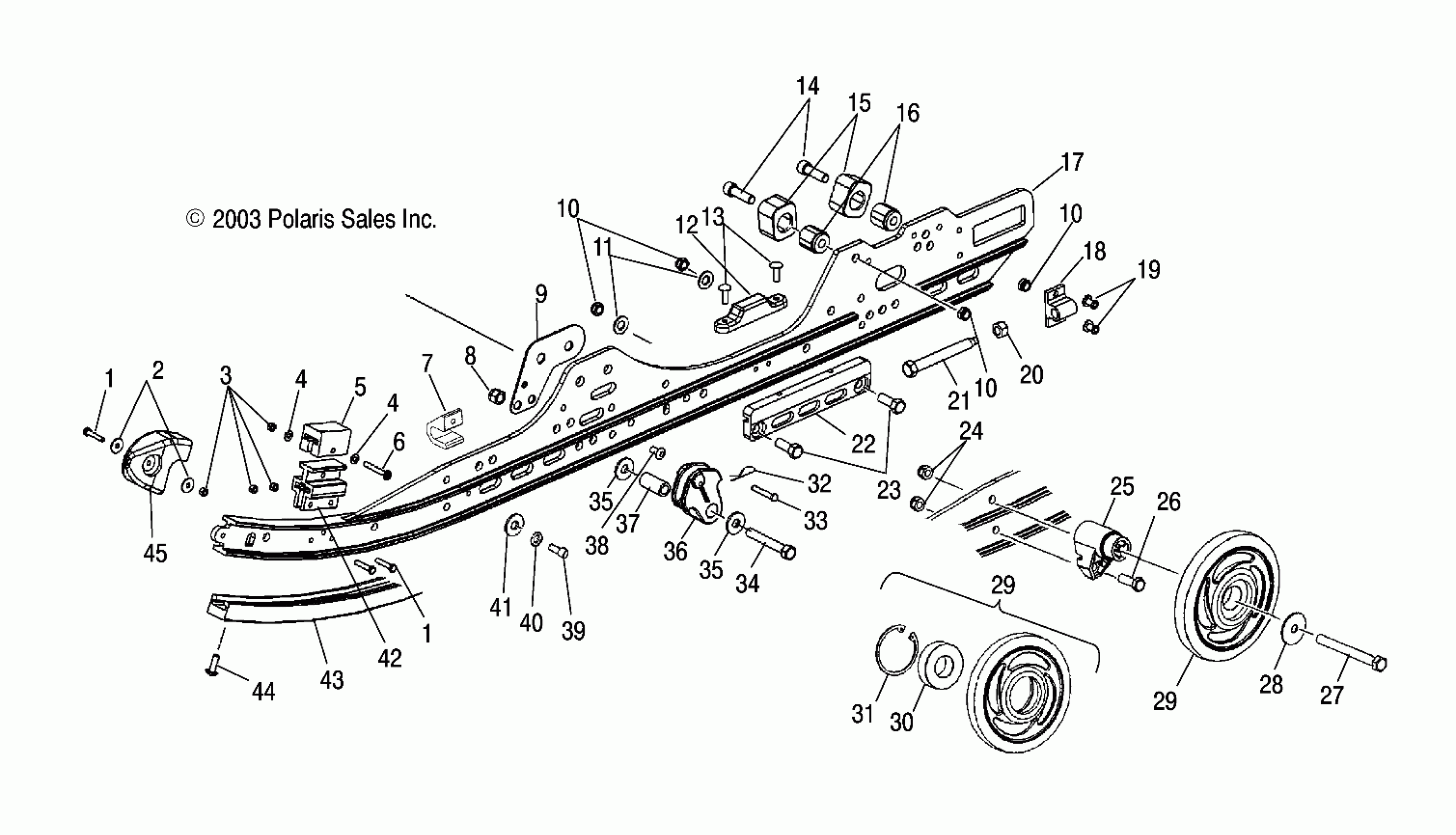

Polaris 440 PRO XR - S04NX4CS RAIL MOUNTING (SUSPENSION) - S04NX4CS/CE (4988778877B10) Diagram

#

Description
Price

1

BOLT

7512007

$3.99

1

BOLT

7512007

$3.99

2

WASHER

7555792

$4.79

3

Nut, Nylok

7541925

$1.49

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, FRONT, JOUNCE

5521499

$8.89

6

Screw

7510504

$6.76

7

Clamp, Hose

5132997

$13.19

8

Nut, Nylok

7542439

$1.49

9

Bracket, Rail Reinforcement

5245991

$13.19

10

Nut, FLEXLOC

7542411

$3.19

10

Nut, FLEXLOC

7542411

$3.19

11

Washer, Flat

7555806

$1.49

12

BUMPER

5432166

$5.59

13

Screw

7515199

$1.49

14

Bolt

7515545

$5.59

15

BUMPER, PIVOT ARM

5410925

$12.94

16

MOUNT, BUMPER

5131113

$28.32

17

Asm., Rail, 121 LH [Incl. 5,12,18,45]

1542049

Unavailable

17

Asm., Rail, 121 RH [Incl. 5,12,18,45]

1542050

Unavailable

18

Block, Idler Bolt Adjusting

5132444

$28.32

19

RIVET

7621501

$2.39

20

Nut, Jam

7547156

$9.59

21

Screw

7517773

$28.56

22

Plate, Rail Reinforcement

5133359

Unavailable

23

Bolt

7512457

$3.99

24

NUT-5/16-18 NYLOK-Y

7542324

$1.49

25

Block, Wheel Mount

5631065

$28.32

26

BOLT

7515317

$4.79

27

Screw

7515346

$5.59

28

Washer, Spring

7556179

$7.99

29

Asm., Wheel Scrolled [Incl. 30,31]

1590318-293

Unavailable

29

Asm., Wheel Scrolled [Incl. 30,31]

1590318-293

Unavailable

30

BEARING [1 PER WHEEL]

3514303

$11.99

31

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

32

PIN, HITCH

7661644

$2.39

33

Pin, Clevis

7661123

$3.99

34

Bolt

7515438

$4.79

35

WASHER

7555983

Unavailable

35

WASHER

7555983

Unavailable

36

Guide, Spring Wire

5434389

$28.32

37

SPACER

5333948

$6.39

38

RIVET

7661845

$1.49

39

Screw

7512014

$3.59

40

Washer, Lock

7552615

$4.99

41

Washer, Flat

7555783

$3.99

42

Block, Jounce

5134386

$7.43

43

Hifax

5521632

$39.98

44

Screw

7515199

$1.49

45

Cap, Rail Tip

5434355

Unavailable
