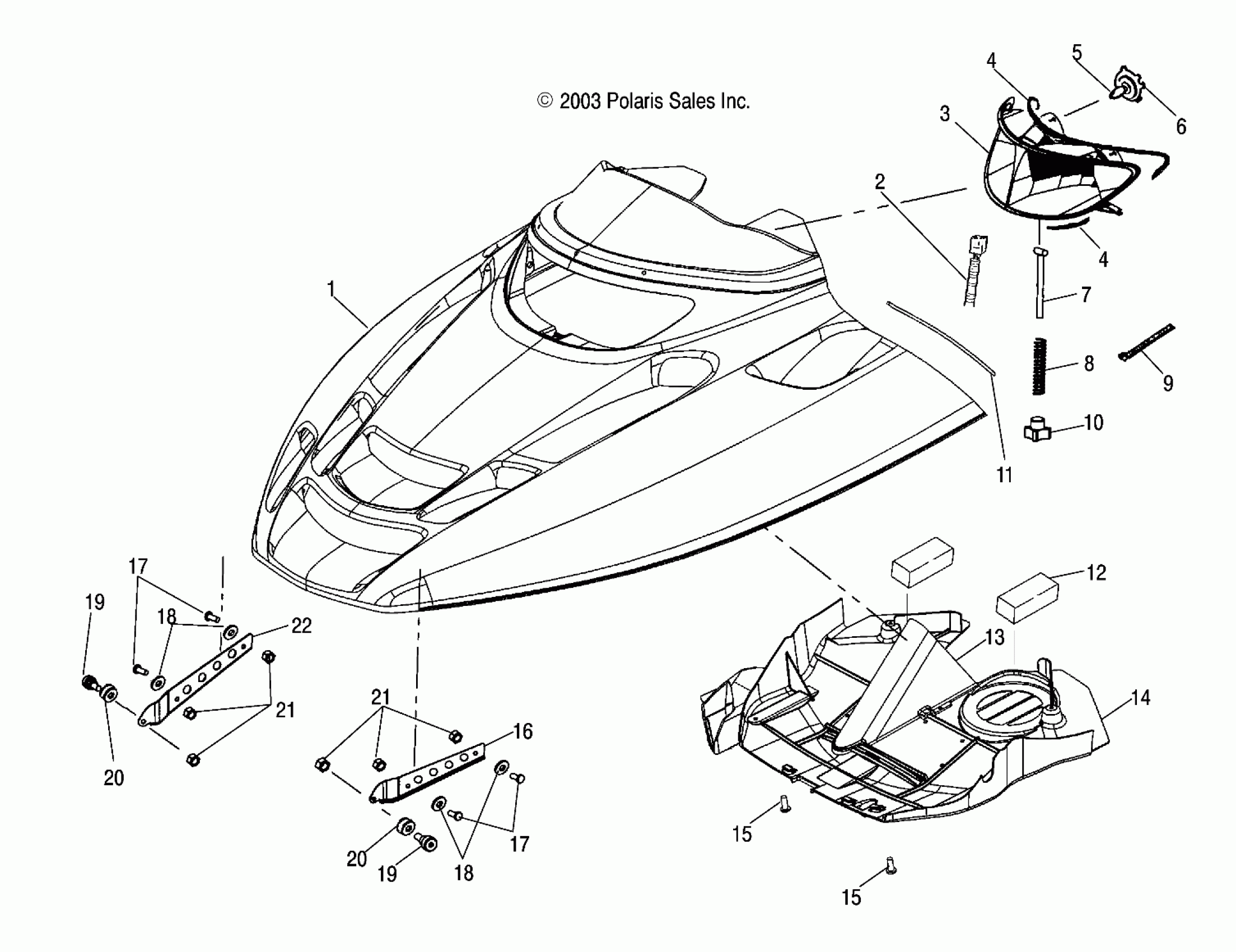

Polaris 440 PRO XR - S04NX4CS HOOD - S04NX4CS/CE (4988778877A08) Diagram

#

Description
Price

1

Asm., Hood [Incl. Foam and Foil]

2632943-293

Unavailable

2

Harness, Headlight

2460791

$65.87

3

Asm., Headlamp [Incl. Bulbs]

2410132

Unavailable

4

Seal, Headlight, One Piece

5812450

$44.99

4

Seal, Headlight, One Piece

5812450

$44.99

5

BULB, HEADLIGHT

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Bolt, Tee Adjuster

7517872

Unavailable

8

Spring, Headlight Adjust

7041954

$3.22

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

11

Trim, Hood, Edge w/Adhesive

8360061-38.5

Unavailable

12

Foam, Hood/Plenum

5812611

$4.92

13

RIVET

7621485

$1.49

13

Cover, Plenum

5430004

Unavailable

14

Foil

5811948

Unavailable

14

Foil, Plenum

5812324

Unavailable

14

Asm., Plenum [Incl. 13]

2632944

$111.99

14

Foam, Plenum Seal

5812595

Unavailable

15

SCREW

7512068

$2.39

15

SCREW

7512068

$2.39

16

Hinge, Upper, LH

5243567-067

Unavailable

17

BOLT

7512240

$3.99

17

BOLT

7512240

$3.99

18

Washer, Flat

7558301

$1.49

18

Washer, Flat

7558301

$1.49

19

Bolt

7512113

$3.99

19

Bolt

7512113

$3.99

20

Spacer

5332403

$4.84

20

Spacer

5332403

$4.84

21

Nut, Nylok

7542122

$1.49

21

Nut, Nylok

7542122

$1.49

22

Hinge, Upper, RH

5243568-067

Unavailable
