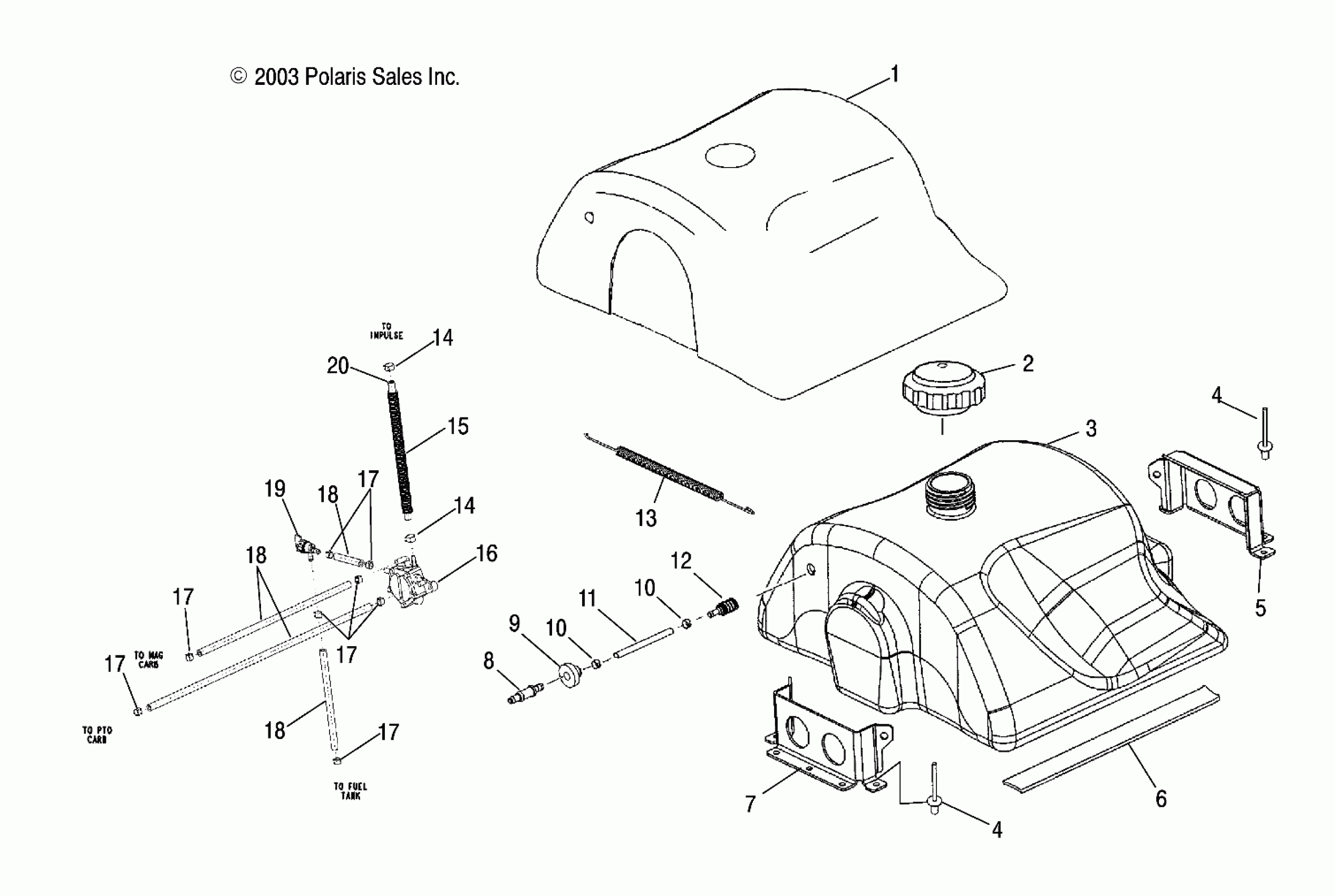

Polaris 440 PRO XR - S04NX4CS GAS TANK - S04NX4CS/CE (4988778877A04) Diagram

#

Description
Price

1

Asm., Tank Cover

2682950

Unavailable

2

CAP, GAS, VENTED

2520296

$60.70

3

Asm., Fuel Tank [Incl. 12]

2520269

Unavailable

4

RIVET-3/16-.090-.290

7661637

$1.49

4

RIVET-3/16-.090-.290

7661637

$1.49

5

Bracket, Tank Hold Down, Rear

5246117

$62.39

6

FOAM-SEAL,REAR COOLER

5810947

$4.03

7

Bracket, Tank Hold Down, Front

5246118

$49.59

8

Fitting

7052321

$8.79

9

Grommet, Tank Fitting

7052028

$6.39

10

RING, COMPRESSION

7080402

$1.60

10

RING, COMPRESSION

7080402

$1.60

11

LINE, FUEL

8350019-600

Unavailable

12

Pickup w/Filter, Fuel

7052301

$12.94

13

Spring, Gas Tank Hold Down

7042133

$9.91

14

HOSE CLAMP, RED

7080003

$1.49

14

HOSE CLAMP, RED

7080003

$1.49

15

TUBING, CONVOLUTED

8360052-305

Unavailable

16

Pump, Fuel

2520306

Unavailable

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

Line, Fuel

8350018-600

Unavailable

18

Line, Fuel

8350018-600

Unavailable

18

Line, Fuel

8350018-600

Unavailable

19

Valve, Fuel

7052249

$24.27

20

Line, Fuel

8450040-600

Unavailable
