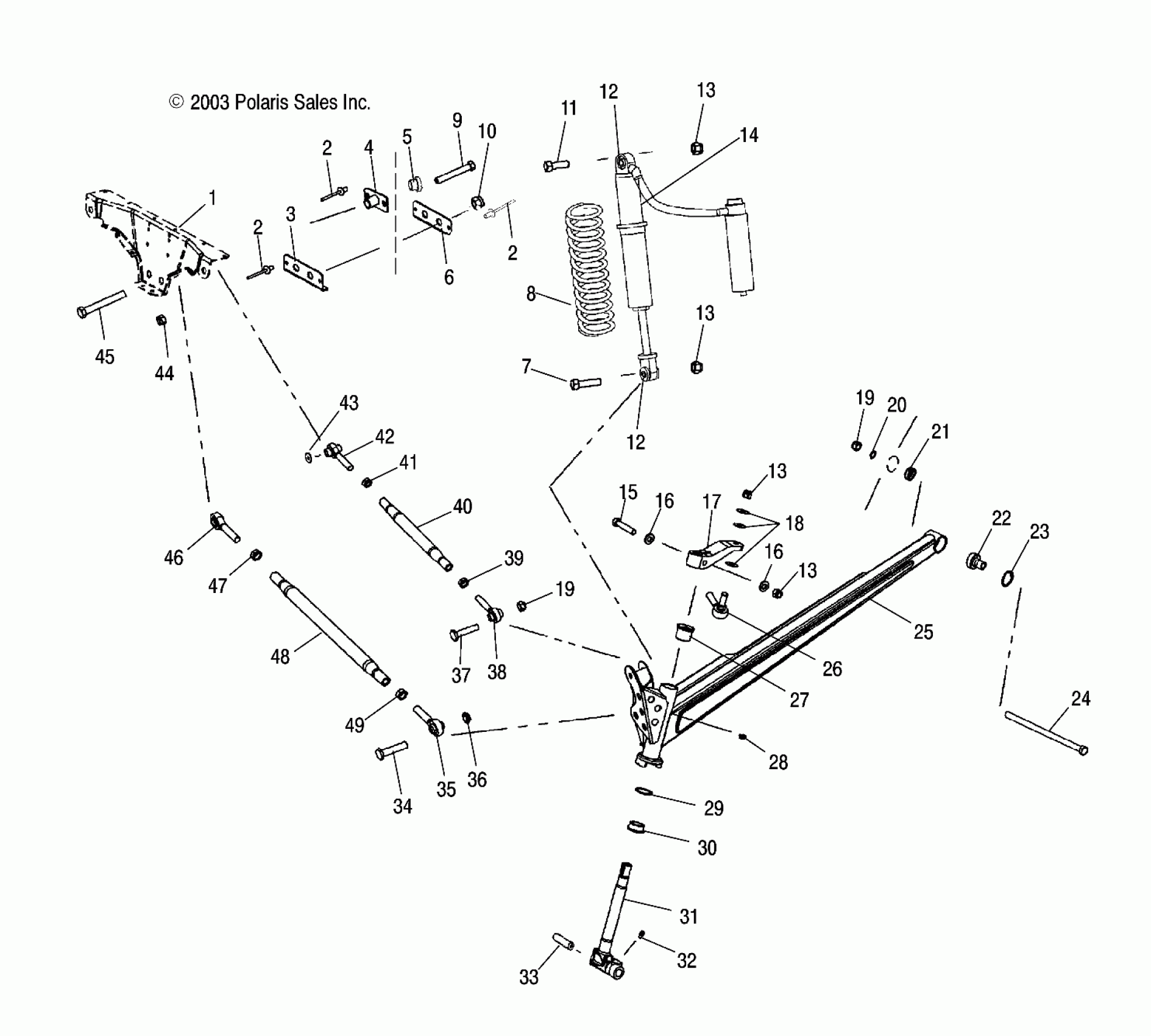

Polaris 440 PRO XR - S04NX4CS FRONT SUSPENSION - S04NX4CS/CE (4988778877B01) Diagram

#

Description
Price

1

BRACKET, RADIUS ROD SUPPORT [SEE NOSEPAN PG. A6, REF. 5]

-------

Unavailable

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

2

RIVET-3/16-.090-.290

7661637

$1.49

3

Bracket, Radius Rod, Lower Strap

5245250

$11.59

4

Support, Radius Rod, Reinforce

1013733

$34.71

5

Bushing, Bulkhead, Upper Radius

5132897

$4.63

6

Plate, Lower, Inner, Radius Rod

5245307

$7.43

7

SCREW

7517583

$4.35

8

Spring, Compression

7042187-293

Unavailable

9

Bolt

7517980

$7.99

10

Nut, FLEXLOC

7542703

Unavailable

11

Screw

7515415

$1.49

12

Spacer

5133320

Unavailable

12

Spacer

5133320

Unavailable

13

Nut, Nylok

7542439

$1.49

13

Nut, Nylok

7542439

$1.49

13

Nut, Nylok

7542439

$1.49

13

Nut, Nylok

7542439

$1.49

14

Shock, IFS

7042293

$669.99

15

Screw

7515433

$1.59

16

WSHR-.813X.406X.105-Y

7555832

$2.39

16

WSHR-.813X.406X.105-Y

7555832

$2.39

17

Steering Arm

2874341

Unavailable

18

Washer, Flat

7555797

$3.99

19

Nut, Nylok

7547066

$1.59

19

Nut, Nylok

7547066

$1.59

20

WASHER, FLAT

7555820

$3.99

21

Cup, Trailing Arm Mount

5133990

$7.19

22

Bearing, Spherical

7061094

Unavailable

23

RING, RETAINER

7710437

$3.19

24

Screw

7512099

$19.99

25

Asm., Trailing Arm, LH [Incl. 22,23]

1821523-293

Unavailable

25

Asm., Trailing Arm, RH [Incl. 22,23]

1821524-293

$226.99

26

Rod End, RH

7061057

$48.56

27

Bushing, Flange

3514376

Unavailable

28

Fitting, Lubrication

7080433

$1.49

29

Bushing

7556207

Unavailable

30

Bushing, Flange

3514377

Unavailable

31

Shaft, Spindle

6230248-067

Unavailable

32

Fitting, Lubrication w/Ball

7080306

$3.19

33

BUSHING, PIVOT

5010158

$19.99

34

Bolt

7517906

Unavailable

35

Rod End, RH

7061106

$43.99

36

Nut, Nylok

7547065

$3.99

37

Bolt

7517907

$4.23

38

Rod End, RH

7061108

Unavailable

39

Nut, Jam

7542520

$2.39

40

Tube, Radius Rod, Upper

5133686

Unavailable

41

Nut, LH

7547117

Unavailable

42

Rod End, LH

7061107

$36.31

43

Washer

7555928

Unavailable

44

Nut, FLEXLOC

7542503

$10.39

45

Bolt

7512656

$6.23

46

Rod End, LH

7061105

Unavailable

47

Nut, Jam, LH

7547028

$2.39

48

Tube, Radius Rod, Lower

5133685

Unavailable

49

Nut, Jam

7542711

$2.39
