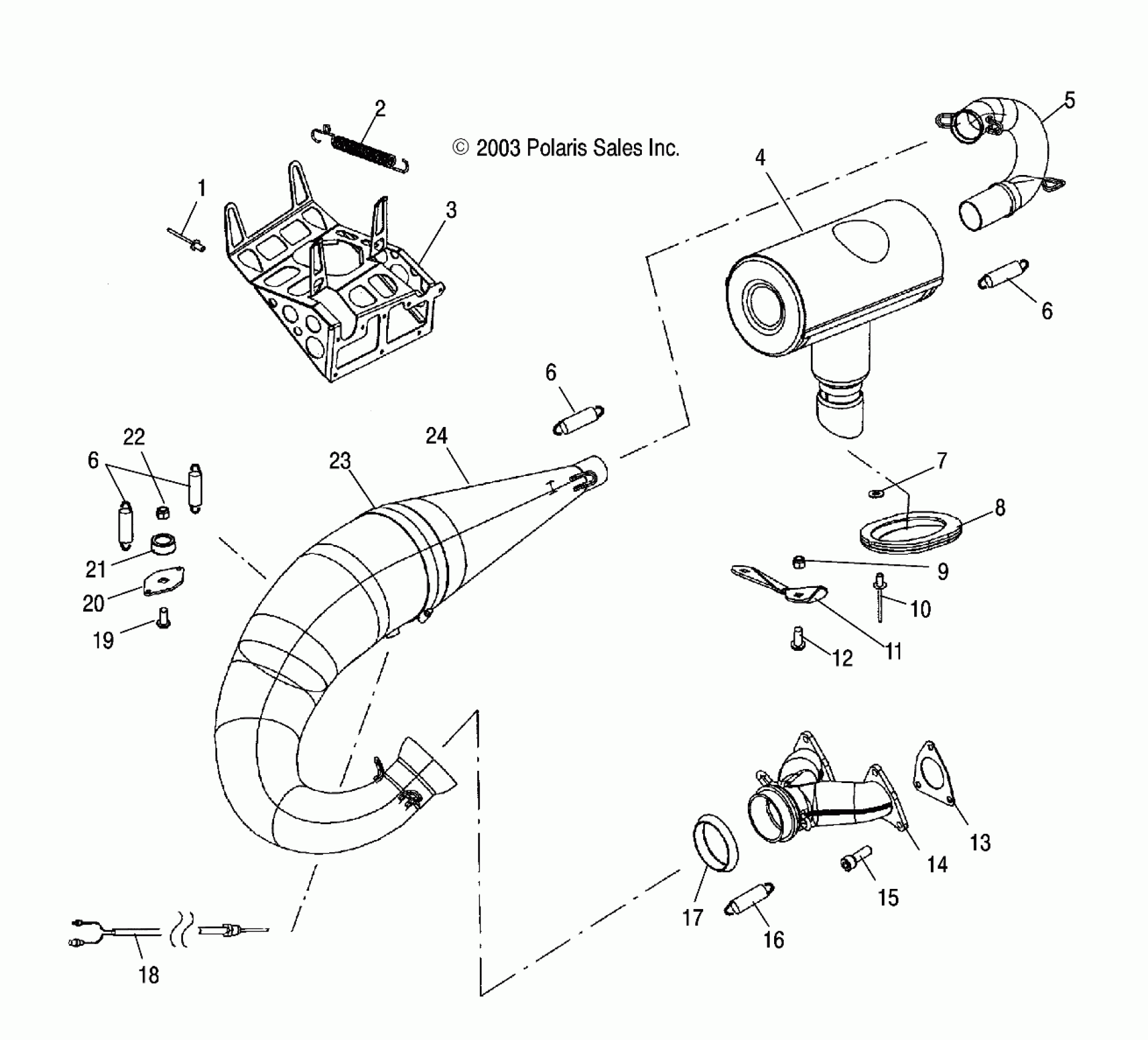

Polaris 440 PRO XR - S04NX4CS EXHAUST SYSTEM - S04NX4CS/CE (4988778877C07) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Spring, Resonator

7081061

$31.99

3

Bracket, Chassis/Resonator

5245992-029

Unavailable

4

Resonator

1261173-029

$294.27

5

U-Tube

1261201-029

$53.59

6

SPRING-EXHAUST

7041687

$5.65

6

SPRING-EXHAUST

7041687

$5.65

6

SPRING-EXHAUST

7041687

$5.65

7

Washer

7555904

$1.49

8

Boot, Exhaust/Outlet

5412151

Unavailable

9

Nut, Flange

7542321

$1.49

10

RIVET

7621467

$1.49

11

Deflector, Exhaust

5243929

$24.27

12

Bolt

7512394

Unavailable

13

Gasket, Exhaust

5812245

Unavailable

14

Manifold

1261216-029

$173.59

15

Screw

7517322

$2.39

16

Spring, Exhaust

7042332

$4.84

17

SEAL, EXHAUST, SOCKET

3610046

$36.41

18

Sensor, Exhaust Temperature

4010528

Unavailable

19

Bolt, Carriage

7512377

$4.79

20

Plate, Exhaust Spring

5246123

Unavailable

21

Dampener, Vibrations

5433576

$11.99

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

Clamp, Worm Drive

7080808

Unavailable

23

Band, Tuned Pipe

5830231

Unavailable

24

Asm., Tuned Pipe

1261195

$539.99
