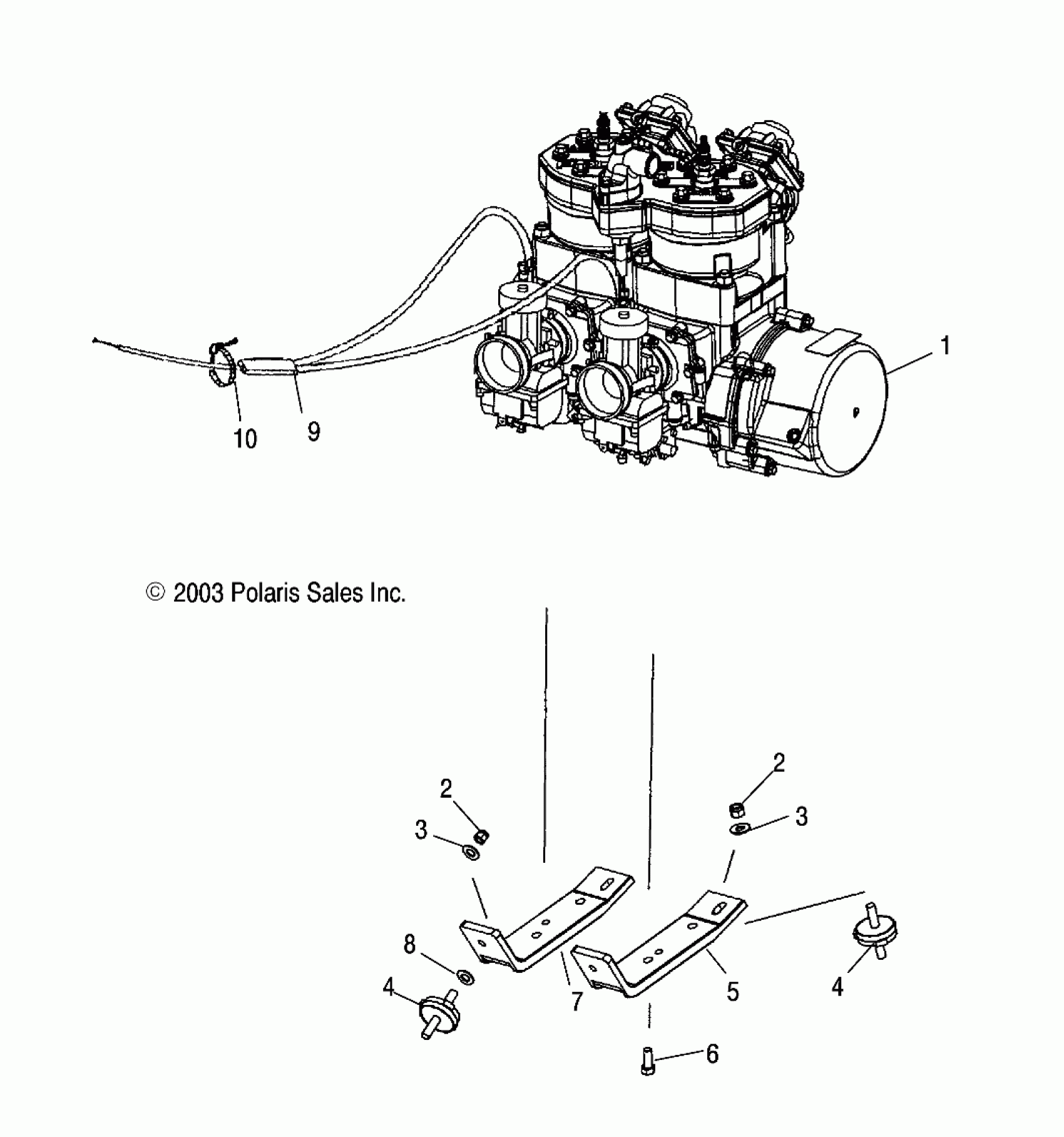

Polaris 440 PRO XR - S04NX4CS ENGINE MOUNTING - S04NX4CS/CE (4988778877C05) Diagram

#

Description

Price

1

Engine, Short Block [S44-44-04] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requi

2202687

Unavailable

2

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

2

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

3

Washer, Flat

7555893

$1.49

3

Washer, Flat

7555893

$1.49

4

Mount, Engine, 3 Tab

3021244

Unavailable

4

Mount, Engine, 3 Tab

3021244

Unavailable

5

Strap, Engine Mount, RH

5245271

$78.39

6

Screw

7517399

$8.99

7

Strap, Engine Mount, LH

5245270

$78.39

8

Washer, Flat

7555915

$3.19

9

Cable, Throttle

7081031

Unavailable

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
