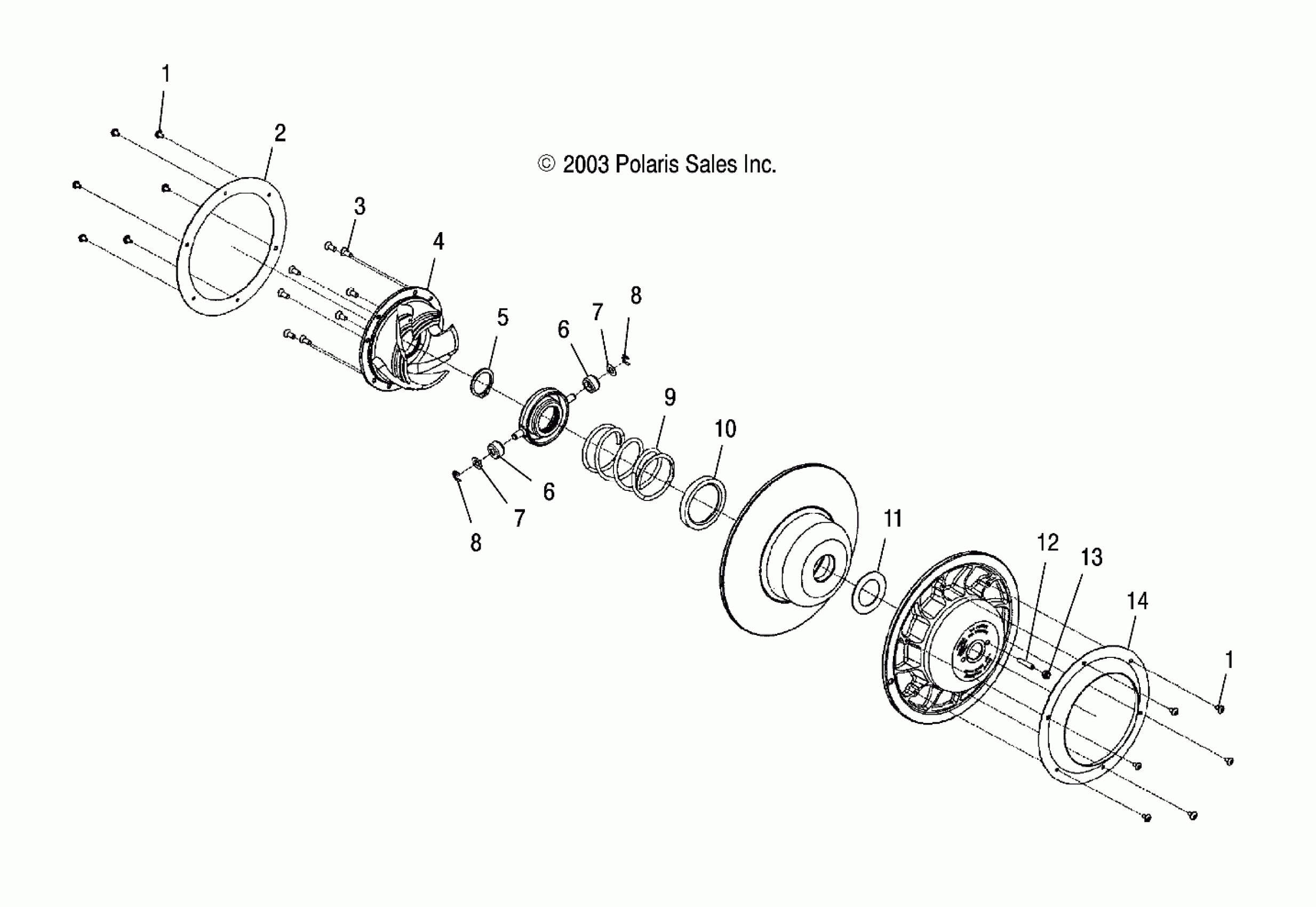

Polaris 440 PRO XR - S04NX4CS DRIVEN CLUTCH - S04NX4CS/CE (4988778877C01) Diagram

#

Description
Price

-

Asm., Driven Clutch, 211 [Incl. 1,3,5-8,10-13]

1322321

Unavailable

1

Screw

7518023

$4.03

1

Screw

7518023

$4.03

2

Plate, Windage

5246216

$20.48

3

Screw

3233996

Unavailable

4

Ramp, Driven

5133721

$130.95

5

RING, RETAINING

7710522

$13.59

6

ROLLER

5434534

$48.56

6

ROLLER

5434534

$48.56

7

WASHER, THRUST

7556226

$5.65

7

WASHER, THRUST

7556226

$5.65

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

8

RET.E-RING-E T.375-TEAM#130059

7710523

$3.49

9

Spring, Driven Clutch

7043057

$48.56

10

WASHER, THRUST

7556227

$23.99

11

Spacer

7556225

$6.59

12

Screw

7518024

Unavailable

13

Nut, FLEXLOC

7542103

$5.59

14

Plate, Windage

5246217

Unavailable
