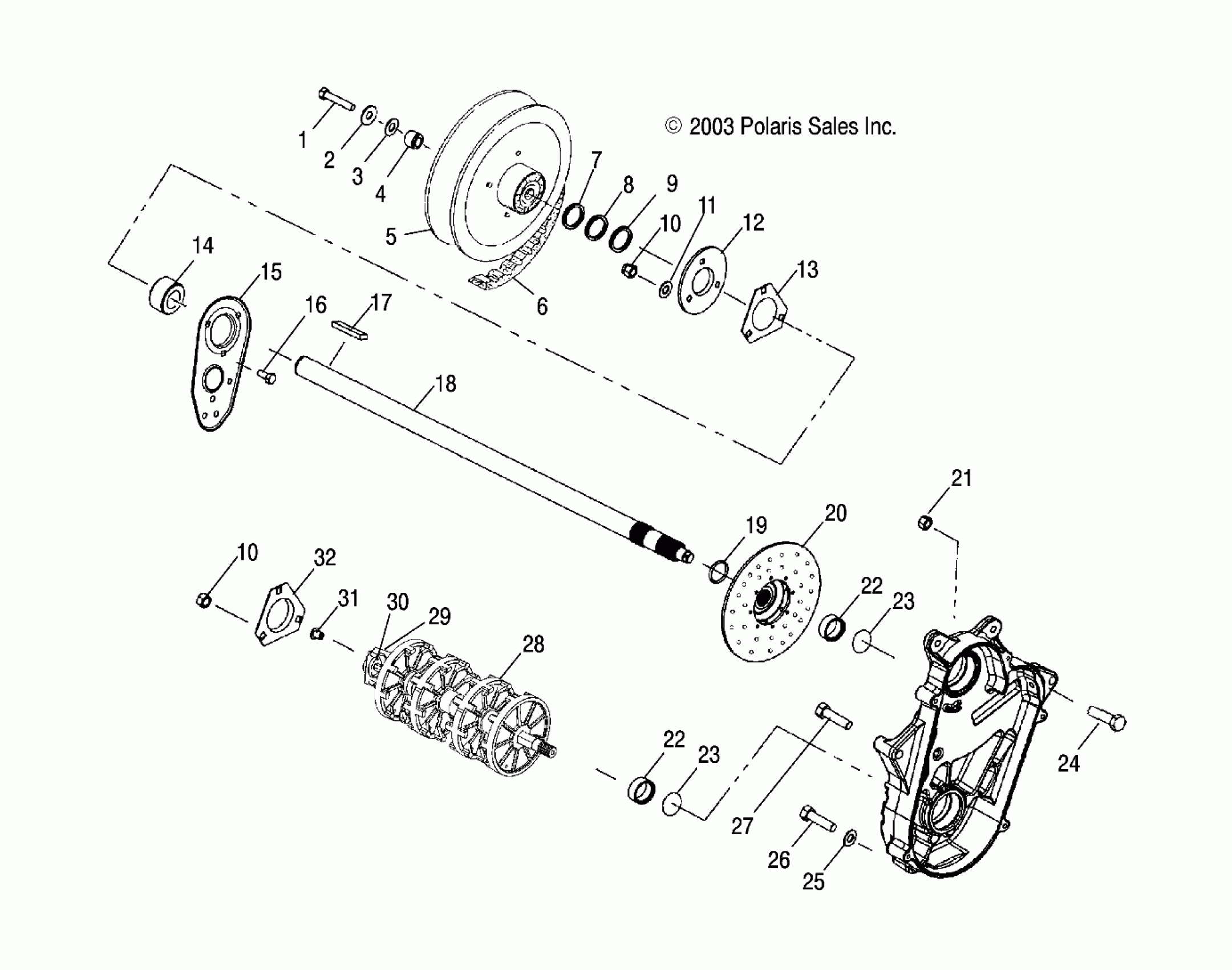

Polaris 440 PRO XR - S04NX4CS DRIVE TRAIN - S04NX4CS/CE (4988778877B09) Diagram

#

Description
Price

1

Bolt

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5133106

Unavailable

5

ASM., DRIVEN CLUTCH, 209 W/B [SEE DRIVEN CLUTCH PG. C1 FOR DETAILS]

-------

Unavailable

6

Belt, Drive

3211080

$139.99

7

WASHER

7555917

Unavailable

8

Bushing

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

Flangette w/Grease Zerk

5241359

$32.37

13

Gasket, Jackshaft

5811095

$2.41

14

Bearing, Jackshaft

3514519

$64.99

15

Flangette, Jackshaft Reinforcement

5245889-067

Unavailable

16

Bolt, Carriage

7512377

$4.79

17

Key

7721116

$12.94

18

Asm., Jackshaft [Incl. 19]

1332267

Unavailable

19

RING, RETAINING

7710422

$3.99

20

Asm., Disc, Brake, Vented

1910197

Unavailable

21

Nut, Flange

7542423

$3.99

22

SLEEVE, SEAL

5020588

$23.99

22

SLEEVE, SEAL

5020588

$23.99

23

O-RING

5410613

$1.99

23

O-RING

5410613

$1.99

24

Bolt, Carriage

7515428

$4.79

25

Washer

7558403

$4.79

26

Screw

7512492

$1.49

27

Bolt

7515485

$3.03

28

Asm., Drive Shaft [Incl. 29-31]

1590386

$409.51

29

ASM., FLANGETTE W/SCREWS

1012945

$114.99

30

BEARING

3514525

$31.99

31

Bushing, Speedometer, Metal

3280019

$11.99

32

Flangette, Offset, w/Hole

5243529

$13.75
