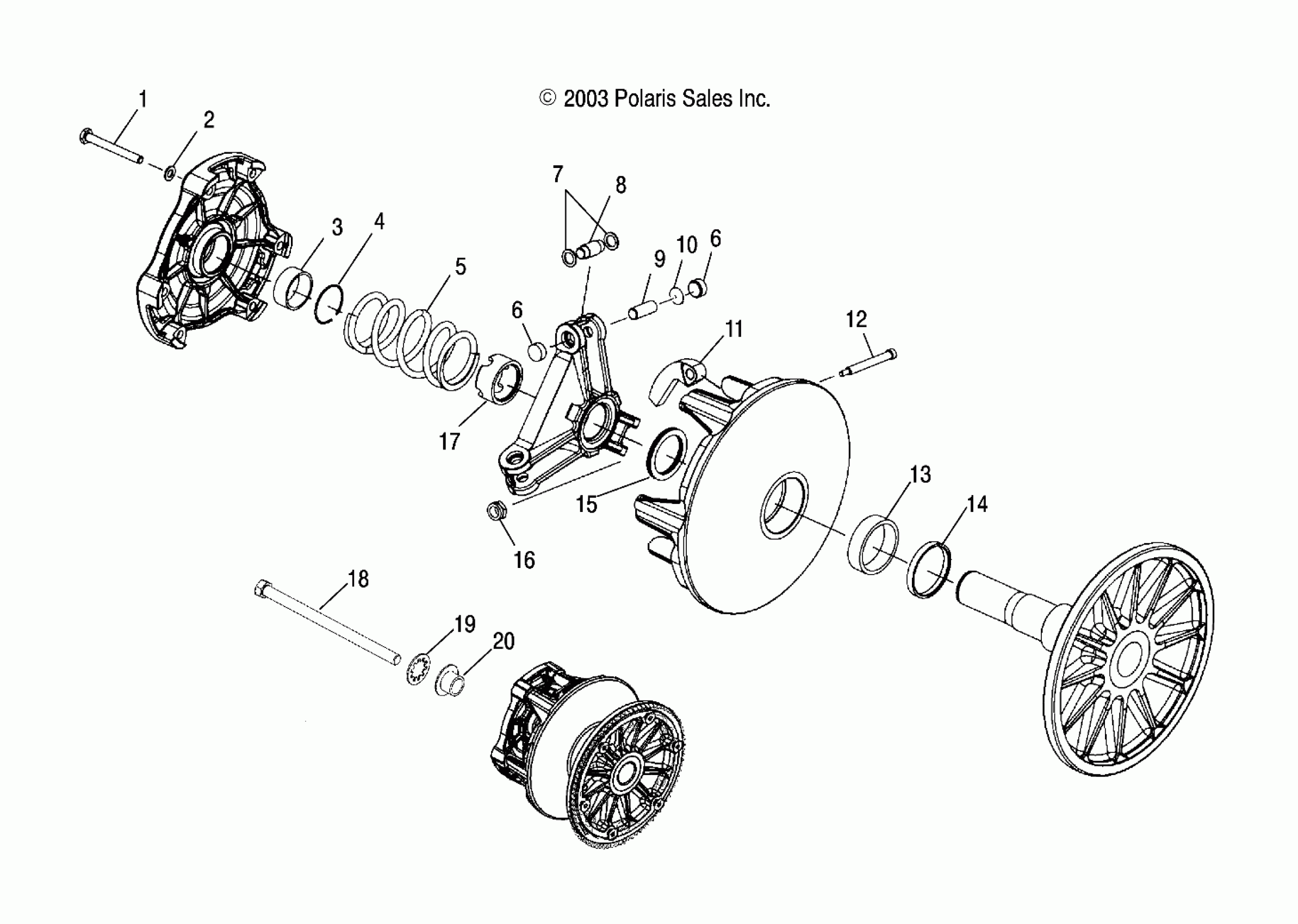

Polaris 440 PRO XR - S04NX4CS DRIVE CLUTCH - S04NX4CS/CE (4988778877B14) Diagram

#

Description
Price

-

Asm., Drive Clutch, Basic 132 [Incl. All Less 5,11]

1322409

$509.99

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch Drive, Almond/Red

7041988

$56.65

6

BUTTON, GUIDE

5430445

$6.39

6

BUTTON, GUIDE

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

PIN, ROLLER

5133079

$6.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

Asm., Weight/Bushing, S-51H [High Octane]

1321731

Unavailable

11

Asm., Weight/Bushing, S-49H [92 Octane Head Kit]

1321730

$49.99

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

SPACER, .050

5210754

Unavailable

15

SPACER, .025

5242981

Unavailable

15

SPACER, .020

5210752

Unavailable

15

SPACER, .032

5210753

Unavailable

16

NUT, FLEXLOC

7541906

$3.19

17

NUT-JAM

5020425

$23.99

18

Screw

7517501

Unavailable

19

WASHER

7556003

$6.39

20

WASHER, CLUTCH RETAINER

5131872

Unavailable
