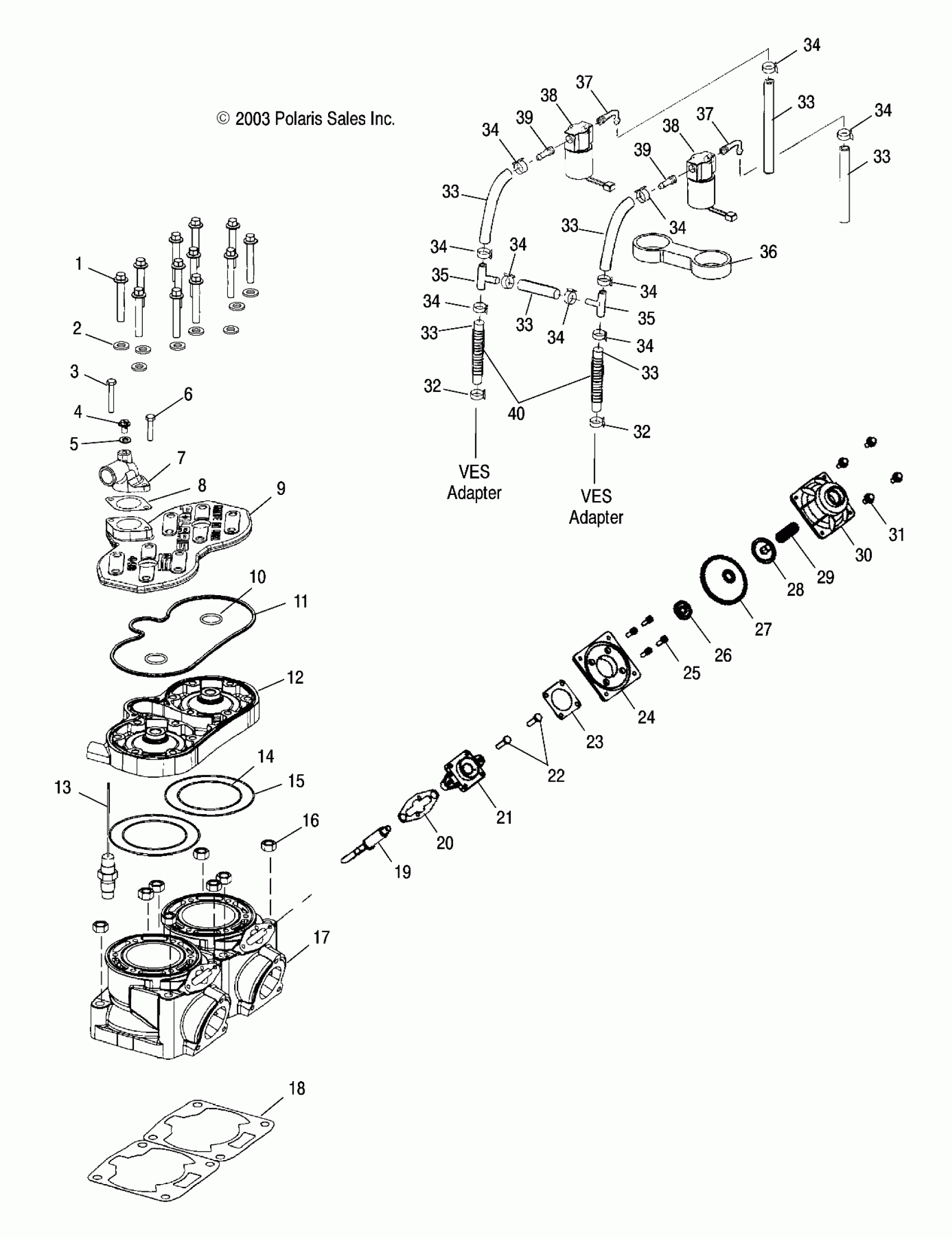

Polaris 440 PRO XR - S04NX4CS CYLINDER - S04NX4CS/CE (4988778877C11) Diagram

#

Description
Price

1

SCREW

7517281

$8.99

2

Washer

7556082

$7.19

3

SCREW

7516818

$5.59

4

SCREW

7517679

$13.59

5

WASHER, FLAT

7555998

$1.49

6

SCREW

7516822

$2.39

7

Cover, Thermostat

5631391

Unavailable

8

Gasket, Thermostat Cover

5830159

$20.22

9

Cover, Head

5631539-366

Unavailable

10

O-RING

5411411

$1.49

11

Seal

5411465

$32.37

12

Kit, 92 Octane Cylinder Head [Incl., 8,10,11,14,15 and Clutch Weights]

2202188

$236.17

12

Head, Cylinder [High Octane]

3021299

$236.17

13

Sensor, Temperature

4010398

$36.41

14

O-Ring

5411199

$10.51

15

O-RING

5411359

$15.99

16

NUT

7547013

$1.99

17

Cylinder

3021304

Unavailable

18

Gasket, Cylinder Base

5811599

$34.99

19

Asm., Guillotine

1202159

$119.05

20

Gasket

5812087

$9.99

21

Asm., Housing w/Bushing

1201919

Unavailable

22

Screw

7516823

$3.19

23

Gasket, Housing

5433375

Unavailable

24

Asm., Adapter

1202037

$60.99

25

Screw

7517314

Unavailable

26

Valve, Guillotine

5132690

$179.99

27

Bellows, Fabric

5412399

$44.51

28

Cap/Nut, Exhaust Valve

5631381

$33.87

29

Spring, Comp

7041786-01

$15.67

30

ASM., HOUSING W/BUSHING

1202640

$15.99

31

SCREW

7516820

$5.59

32

HOSE CLAMP, RED

7080003

$1.49

32

HOSE CLAMP, RED

7080003

$1.49

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

33

Hose

8450040-600

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

T-Fitting

7052075

$9.59

35

T-Fitting

7052075

$9.59

36

Retainer, Solenoid

5412092

$35.99

37

FITTING, 90 DEGREE

7052065

$7.19

37

FITTING, 90 DEGREE

7052065

$7.19

38

Valve, Control

4010305

$119.99

38

Valve, Control

4010305

$119.99

39

Fitting

7052099

$4.79

39

Fitting

7052099

$4.79

40

TUBING, CONVOLUTED

8360052-30

$6.39
