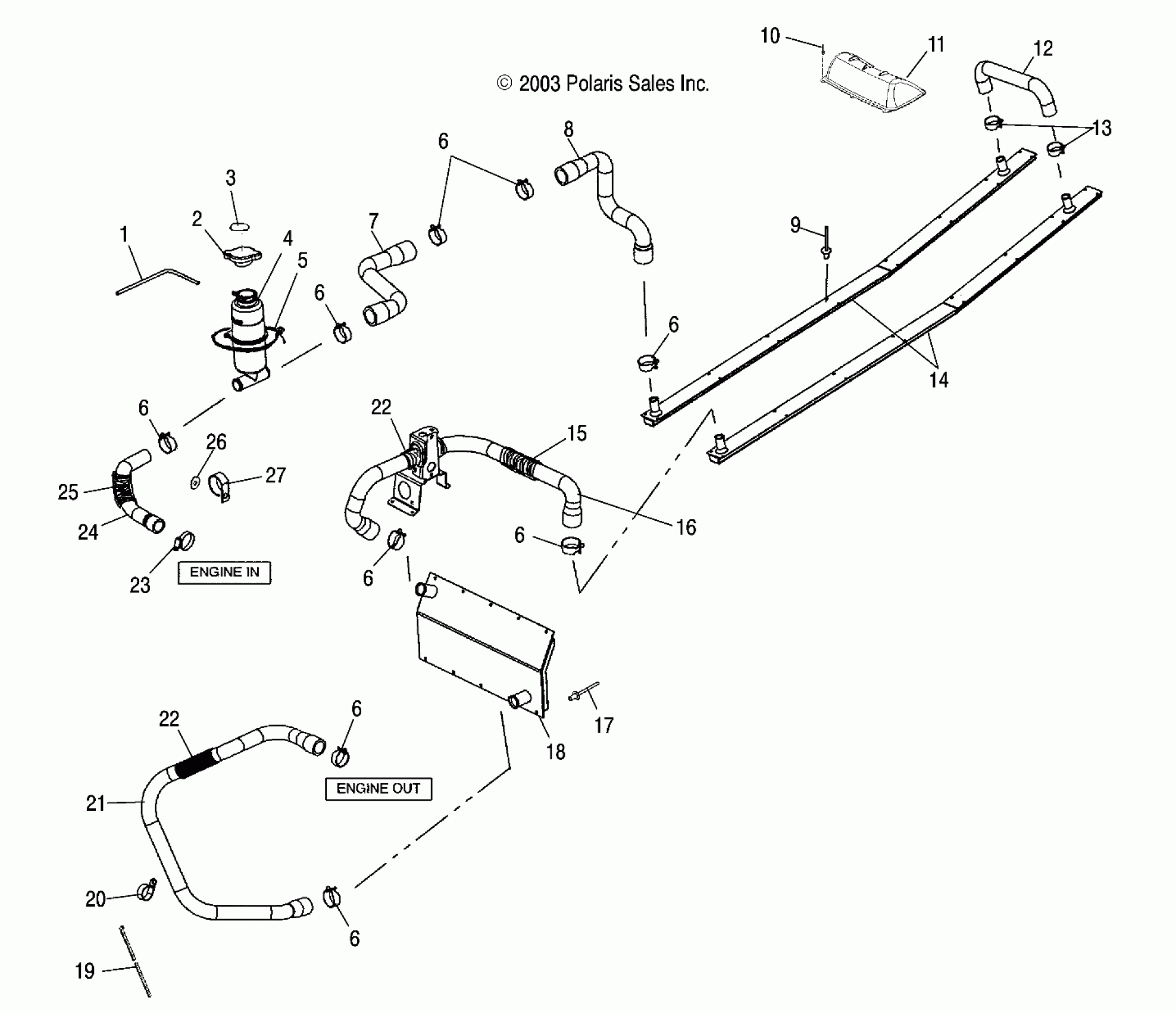

Polaris 440 PRO XR - S04NX4CS COOLING SYSTEM - S04NX4CS/CE (4988778877B07) Diagram

#

Description
Price

1

Line, Fuel

8450003-1525

$84.99

2

Cap, Pressure

2511270

$24.27

3

DECAL, WATER BOTTLE CAP

7170063

$4.03

4

Bottle, Coolant

2520312

$48.56

5

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

6

CLAMP, SPRINGBAND

7080844

$10.39

6

CLAMP, SPRINGBAND

7080844

$10.39

6

CLAMP, SPRINGBAND

7080844

$10.39

6

CLAMP, SPRINGBAND

7080844

$10.39

6

CLAMP, SPRINGBAND

7080844

$10.39

6

CLAMP, SPRINGBAND

7080844

$10.39

6

CLAMP, SPRINGBAND

7080844

$10.39

6

CLAMP, SPRINGBAND

7080844

$10.39

7

Hose, Brake Out/Bottle In

5412219

Unavailable

8

Hose, Strip Cooler/Brake

5411852

Unavailable

9

Rivet

7621432

$1.49

10

RIVET

7621472

$1.49

11

Cover, Hose Protector

5434887

Unavailable

12

Hose, Crossover, Wear Strip

5411854

$48.56

13

Clamp, Springband

7080843

$3.99

14

Strip, Wear

1240127

$354.99

15

TUBING, CONVOLUTED

5521324

$9.70

16

Hose, Center Out/Strip In

5412226

$49.59

17

RIVET-3/16-.090-.290

7661637

$1.49

18

Cooler, Bulkhead

2520232

Unavailable

19

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

20

Clamp, Hose

7080585

$3.99

21

Hose, Engine Out/Center Cool In

5412051

Unavailable

22

Tubing, Convoluted

5521242

Unavailable

22

Tubing, Convoluted

5521242

Unavailable

23

CLAMP-HOSE, 1.750-SS

7080560

$11.19

24

Hose, Bottle to Pump

5412052

$48.56

25

Conduit, Flex

5521287-08

Unavailable

26

Washer, Flat

7555859

$1.49

27

Clamp, Coated Hose

7080951

$13.19
