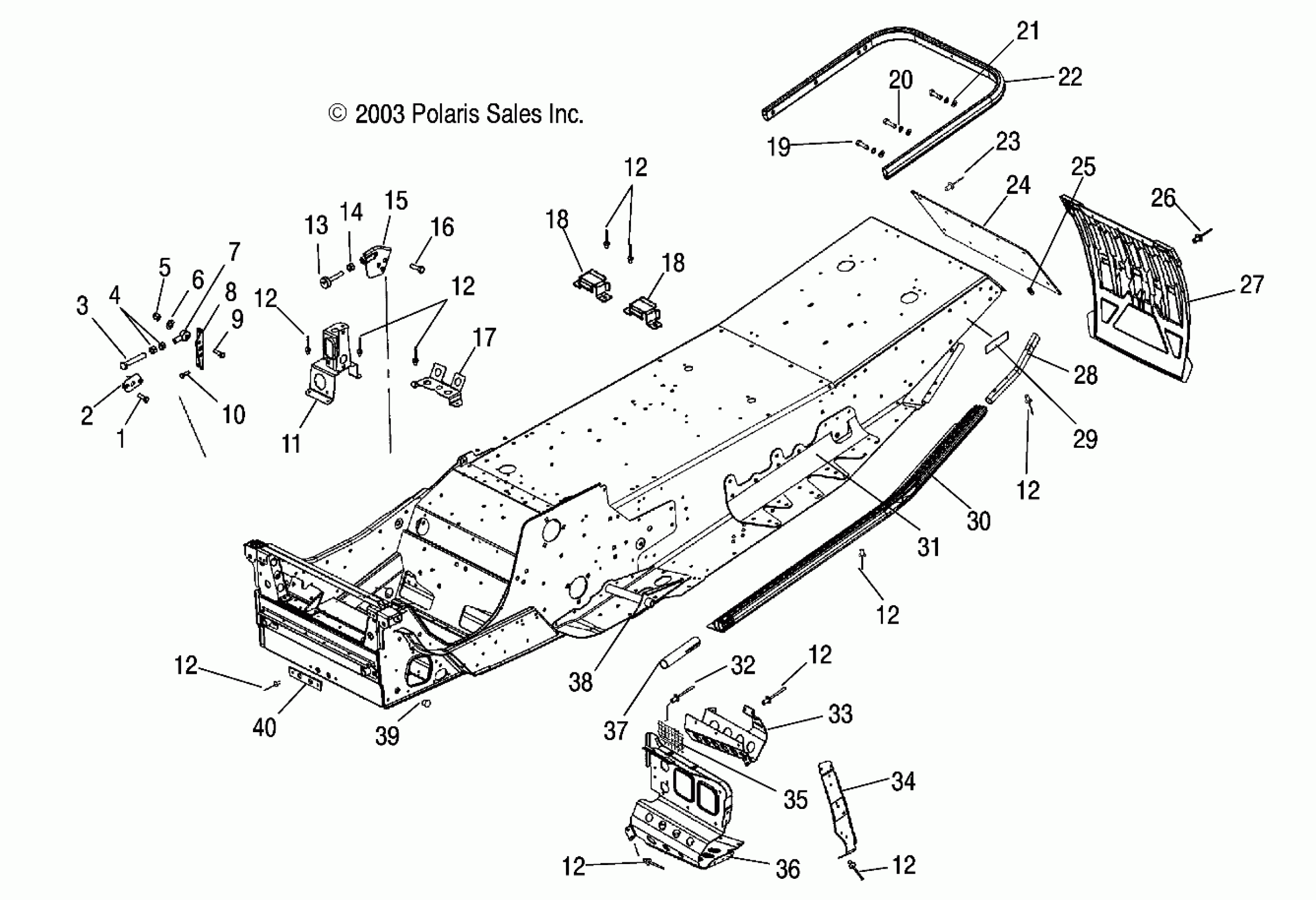

Polaris 440 PRO XR - S04NX4CS CHASSIS - S04NX4CS/CE (4988778877A03) Diagram

#

Description
Price

-

Asm., Chassis

1014558-309

$1,259.99

1

SCREW

7517632

$5.59

2

Bracket, Torque Stop, Front

1013777

$41.59

3

Screw

7518061

Unavailable

4

Nut, Hex

7542401

$2.39

5

Nut, Nylok

7542439

$1.49

6

WASHER

7555823

$3.99

7

Limiter, Torque

3021411

$93.08

8

Bracket, Torque Limiter

5246537

$23.99

9

Bolt

7512404

$3.99

10

Asm., Screw and Washer

7516730

$6.39

11

Bracket, CDI

5245802

$19.83

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

12

RIVET-3/16-.090-.290

7661637

$1.49

13

Stop, Torque, Course

3021104

$20.22

14

NUT

7542404

$1.59

15

Stop, Torque

1013458

Unavailable

16

Screw

7517854

$5.59

17

Bracket, Mount, Airbox

5245398

$22.23

18

Bracket, Seat Holddown

5245995

Unavailable

18

Bracket, Seat Holddown

5245995

Unavailable

19

BOLT

7512240

$3.99

20

WASHER, SPRING LOCK

7552801

$1.59

21

Washer, Flat

7558301

$1.49

22

Asm., Bumper, Rear

2632165-309

Unavailable

23

RIVET

7621467

$1.49

24

Extension, Snow Flap

5435492

$13.99

25

Washer

7555904

$1.49

26

RIVET

7621472

$1.49

27

Flap, Snow, Black w/White

5434356-1038

Unavailable

28

Tube, Tunnel Reinforcement, Rear

5245432

Unavailable

29

ASM., REFLECTOR, RED

2670133

$5.75

30

Grip, Tunnel, LH

5133971

$45.59

30

Grip, Tunnel, RH

5133972

$45.59

31

Brace, Tunnel, Fishbone LH

5247750

$45.59

31

Brace, Tunnel, Fishbone RH

5247751

$45.59

32

Rivet

7621470

$3.17

33

Toe Clip

5247958

$28.63

34

Support, Footrest, LH

5247676

Unavailable

34

Support, Footrest, RH

5247677

$82.39

35

Screen, Console

5246397

$19.03

36

Asm., Footrest, Screen, LH

1014564

Unavailable

36

Footrest, RH

5247675

Unavailable

37

Tube, Tunnel Reinforcement, Front

5245431

$10.32

38

Mount, Trailing Arm, LH

1014559

$236.99

38

Mount, Trailing Arm, RH

1014560

$226.99

39

PLUG, HOLE

7080416

$5.65

40

Plate, Inner Radius Rod, Lower

5245307

$7.43
