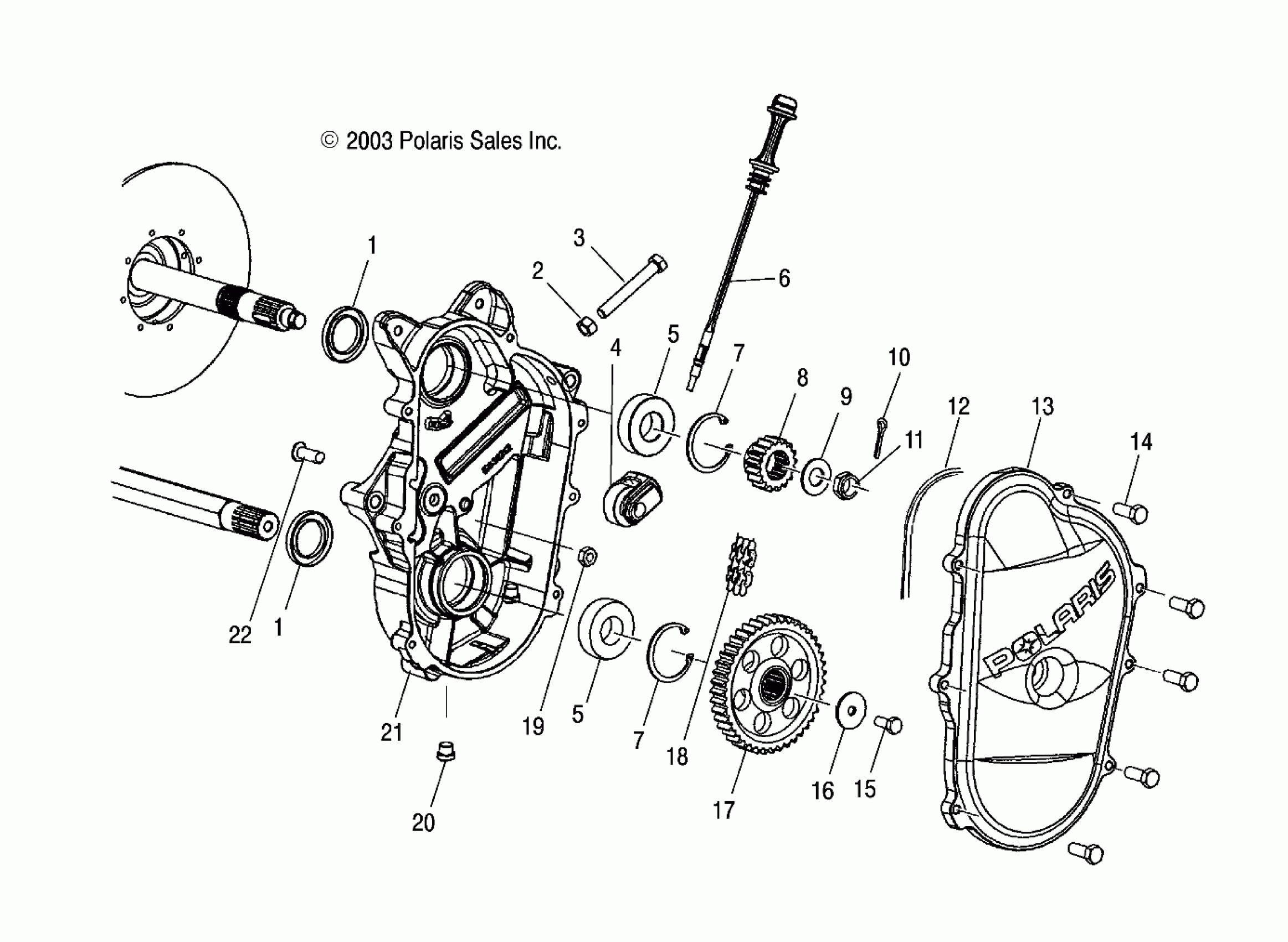

Polaris 440 PRO XR - S04NX4CS CHAINCASE - S04NX4CS/CE (4988778877B08) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

ASM., TIGHTENER, SLIDING

1332266

$74.99

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

O-RING

5410675

$1.60

6

ASM., DIPSTICK

1332143

$54.99

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

Sprocket, 19T, 7/8W

3221165

$82.99

9

Washer, Spring

7571620

$7.19

10

Pin, Cotter

7661203

$1.49

11

Nut

7547202

$5.59

12

Gasket, O-Ring

5411497

$20.22

13

COVER, CHAINCASE

5631354

$114.99

14

SCREW

7512242

$2.39

15

Screw

7517979

$3.99

16

Washer, Spring

7571618

$6.39

17

Sprocket, 43T, 3/4W

2900016

Unavailable

18

Chain, 74P, 7/8W

3221172

Unavailable

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5134260

$299.99

22

Screw, Carriage

7515477

$34.99
