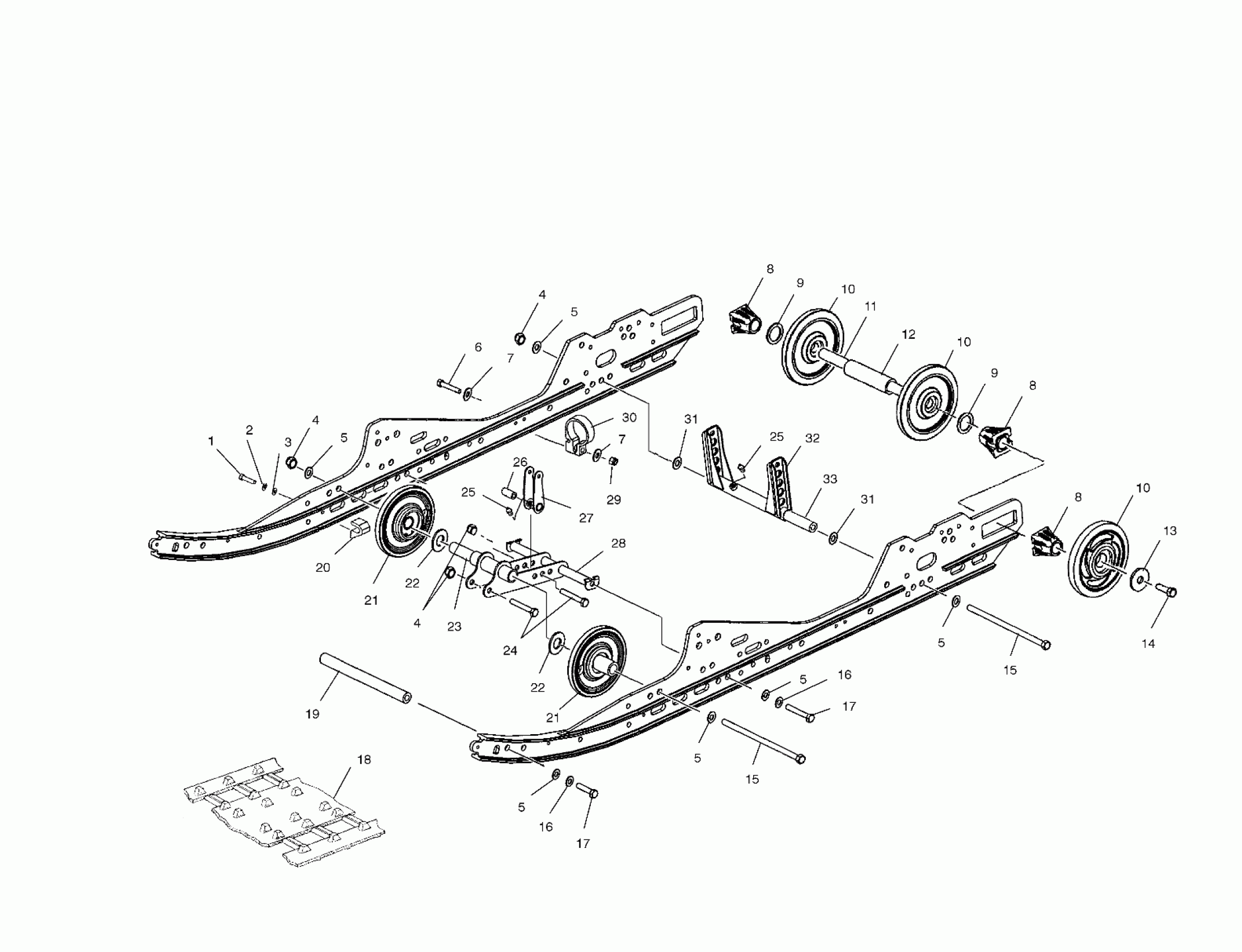

Polaris 440 PRO X - S02NX4CS SUSPENSION - S02NX4CS (4977017701B10) Diagram

#

Description
Price

1

Screw

7512014

$3.59

2

Washer, Lock

7552615

$4.99

3

Washer, Flat

7555783

$3.99

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

5

Washer, Flat

7555806

$1.49

6

BOLT

7515319

$4.79

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

SPACER-IDLER

5432535

$11.99

8

SPACER-IDLER

5432535

$11.99

8

SPACER-IDLER

5432535

$11.99

9

BUSHING

7555918

$1.59

9

BUSHING

7555918

$1.59

10

RING-RETAINING

7710444

$8.79

10

ASM., WHEEL

1594087

$72.84

10

Bearing

3514012

Unavailable

10

RING-RETAINING

7710444

$8.79

10

ASM., WHEEL

1594087

$72.84

10

Bearing

3514012

Unavailable

10

RING-RETAINING

7710444

$8.79

10

ASM., WHEEL

1594087

$72.84

10

Bearing

3514012

Unavailable

11

Shaft, Idler

5132066

$43.99

12

SPACER-IDLER, CENTER

5333283

$19.99

13

WASHER

7556130

$6.39

14

BOLT

7517731

$1.49

15

SCREW

7517921

$23.99

15

SCREW

7517921

$23.99

16

Washer, Spring Lock

7552603

$1.49

16

Washer, Spring Lock

7552603

$1.49

17

Screw

7517247

$3.19

17

Screw

7517247

$3.19

18

CLIP, GUIDE

5222840

Unavailable

18

Track

5412197

$871.99

19

Shaft, Pivot Arm

5020723

$29.99

20

Clamp, Hose

5132997

$13.19

21

Asm., Wheel

1541642

$48.56

21

Asm., Wheel

1541642

$48.56

22

Bushing

7556301

$3.19

22

Bushing

7556301

$3.19

23

Shaft

5133232

$28.32

24

SCREW

7515417

$4.79

25

FITTING-LUBRICATION 1/4-28

7080424

$4.79

25

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

Bushing

5133233

$11.99

27

Arm, Shock Pivot

1541638-067

$49.59

28

Mount, Shock

1541711-067

$109.99

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

CLAMP, RESERVOIR

5132832

$23.99

31

Washer, Flat

7555893

$1.49

31

Washer, Flat

7555893

$1.49

32

Arm, Pivot, Rear

1541713-067

$254.99

33

SHAFT

5334026

$28.32
