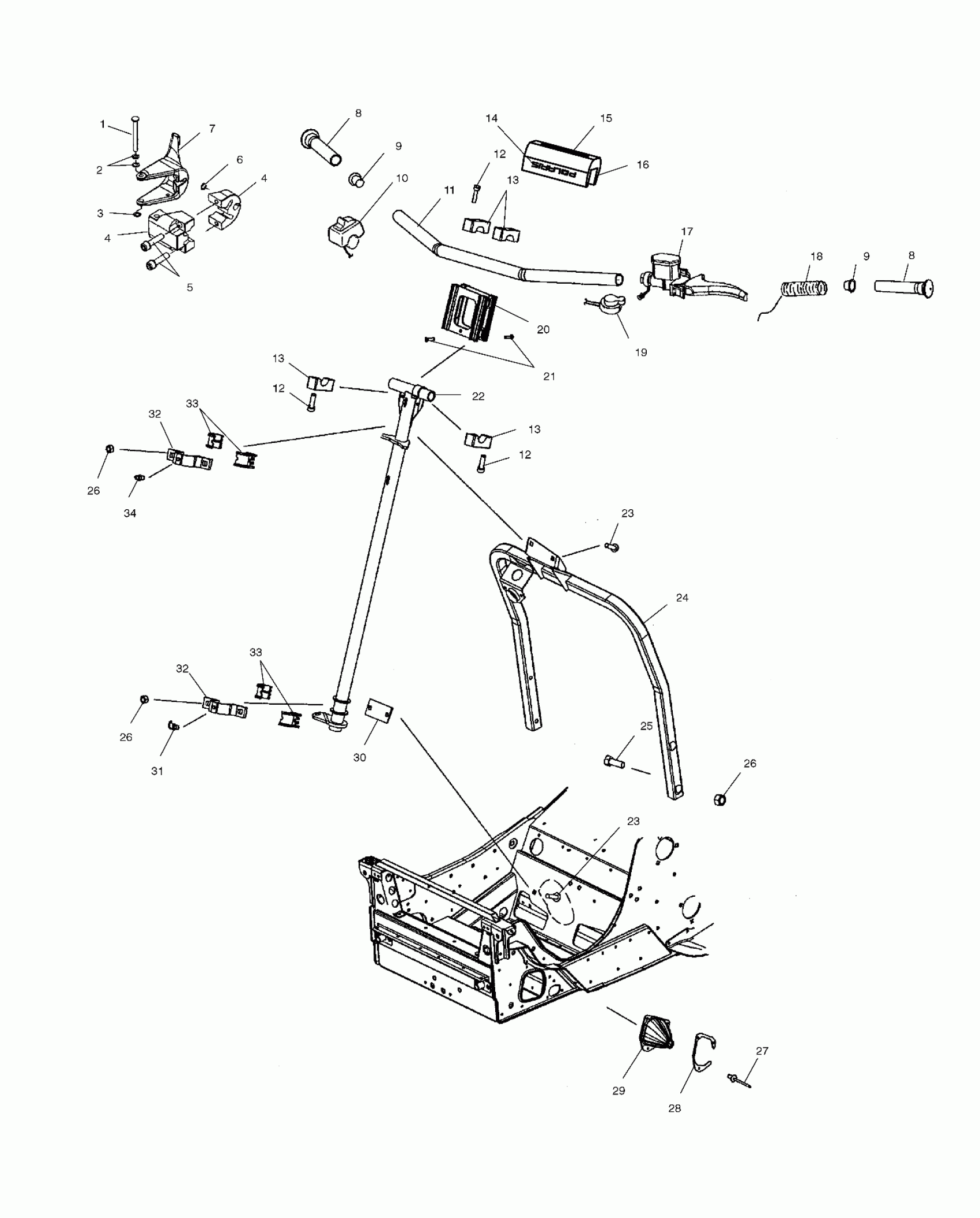

Polaris 440 PRO X - S02NX4CS STEERING/HANDLEBAR - S02NX4CS (4977017701B03) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

WASHER

7555730

$3.99

3

RING-RETAINING EXTERNAL

7710401

$3.99

4

Block, Throttle, Rear

5132965

$82.99

4

Block, Throttle, Front

5132966

$62.18

4

Block, Throttle, Rear

5132965

$82.99

4

Block, Throttle, Front

5132966

$62.18

5

SCREW

7512290

$4.79

6

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

7

LEVER, THROTTLE

5432970

$29.03

7

Lever Heater, HI/LO

2010171

$84.98

7

Asm., Throttle Control

2010208

Unavailable

8

Grip, Handlebar

5432634

$24.27

8

Grip, Handlebar

5432634

$24.27

9

PLUG, OVERFLOW

5431096

$2.02

9

PLUG, OVERFLOW

5431096

$2.02

10

SWITCH, AUXILIARY SHUT OFF

4110101

$60.70

11

Handlebar

5246007-067

Unavailable

12

Screw

7518004

$2.63

12

Screw

7518004

$2.63

12

Screw

7518004

$2.63

13

Clamp, Handlebar

5133297

$12.70

13

Clamp, Handlebar

5133297

$12.70

13

Clamp, Handlebar

5133297

$12.70

14

Kit, Decal Application Solution

2200891

Unavailable

14

Decal, "POLARIS"

7170163

Unavailable

15

Cover, Handlebar

2682949

Unavailable

16

Pad, Handlebar

5812322

$49.99

17

ASM., MASTER CYLINDER [See Brake Pg. B1]

-------

Unavailable

18

Heater, Grip, HI/LO

2460311

$56.65

19

Switch, Dimmer

4110107

$60.70

20

Block, Riser

5133287

Unavailable

21

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

22

Post, Steering

1821193-067

Unavailable

23

BOLT, CARRIAGE

7512331

$3.99

24

Hoop, Steering

1013745-067

$82.39

25

Bolt, Carriage

7512377

$4.79

26

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

26

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

26

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

27

Rivet

7621433

$1.49

28

Plate, Tie Rod Boot

5244470

Unavailable

28

Plate, Tie Rod Boot

5244470

Unavailable

29

Boot, Tie Rod, LH

5433532

Unavailable

29

Boot, Tie Rod, RH

5433533

Unavailable

30

Shim

5132448

$16.47

31

Fitting, 90 Degree

7080510

$5.59

32

BRACKET, STEERING POST

5132967

$36.41

32

BRACKET, STEERING POST

5132967

$36.41

33

Bushing

5434167

Unavailable

33

Bushing

5434167

Unavailable

34

FITTING-LUBRICATION 1/4-28

7080424

$4.79
