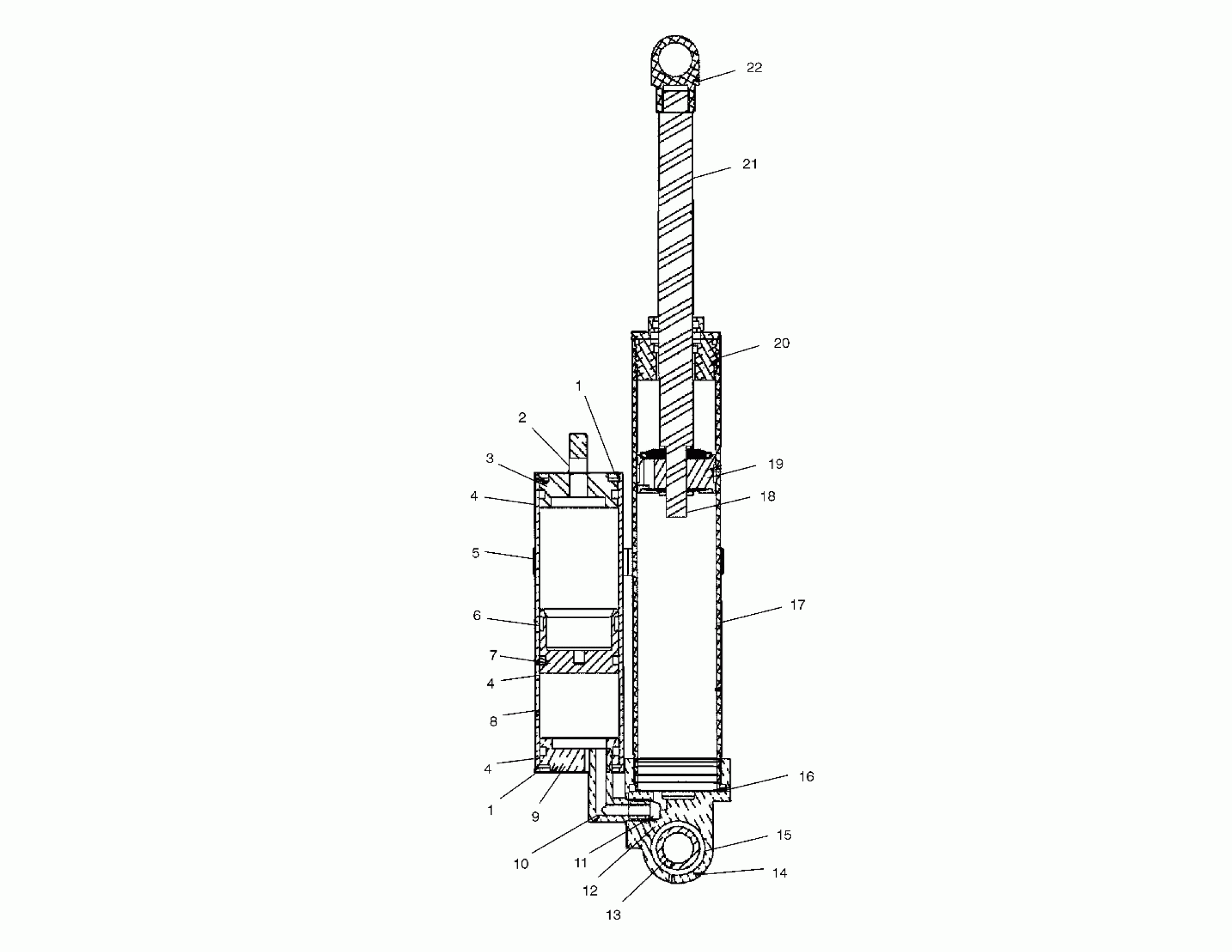

Polaris 440 PRO X - S02NX4CS SHOCK (REAR TRACK)(WALKER EVANS) - S02NX4CS (4977017701C03) Diagram

#

Description
Price

-

Shock, Rear Track, WALKER EVANS

7042071

$484.99

1

Ring, Snap

1800019

$6.46

1

Ring, Snap

1800019

$6.46

2

Valve, Shrader

1800021

$43.99

3

Cap, End

1800018

$31.35

4

O-RING

1800028

$1.60

4

O-RING

1800028

$1.60

4

O-RING

1800028

$1.60

5

CLAMP, HOSE

1800022

$12.79

6

Band, Wear

1800029

Unavailable

7

Piston, Reservoir

1800016

$49.59

8

Body, Reservoir

1800025

$66.39

9

Fitting, 90 Degree

1800044

$39.59

10

Cap, End, Offset

1800020

$27.19

11

SCREW, BLEED

1800043

$5.59

12

O-Ring

1800042

$1.49

13

Sleeve

1700039

Unavailable

14

Loop, Body

1800003

$91.19

15

BUSHING

1800036

Unavailable

16

O-RING BODY LOOP

1800030

$2.02

17

Body, Shock

1800007

$78.39

18

NUT, CRIMP

1800031

$3.99

19

Band, Wear

1800026

Unavailable

19

WASHER

1800050

$3.99

19

Asm., Piston

1800008

$82.39

19

Washer, Aluminum

1800049

$3.19

20

O-Ring, External

1800027

$2.02

20

WIPER

1800034

$31.99

20

Seal, Shaft, U-Cup

1800035

Unavailable

20

O-Ring, Internal

1800037

$1.60

20

BUSHING

1800038

$12.79

20

Seal, Shaft

1800009

$44.79

21

Shaft

1800010

$99.21

22

Eyelet, Shaft

1800002

Unavailable
